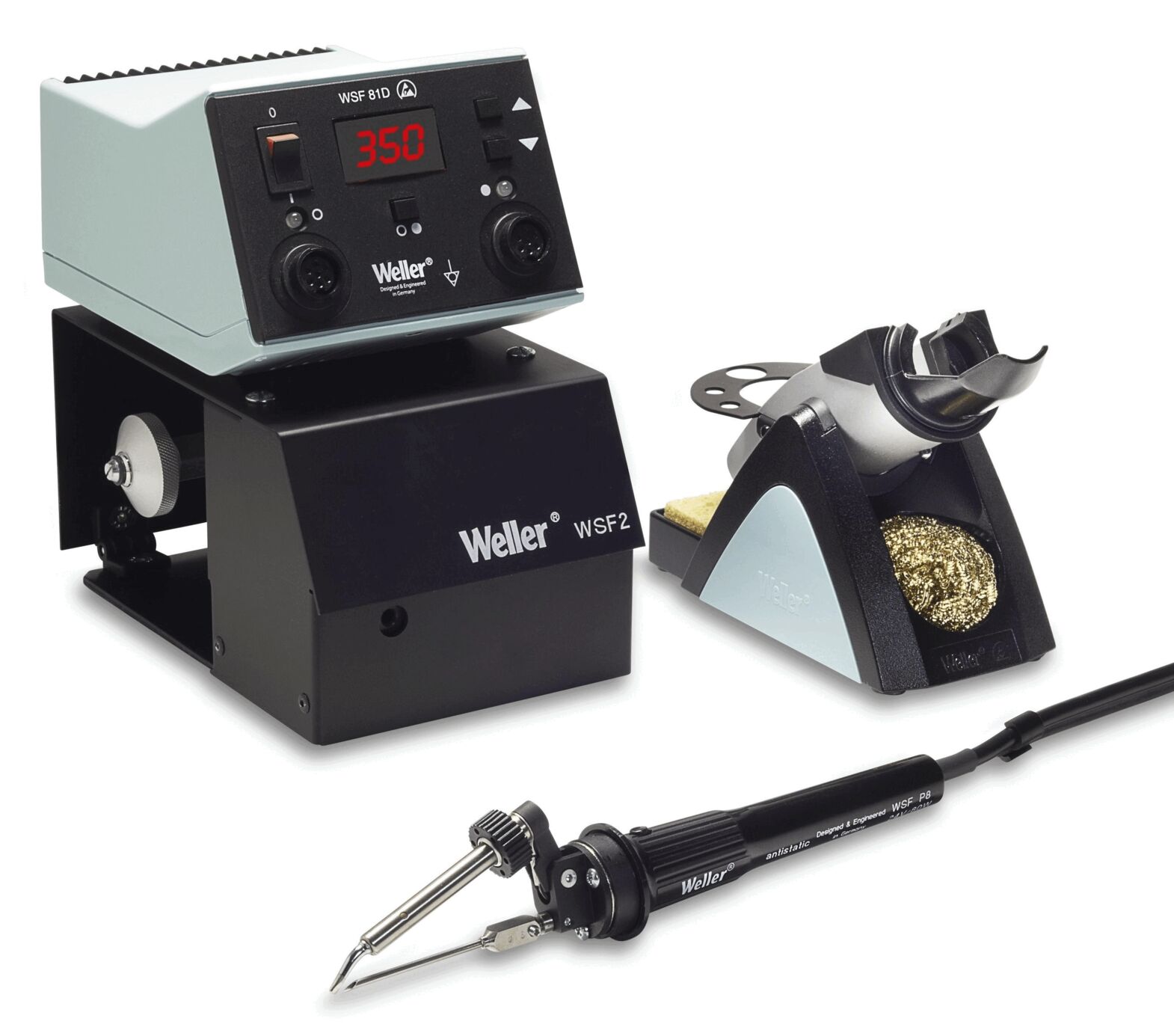

The image shows a soldering station with a digital temperature controller on top, a black base, and a soldering iron on the left side. On the right, there is a holder with cleaning wool.
WSF 81D8 soldering station with automatic solder feed
(Product No.: 528.226.99)
The image shows a soldering station with a digital temperature controller on top, a black base, and a soldering iron on the left side. On the right, there is a holder with cleaning wool.
Notice

WSF 81D8 soldering station with automatic solder feed

WSF 81D8 soldering station with automatic solder feed

dpvlink:
3822
Width :
217 mm
Height :
199 mm
Length :
120 mm
Power:
90 W
Temperature range:
50 - 450 °C
Properties:
Further product information

1,790.90 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WSF 81D8 soldering station with automatic solder feed

The Weller WSF 81D8 is a soldering station with an automatic solder feed system, specifically designed for precise and efficient soldering in industrial and professional applications. It is a powerful solution for demanding soldering tasks where consistent solder supply and high process reliability are required.

  • Suitable for solder wire diameters from 0.8 to 1.5 mm. Adjustment to the respective wire diameter is automatic.
  • Automatic solder feed with two operating modes: automatic and continuous solder supply (easy mode switch by adjusting the operating mode and the heating element)
  • Control of the feed mechanism as well as temperature regulation is done via the power supply unit
  • Feed unit with integrated tin roll holder (for rolls weighing up to 1 kg)





Width
Width
217 mm
Height
Height
199 mm
Length
Length
120 mm
Power
Power
90 W
Temperature range
Temperature range
50 - 450 °C
Fuse
Fuse
T800mA
Voltage
Voltage
230 V
Control
Control
digital
Soldering wire
Soldering wire
0.8 - 1.5 mm
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
5 °C
Weight
Weight
2.1 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a conical, metallic object with a pointed shape. The surface shines silver, while the tip has a matte, gray color.
Soldering tip round LT AS
LT-AS soldering tip 1.6 mm

+++ suitable for lead-free solder +++
dpvlink
6825

6.45 CHF
The image displays a conical, metallically shiny object with a rounded tip. The lower half is gray, providing a matte contrast to the smooth, silver upper part.
Soldering tip chisel-shaped LT B
LT-B soldering tip 1.6 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
The image displays a conical, metallically shiny object with a rounded tip. The lower half is gray, providing a matte contrast to the smooth, silver upper part.
Soldering tip chisel-shaped LT B
LT-B soldering tip 2.4 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
The image displays a silver metallic object in a conical shape. It has a pointed, narrow tip and a wider, flat base. The object could be a pen or a tool.
Soldering tip round conical LT S
LT-S soldering tip 0.4 mm
+++ suitable for lead-free solder +++
dpvlink
6829

5.60 CHF
The image displays a silver metallic object in a conical shape. It has a pointed, narrow tip and a wider, flat base. The object could be a pen or a tool.
Soldering tip round conical LT S
LT-S soldering tip 0.4 mm / 0.8
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6829

6.45 CHF
The image displays a metallic cone with a sharp tip and a wider base. The surface is shiny and reflects light. It is a simple, elegant object.
Soldering tip chisel-shaped LT C
LT-C soldering tip 3.2 mm / 0.8 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.65 CHF
The image displays a metallic cone with a sharp tip and a wider base. The surface is shiny and reflects light. It is a simple, elegant object.
Soldering tip chisel-shaped LT C
LT-C soldering tip 3.2 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
The image shows a metallic pointed cone that is wider at the base and tapers towards the top. The surface is shiny and reflects light, giving it a smooth appearance.
XNT Soldering tip round sloped LT F
LT-F soldering tip 1.2 mm
+++ suitable for lead-free solder +++
dpvlink
6832

5.60 CHF
The image shows a metallic pointed cone that is wider at the base and tapers towards the top. The surface is shiny and reflects light, giving it a smooth appearance.
Soldering tip round sloped LT F
LT-F soldering tip 1.2 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6832

6.45 CHF
The image shows a metal pin with a pointed, angled front and a flat, round head. It is silver-colored and has a smooth surface that reflects light.
Soldering tip chisel-shaped LT D
LT-D soldering tip 4.6 mm / 0.8 mm chisel-shaped
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
The image shows a metal pin with a pointed, angled front and a flat, round head. It is silver-colored and has a smooth surface that reflects light.
Soldering tip chisel-shaped LT D
LT-D soldering tip 4.6 mm / 0.8 mm chisel-shaped
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
The image shows a conical metal pin with a rounded tip. It has a flat, wide head and a smooth, silver surface.
Solder deposit tip LT GW
LT-GW - soldering tip 2.3 mm / 3.2 mm
Gull Wing tip
+++ suitable for lead-free solder +++
dpvlink
6834

6.60 CHF
The image shows a conical metal pin with a rounded tip. It has a flat, wide head and a smooth, silver surface.
Solder deposit tip LT GW
LT-GW soldering tip 2.3 / 3.2 mm
Gull Wing tip (individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6834

7.70 CHF
The image shows a small, conical metal pin. It has a smooth, silver surface and a wider base. The tip is rounded and slightly recessed.
Soldering tip round LT CS
LT-CS soldering tip 3.2 mm round

+++ suitable for lead-free solder +++
dpvlink
6825

6.45 CHF
The image shows a tapered, silver metal object with a flat base on one side. The other side is narrow and pointed, suitable for precise applications.
Soldering tip chisel-shaped long LT L
LT-L soldering tip 2.0 mm / 1.0 mm
+++ suitable for lead-free solder +++
dpvlink
6839

5.60 CHF
The image shows a tapered, silver metal object with a flat base on one side. The other side is narrow and pointed, suitable for precise applications.
Soldering tip chisel-shaped long LT L
LT-L soldering tip 2.0 mm / 1.0 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6839

6.45 CHF
The image shows a conical, metallic drill bit. It tapers to a point at one end, while the other end has a wide base. The surface is shiny and silver.
Soldering tip chisel-shaped long LT M
LT-M soldering tip 3.2 mm / 1.2 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6839

6.45 CHF
The image displays a narrow, cylindrical metal pin with a flattened base. The surface is smooth and shiny, and it has a hole at one end.
LT measuring tip for thermocouple Ø 0.5 m...
LT measuring tip for thermocouple
Diameter 0.5 mm
dpvlink
6835

26.75 CHF
The image displays a cross-section of a cylinder. There are various areas with different textures represented by lines and hatching. The front part is wider and conical.
LT Adapter for SMD tips 13.5 mm
LT adapter for SMD tips 13.5 mm
(for WSP 80 / WP 80)
dpvlink
6836

27.90 CHF
The image shows a shiny, rounded metal attachment with a long, pointed opening. The attachment has a rounded base and a curved shape that slightly tilts upward at the front.
Soldering tip chisel-shaped bent LT HX
LT-HX soldering tip 0.8 mm (loosely packed)
+++ suitable for lead-free solder +++
dpvlink
6840

7.55 CHF
The image shows a shiny, rounded metal attachment with a long, pointed opening. The attachment has a rounded base and a curved shape that slightly tilts upward at the front.
Soldering tip chisel-shaped bent LT HX
LT-HX soldering tip 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6840

8.55 CHF
The image shows a sharp metal pin with a wide, flat end. The shape resembles a cone that tapers towards the top. The surface is shiny and silver-colored.
Soldering tip round conical LT 1L
LT-1L soldering tip 0.2 mm (individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6829

11.50 CHF
The image shows a conical, metallic spout with a pointed, downward tapering shape. The upper part is wider and has a solid rim.
Soldering tip round conical long bent LT...
LT-1LX tip 0.2 mm (individually wrapped)
+++ suitable for lead-free solder +++
dpvlink
6830

11.50 CHF
The image shows a metallic tip, slender and slightly curved. It has a smooth, silver surface and a fine, pointed bevel. The base is wider, tapering upwards.
Soldering tip round bent LT 1X
LT-1X soldering tip 2.0 mm / 0.4 mm
+++ suitable for lead-free solder +++
(individually packaged)
dpvlink
6826

11.50 CHF
The image shows a silver, conical nozzle. It has a round, flat base and tapers to a long, pointed end. The surface is smooth and metallic.
Soldering tip round slim bent LT 1SLX
LT-1SLX soldering tip 0.4 mm
+++ suitable for lead-free solder +++
(individually packaged)
dpvlink
6827

11.50 CHF
The image shows a silver, metallic nozzle that is slightly tilted forward. It has a round base and ends in a narrow, conical opening.
Soldering tip round bent LT AX
LT-AX soldering tip 1.6 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6826

11.50 CHF
The image shows a silver metal tip with a thin, forward-bending shape. It has a wide, flat base on one side and is attached to a tool.
Soldering tip round bent LT 4X
LT-4X soldering tip 1.2 mm / 0.4 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6826

11.50 CHF
The image depicts a conical, silver metal object. It has a wide, flat base and tapers to a point at the top. The surface appears smooth and shiny.
Soldering tip round LT 1
LT-1 soldering tip 0.25 mm round
+++ suitable for lead-free solder +++
dpvlink
6825

5.60 CHF
The image depicts a conical, silver metal object. It has a wide, flat base and tapers to a point at the top. The surface appears smooth and shiny.
Soldering tip round LT 1
LT-1 soldering tip 0.25 mm round
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6825

6.45 CHF
The image shows a silver metal nail with a sharp, narrow tip and a broad, flat head. It is shiny and has a smooth surface.
Soldering tip round slim LT 1 S
LT-1S soldering tip 0.2 mm / 1.6 mm round
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6828

6.45 CHF
The image shows a silver, conically shaped metal nail with a flat head. The tip is slightly darkened, and the body has a smooth surface.
Soldering tip chisel-shaped LT H
LT-H soldering tip 0.8 mm / 0.4 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
The image shows a silver, conically shaped metal nail with a flat head. The tip is slightly darkened, and the body has a smooth surface.
Soldering tip chisel-shaped LT H
LT-H soldering tip 0.8 mm / 0.4 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
The image shows a conical, silver-colored metal object. It has a wide, flat base and tapers to a point at the top. The surface is smooth and shiny.
Soldering tip chisel-shaped long LT K
LT-K soldering tip 1.2 mm / 0.4 mm
+++ suitable for lead-free solder +++
dpvlink
6839

5.60 CHF
The image shows a conical, silver-colored metal object. It has a wide, flat base and tapers to a point at the top. The surface is smooth and shiny.
Soldering tip chisel-shaped long LT K
LT-K soldering tip 1.2 mm / 0.4 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6839

6.45 CHF
The image shows a silver, metallic object that is elongated and tapers to a point. At one end it has a broad base, while the other end is narrow and round.
Soldering tip round sloped slim LT 4
LT-4 soldering tip 1.2 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6833

6.45 CHF
The image shows a conical, metallic object that is wider on one side and tapers to a point on the other. The surface is smooth and has a slightly shiny silver tone.
Soldering tip chisel-shaped LT A
LT-A soldering tip 1.6 mm / 0.7 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
The image shows a conical, metallic object that is wider on one side and tapers to a point on the other. The surface is smooth and has a slightly shiny silver tone.
Soldering tip chisel-shaped LT A
LT-A soldering tip 1.6 mm/0.7 mm chisel-shaped
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
The image shows a metallic, curved part with a smooth surface. It ends in a flat, rough tip that is grayer than the rest and has a round protrusion on one side.
Soldering tip chisel-shaped bent LT BX
LT-BX soldering 2.4 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6840

11.50 CHF
The image displays a metallic piping nozzle with a slightly curved end. The surface is smooth and shiny, and the nozzle features a wide, stable base.
Soldering tip chisel-shaped bent LT ALX
LT-ALX soldering tip 1.6 mm / 0.7 mm
+++ suitable for lead-free solder +++
dpvlink
6840

11.50 CHF
The image shows a silver nail with a round head and a long, pointed shaft. The head is flat and wide, while the shaft tapers towards the tip.
Soldering tip round slim LT 1SA
LT-1SA soldering tip 0.5 mm round, slim
+++ suitable for lead-free solder +++
dpvlink
6828

7.70 CHF
The image shows a silver metal spike with a conical, sharp end and a wider base. The surface is smooth and shiny, with a slight shadow underneath.
Soldering tip chisel-shaped LT 1SC
LT-1SC soldering tip 0.15 mm /
0.4 mm chisel-shaped
+++ suitable for lead-free solder +++
dpvlink
9598

6.45 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Soldering station WSF 81 D8

Article image
Article description
Width
Height
Length
Power
Temperature range
Price
Compare
528.226.99 - WSF 81D8 soldering station with automatic solder feed
528.226.99
WSF 81D8 soldering station with automatic solder feed
217 mm
199 mm
120 mm
90 W
50 - 450 °C
1,790.90 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a blue soldering station with a digital display and several buttons. A long cable leads to a soldering iron with a pointed tip, which is lying on a table.
WTSF 80 Feeding unit
WTSF 80 feeder WTSF, soldering iron 80W with
integrated solder feeder, soldering tip LT-B
2.4 mm, solder wire 0.5-1.0 mm

!! Operation only in conjunction with following soldering stations possible: WD1, WD1M, WR2, WR3M, WS81, WSD81, WSD81i, WSD121!
dpvlink
19251

1,154.35 CHF
The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
Zero Smog TL solder fume extraction unit
with filter level display
120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,059.20 CHF
The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL with gas filter
Zero Smog TL solder fume extraction unit
with gas filter art. 587.359.38
power 120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,146.60 CHF
The image displays a gray device with a rounded lid and a hose that curves upward in an arch-like shape. The hose features a wide, open nozzle.
Zero Smog TL Kit 1 FN
Zero Smog TL Kit 1 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- FT91013699 solder fume extraction unit Zero-Smog TL
- FT91000033 ZSRS Zero Smog Remote Switch
- 0F10 Flexible extraction arm
- ALFA ALFA funnel nozzle
- shut-off valve with table clamp
- 700-3051-ESD suction hose 3 m
dpvlink
20604

1,286.60 CHF
The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
Zero Smog TL Kit 2 SN
Zero Smog TL Kit 2 SN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x FT-NL metal nozzle sloped diameter 60 mm
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1,284.45 CHF
The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
Zero Smog TL Kit 2 FN
Zero Smog TL Kit 2 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x ALFA ALFA funnel nozzle
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1,298.15 CHF

This product is similar to:

The image shows a metallic device with a round, hollow center. It has cooling fins on the sides and is connected to a cable. It might be a technical device.
Soldering bath WSB 80
WSB 80 soldering bath 24V / 80W
(can be connected to all Weller 80 Watt stations)
!! suitable for lead-free solder !!
dpvlink
3819

422.20 CHF
