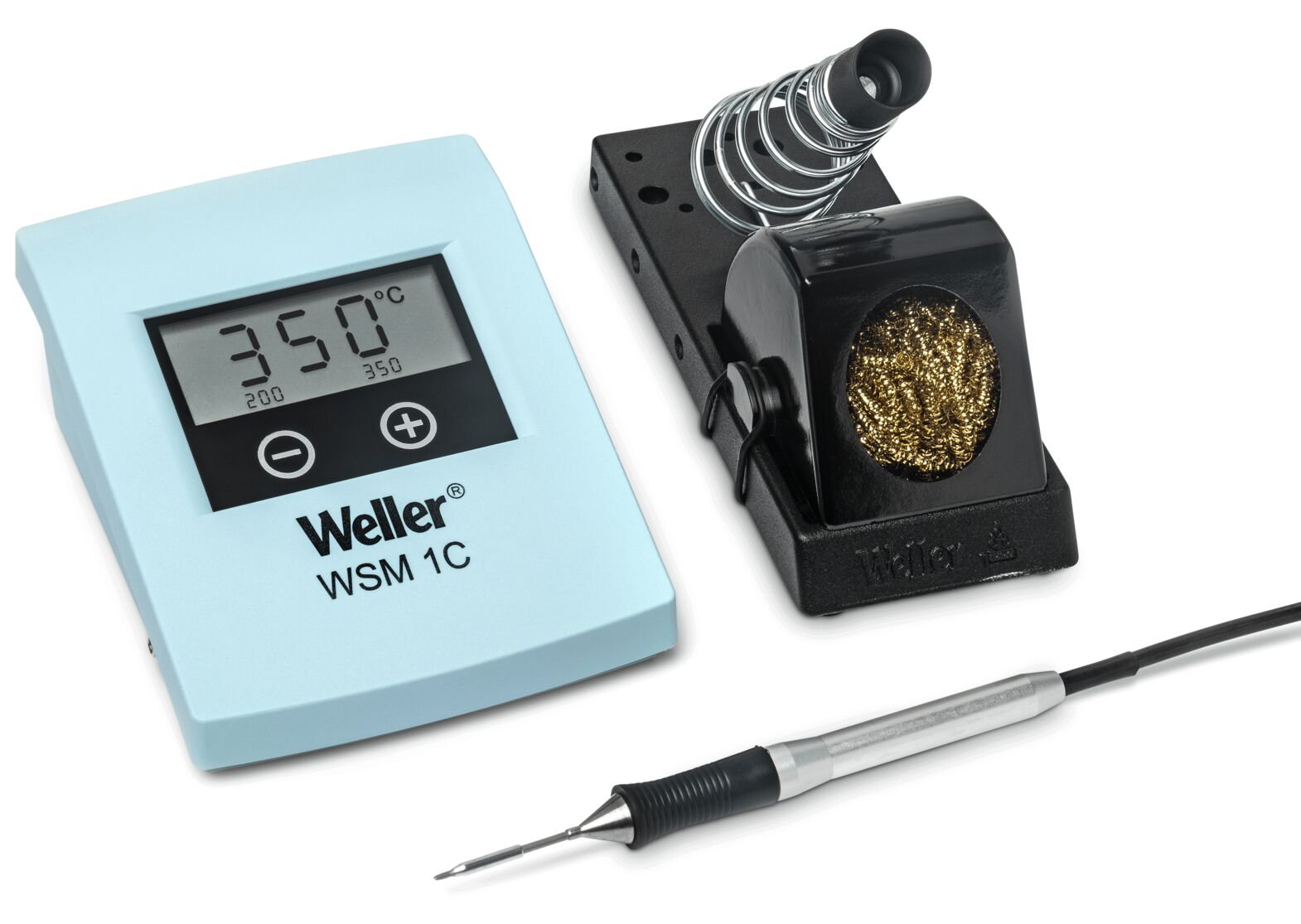

The image displays a soldering iron kit. It includes a digital thermometer with temperature display, a soldering iron with a rounded tip, and a holder with a cleaning wire.

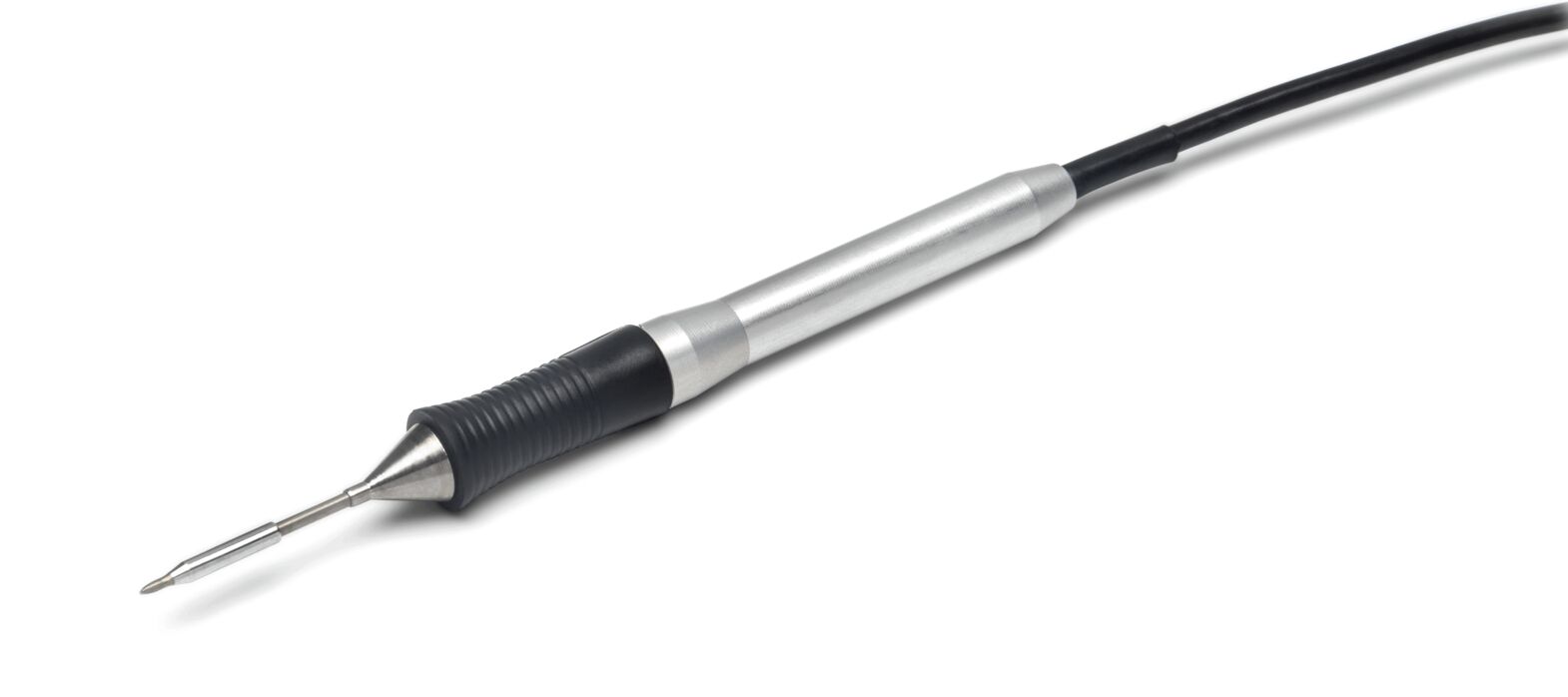

The image shows a slim, silver pen with a pointed, sharp tip. The grip is black and rubberized, and there is a cable branching off from the end of the pen.

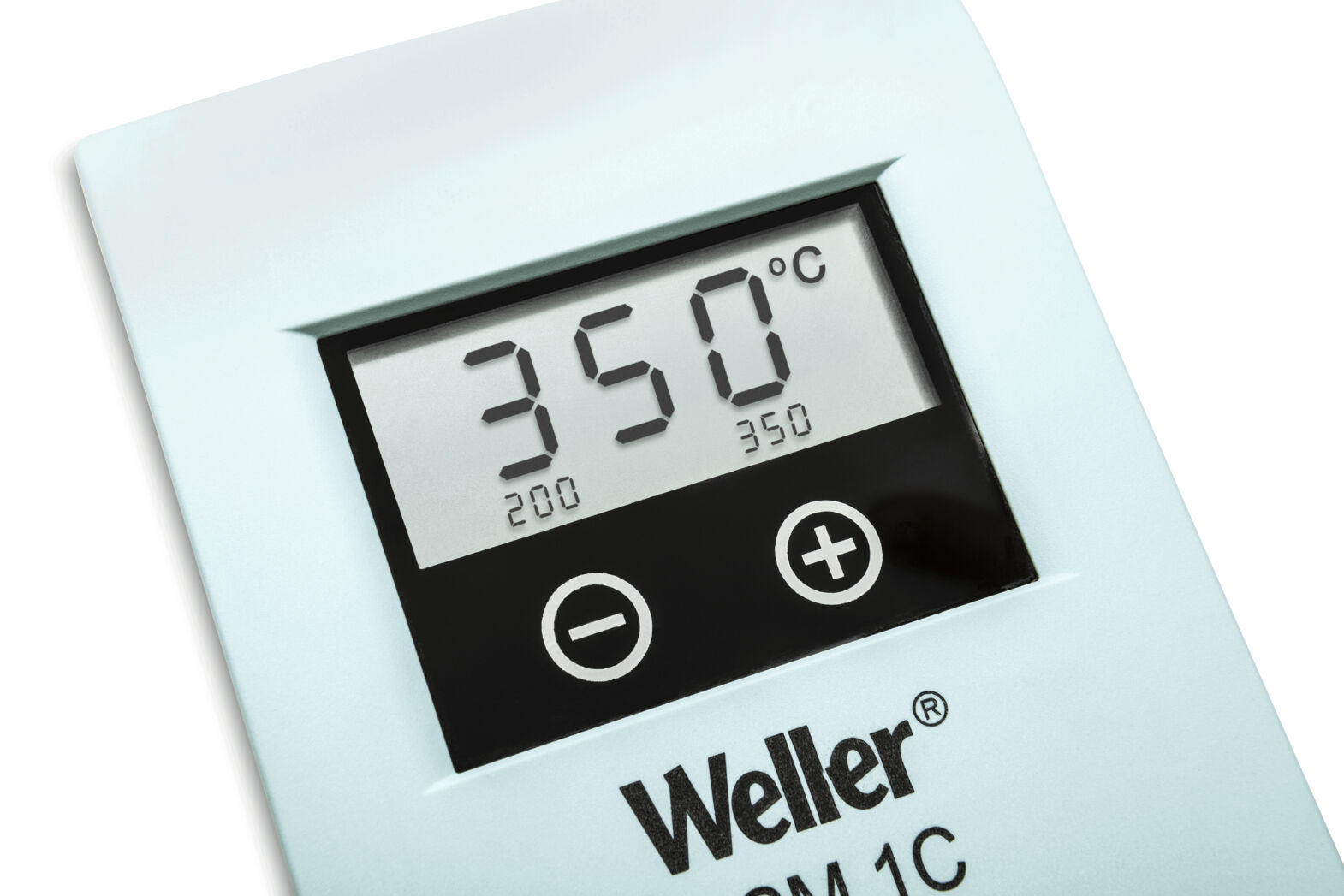

The image shows a digital thermometer with a white casing. On the display, it reads "350°C", below which are buttons to increase and decrease the temperature.

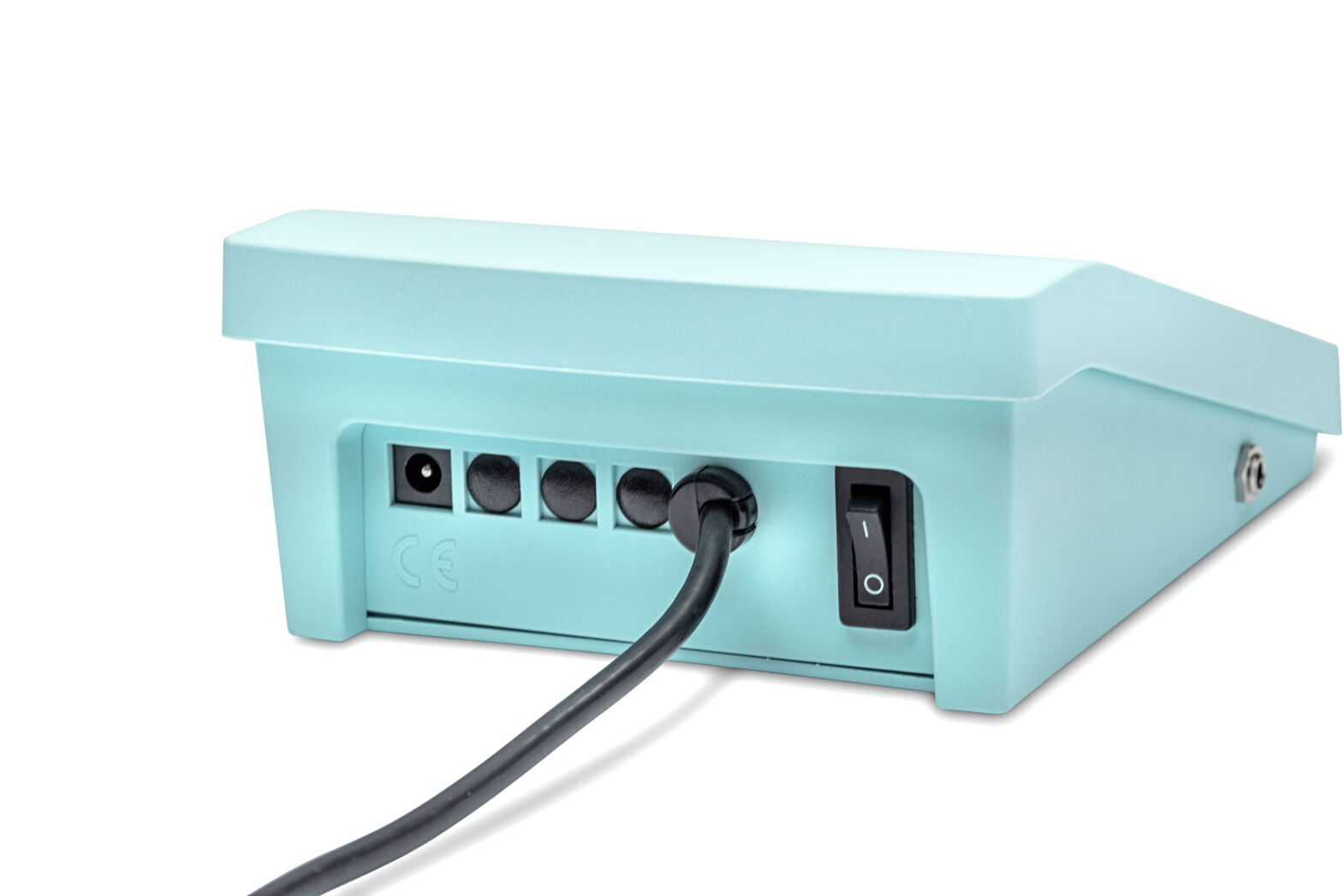

The image shows the back of a turquoise-colored device. It has multiple ports for cables and a power switch. A black cable is plugged in. The shape is rectangular and flat.

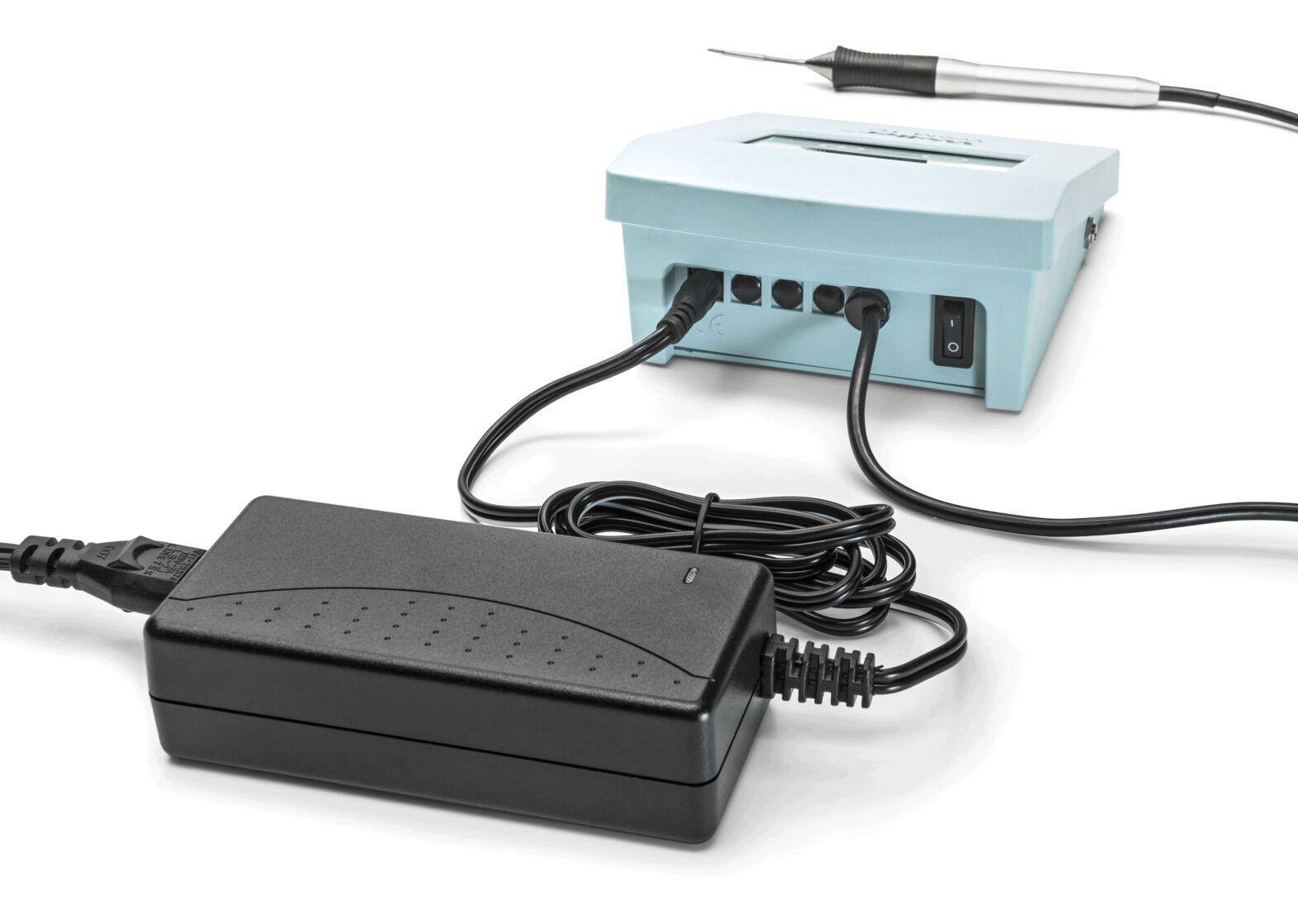

The image shows a device with a light blue box that has cable connections. Next to it is a black power supply with a long cable. A soldering iron is also lying next to it.
Preview: The image displays a soldering iron kit. It includes a digital thermometer with temperature display, a soldering iron with a rounded tip, and a holder with a cleaning wire.
Preview: The image shows a slim, silver pen with a pointed, sharp tip. The grip is black and rubberized, and there is a cable branching off from the end of the pen.
Preview: The image shows a digital thermometer with a white casing. On the display, it reads "350°C", below which are buttons to increase and decrease the temperature.
Preview: The image shows the back of a turquoise-colored device. It has multiple ports for cables and a power switch. A black cable is plugged in. The shape is rectangular and flat.
Preview: The image shows a device with a light blue box that has cable connections. Next to it is a black power supply with a long cable. A soldering iron is also lying next to it.
WSM 1C Soldering station
(Product No.: 532.933.99)
The image displays a soldering iron kit. It includes a digital thermometer with temperature display, a soldering iron with a rounded tip, and a holder with a cleaning wire.
The image shows a slim, silver pen with a pointed, sharp tip. The grip is black and rubberized, and there is a cable branching off from the end of the pen.
The image shows a digital thermometer with a white casing. On the display, it reads "350°C", below which are buttons to increase and decrease the temperature.
The image shows the back of a turquoise-colored device. It has multiple ports for cables and a power switch. A black cable is plugged in. The shape is rectangular and flat.
The image shows a device with a light blue box that has cable connections. Next to it is a black power supply with a long cable. A soldering iron is also lying next to it.
Mobile Preview: The image displays a soldering iron kit. It includes a digital thermometer with temperature display, a soldering iron with a rounded tip, and a holder with a cleaning wire.
Mobile Preview: The image shows a slim, silver pen with a pointed, sharp tip. The grip is black and rubberized, and there is a cable branching off from the end of the pen.
Mobile Preview: The image shows a digital thermometer with a white casing. On the display, it reads "350°C", below which are buttons to increase and decrease the temperature.
Mobile Preview: The image shows the back of a turquoise-colored device. It has multiple ports for cables and a power switch. A black cable is plugged in. The shape is rectangular and flat.
Mobile Preview: The image shows a device with a light blue box that has cable connections. Next to it is a black power supply with a long cable. A soldering iron is also lying next to it.
Notice

WSM 1C Soldering station

WSM 1C Soldering station

dpvlink:
27327
Width :
110 mm
Height :
55 mm
Length :
137 mm
Power:
50 W
Heating-up time:
5 s
Temperature range:
100 - 400 °C
Properties:
Further product information

496.95 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WSM 1C Soldering station

The WSM1C has been specifically developed for users who need a portable, mobile, and small soldering station for professional applications. Powered by a battery, the WSM1C soldering station can be operated outside of laboratories or production lines, right where the work is happening. The WSM1C allows up to 1 hour of soldering and recharges in 20 minutes, making it ideal for service technicians on the go. The WSM1C features sophisticated temperature control. It can be recharged using a car adapter in the field.

  • Portable, lightweight soldering station for industrial use on the go
  • Tip & Grip design: the only soldering tip with tool-free tip change on the market
  • Intuitive touch display: all functionalities right at hand
  • Temperature lock function for maximum process reliability
  • Extremely fast heating and response time for continuous workflow and excellent soldering results
  • High temperature accuracy and stability
  • 2 freely configurable preset temperatures for quick temperature changes
  • Integrated micro soldering iron WMRP
  • Replaceable micro soldering tip RT 3, chisel shape, 1.3 mm and integrated heater
  • Safety stand KH 17 with brass wool
  • Integrated battery (runtime approx. 1 hour), recharged within 20 minutes
  • ESD-safe

Contents of delivery:

WSM 1 soldering station with integrated battery and WMRP soldering iron, 50 W

Safety stand KH 17 with brass wool

RT 3 soldering tip, chisel shape, 1.3 mm



Width
Width
110 mm
Height
Height
55 mm
Length
Length
137 mm
Power
Power
50 W
Heating-up time
Heating-up time
5 s
Temperature range
Temperature range
100 - 400 °C
Channels
Channels
1
Output voltage DC
Output voltage DC
12 V/DC
Voltage
Voltage
100 - 240 V
ESD
ESD
yes
included soldering iron
included soldering iron
WMRP
Safety rest
Safety rest
KH 17
suitable soldering tip series
suitable soldering tip series
RT
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
5 °C
Weight
Weight
0.4 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WSM 1C Soldering station

Article image
Article description
Width
Height
Length
Power
Heating-up time
Temperature range
Price
Compare
532.933.99 - WSM 1C Soldering station
532.933.99
WSM 1C Soldering station
110 mm
55 mm
137 mm
50 W
5 s
100 - 400 °C
496.95 CHF
