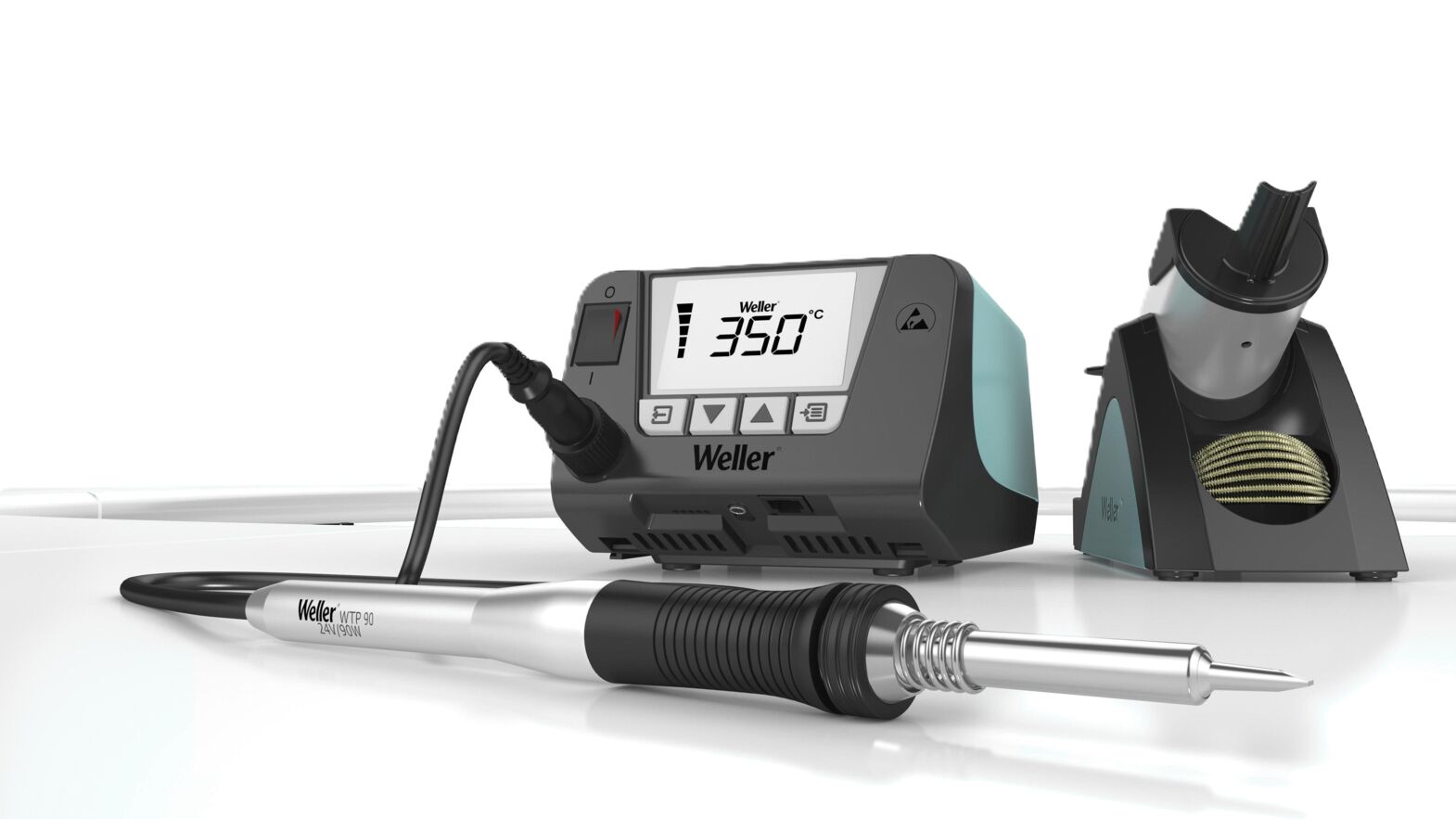

The image shows a soldering station. It consists of a black casing with blue accents, a digital display, a soldering tip, and a container for cleaning the tip.

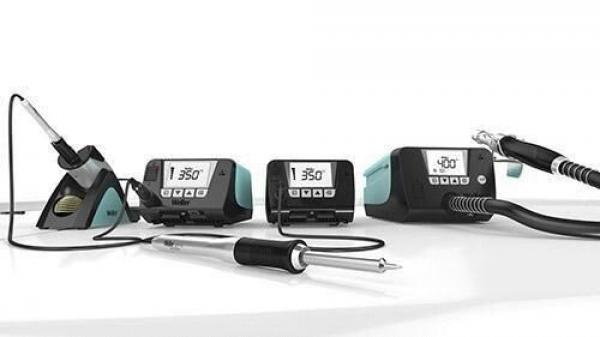

The image shows a soldering iron with digital temperature control. Next to it is a soldering station with a display and a holder for the soldering iron. Everything has a modern, sleek design.
The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Preview: The image shows a soldering station. It consists of a black casing with blue accents, a digital display, a soldering tip, and a container for cleaning the tip.
Preview: The image shows a soldering iron with digital temperature control. Next to it is a soldering station with a display and a holder for the soldering iron. Everything has a modern, sleek design.
Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
WT 1010 set soldering station
(Product No.: 534.366.99)
The image shows a soldering station. It consists of a black casing with blue accents, a digital display, a soldering tip, and a container for cleaning the tip.
The image shows a soldering iron with digital temperature control. Next to it is a soldering station with a display and a holder for the soldering iron. Everything has a modern, sleek design.
The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Mobile Preview: The image shows a soldering station. It consists of a black casing with blue accents, a digital display, a soldering tip, and a container for cleaning the tip.
Mobile Preview: The image shows a soldering iron with digital temperature control. Next to it is a soldering station with a display and a holder for the soldering iron. Everything has a modern, sleek design.
Mobile Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Notice / Inquire

WT 1010 set soldering station

WT 1010 set soldering station

dpvlink:
19959
included soldering iron:
WTP 90
Safety rest:
WSR 200
suitable soldering tip series:
XNT
Power:
95 W
Channels:
1
Properties:
Further product information

525.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WT 1010 set soldering station

WT 1010-Set Soldering Station
The WT 1010-Set by Weller is a high-quality soldering station suitable for demanding applications in electronics manufacturing, maintenance, repair, and more. The set is characterized by intuitive operation with clear menu navigation and a graphical LC display with backlight. Its high functionality allows for the connection of a variety of tools, and the automatic shutdown feature enhances safety when not in use. Additional features include a housing cover as an extra storage, OFF time, process window, lock function, and offset. Suitable soldering tips for this model are from the XNT & XH series.


Contents:
534.346.99 WT 1 Power Unit (1-channel, 95 Watt)
529.222.99 WTP 90 High-Power Soldering Iron with Soldering Tip XNT A
515.174.99 WSR 200 Safety Holder

included soldering iron
included soldering iron
WTP 90
Safety rest
Safety rest
WSR 200
suitable soldering tip series
suitable soldering tip series
XNT
Power
Power
95 W
Channels
Channels
1
Voltage
Voltage
230 V
Height
Height
101 mm
Length
Length
149 mm
Width
Width
138 mm
ESD
ESD
yes
Control
Control
digital
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature range
Temperature range
100 - 450 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Weight
Weight
1.9 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

568.55 CHF
Show product
The image shows a conical, metallic object with a pointed shape. The surface shines silver, while the tip has a matte, gray color.
Preview: Soldering tip round LT AS
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round LT AS
LT-AS soldering tip 1.6 mm

+++ suitable for lead-free solder +++
dpvlink
6825

6.45 CHF
Show product
The image displays a conical, metallically shiny object with a rounded tip. The lower half is gray, providing a matte contrast to the smooth, silver upper part.
Preview: Soldering tip chisel-shaped LT B
Preview: The image shows a technical drawing of a part, likely a nozzle attachment. It consists of two views: a side view with a conical shape and a top view with a round cutout. Dimensions are provided.
Soldering tip chisel-shaped LT B
LT-B soldering tip 1.6 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
Show product
The image displays a conical, metallically shiny object with a rounded tip. The lower half is gray, providing a matte contrast to the smooth, silver upper part.
Preview: Soldering tip chisel-shaped LT B
Preview: The image shows a technical drawing of a part, likely a nozzle attachment. It consists of two views: a side view with a conical shape and a top view with a round cutout. Dimensions are provided.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped LT B
LT-B soldering tip 2.4 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
Show product
The image displays a silver metallic object in a conical shape. It has a pointed, narrow tip and a wider, flat base. The object could be a pen or a tool.
Preview: Soldering tip round conical LT S
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Preview: The image shows a conical object that is flat on top and pointed at the bottom. On the right is a top view with a circular end and a small opening in the middle.
Soldering tip round conical LT S
LT-S soldering tip 0.4 mm
+++ suitable for lead-free solder +++
dpvlink
6829

5.60 CHF
Show product
The image displays a silver metallic object in a conical shape. It has a pointed, narrow tip and a wider, flat base. The object could be a pen or a tool.
Preview: Soldering tip round conical LT S
Preview: The image shows a conical object that is flat on top and pointed at the bottom. On the right is a top view with a circular end and a small opening in the middle.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round conical LT S
LT-S soldering tip 0.4 mm / 0.8
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6829

6.45 CHF
Show product
The image displays a metallic cone with a sharp tip and a wider base. The surface is shiny and reflects light. It is a simple, elegant object.
Preview: Soldering tip chisel-shaped LT C
Preview: The image displays technical drawings of a part. On the left is a side view with a pointed shape and a flat ring. On the right is the top view with an inner diameter (A) and external dimensions (B).
Soldering tip chisel-shaped LT C
LT-C soldering tip 3.2 mm / 0.8 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.65 CHF
Show product
The image displays a metallic cone with a sharp tip and a wider base. The surface is shiny and reflects light. It is a simple, elegant object.
Preview: Soldering tip chisel-shaped LT C
Preview: The image displays technical drawings of a part. On the left is a side view with a pointed shape and a flat ring. On the right is the top view with an inner diameter (A) and external dimensions (B).
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped LT C
LT-C soldering tip 3.2 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
Show product
The image shows a metallic pointed cone that is wider at the base and tapers towards the top. The surface is shiny and reflects light, giving it a smooth appearance.
Preview: XNT Soldering tip round sloped LT F
Preview: The image shows a conical tip, next to which there is a drawing with a line and a circle. Beside it are the letters
XNT Soldering tip round sloped LT F
LT-F soldering tip 1.2 mm
+++ suitable for lead-free solder +++
dpvlink
6832

5.60 CHF
Show product
The image shows a metallic pointed cone that is wider at the base and tapers towards the top. The surface is shiny and reflects light, giving it a smooth appearance.
Preview: Soldering tip round sloped LT F
Preview: The image shows a conical tip, next to which there is a drawing with a line and a circle. Beside it are the letters
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round sloped LT F
LT-F soldering tip 1.2 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6832

6.45 CHF
Show product
The image shows a metal pin with a pointed, angled front and a flat, round head. It is silver-colored and has a smooth surface that reflects light.
Preview: Soldering tip chisel-shaped LT D
Preview: The image displays technical drawings of a conical part. On the left, a side view with a pointed shape, and on the right, a top view showing a round cutout, with two dimensions (A and B).
Soldering tip chisel-shaped LT D
LT-D soldering tip 4.6 mm / 0.8 mm chisel-shaped
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
Show product
The image shows a metal pin with a pointed, angled front and a flat, round head. It is silver-colored and has a smooth surface that reflects light.
Preview: Soldering tip chisel-shaped LT D
Preview: The image displays technical drawings of a conical part. On the left, a side view with a pointed shape, and on the right, a top view showing a round cutout, with two dimensions (A and B).
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped LT D
LT-D soldering tip 4.6 mm / 0.8 mm chisel-shaped
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
Show product
The image shows a conical metal pin with a rounded tip. It has a flat, wide head and a smooth, silver surface.
Preview: Solder deposit tip LT GW
Preview: The image displays a simple, schematic drawing of a round pipe with a slanted tip. It has a wide base and tapers towards the top.
Solder deposit tip LT GW
LT-GW - soldering tip 2.3 mm / 3.2 mm
Gull Wing tip
+++ suitable for lead-free solder +++
dpvlink
6834

6.60 CHF
Show product
The image shows a conical metal pin with a rounded tip. It has a flat, wide head and a smooth, silver surface.
Preview: Solder deposit tip LT GW
Preview: The image displays a simple, schematic drawing of a round pipe with a slanted tip. It has a wide base and tapers towards the top.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Solder deposit tip LT GW
LT-GW soldering tip 2.3 / 3.2 mm
Gull Wing tip (individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6834

7.70 CHF
Show product
The image shows a small, conical metal pin. It has a smooth, silver surface and a wider base. The tip is rounded and slightly recessed.
Preview: Soldering tip round LT CS
Preview: The image displays a technical drawing. On the left is a conical shape with a flat base, on the right a circular view with a central point and a small line above it.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round LT CS
LT-CS soldering tip 3.2 mm round

+++ suitable for lead-free solder +++
dpvlink
6825

6.45 CHF
Show product
The image shows a tapered, silver metal object with a flat base on one side. The other side is narrow and pointed, suitable for precise applications.
Preview: Soldering tip chisel-shaped long LT L
Preview: The image displays a technical drawing of a conical object. On the left is a side view, and on the right is the cross-section with dimensions for diameters A and B. The object has a pointed shape and a flat bottom.
Soldering tip chisel-shaped long LT L
LT-L soldering tip 2.0 mm / 1.0 mm
+++ suitable for lead-free solder +++
dpvlink
6839

5.60 CHF
Show product
The image shows a tapered, silver metal object with a flat base on one side. The other side is narrow and pointed, suitable for precise applications.
Preview: Soldering tip chisel-shaped long LT L
Preview: The image displays a technical drawing of a conical object. On the left is a side view, and on the right is the cross-section with dimensions for diameters A and B. The object has a pointed shape and a flat bottom.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped long LT L
LT-L soldering tip 2.0 mm / 1.0 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6839

6.45 CHF
Show product
The image shows a conical, metallic drill bit. It tapers to a point at one end, while the other end has a wide base. The surface is shiny and silver.
Preview: Soldering tip chisel-shaped long LT M
Preview: The image displays a technical drawing of a conical part with dimensions labeled A and B. The top view reveals an oval opening.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped long LT M
LT-M soldering tip 3.2 mm / 1.2 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6839

6.45 CHF
Show product
The image displays a narrow, cylindrical metal pin with a flattened base. The surface is smooth and shiny, and it has a hole at one end.
Preview: LT measuring tip for thermocouple Ø 0.5 m
Preview: The image shows a schematic cross-section of a screwdriver attachment. It has a cylindrical shape with a wide base and a grooved, narrow tip.
LT measuring tip for thermocouple Ø 0.5 m...
LT measuring tip for thermocouple
Diameter 0.5 mm
dpvlink
6835

26.75 CHF
Show product
The image displays a cross-section of a cylinder. There are various areas with different textures represented by lines and hatching. The front part is wider and conical.
LT Adapter for SMD tips 13.5 mm
LT adapter for SMD tips 13.5 mm
(for WSP 80 / WP 80)
dpvlink
6836

27.90 CHF
Show product
The image shows a shiny, rounded metal attachment with a long, pointed opening. The attachment has a rounded base and a curved shape that slightly tilts upward at the front.
Preview: Soldering tip chisel-shaped bent LT HX
Preview: The image displays technical drawings of an object. On the left is a side view featuring a narrow, slanted end at a 30° angle. On the right is the top view outlining the shape of the end.
Soldering tip chisel-shaped bent LT HX
LT-HX soldering tip 0.8 mm (loosely packed)
+++ suitable for lead-free solder +++
dpvlink
6840

7.55 CHF
Show product
The image shows a shiny, rounded metal attachment with a long, pointed opening. The attachment has a rounded base and a curved shape that slightly tilts upward at the front.
Preview: Soldering tip chisel-shaped bent LT HX
Preview: The image displays technical drawings of an object. On the left is a side view featuring a narrow, slanted end at a 30° angle. On the right is the top view outlining the shape of the end.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped bent LT HX
LT-HX soldering tip 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6840

8.55 CHF
Show product
The image shows a sharp metal pin with a wide, flat end. The shape resembles a cone that tapers towards the top. The surface is shiny and silver-colored.
Preview: Soldering tip round conical LT 1L
Preview: The image displays a tapered, conical shape with a flat end. On the right, a top view is visible, showing a circle with a small line.
Soldering tip round conical LT 1L
LT-1L soldering tip 0.2 mm (individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6829

11.50 CHF
Show product
The image shows a conical, metallic spout with a pointed, downward tapering shape. The upper part is wider and has a solid rim.
Preview: Soldering tip round conical long bent LT 1LX
Preview: The image shows a schematic representation of a narrow, straight object with a slightly curved tip on the left side. On the right is a circular cross-section with a central line.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round conical long bent LT...
LT-1LX tip 0.2 mm (individually wrapped)
+++ suitable for lead-free solder +++
dpvlink
6830

11.50 CHF
Show product
The image shows a metallic tip, slender and slightly curved. It has a smooth, silver surface and a fine, pointed bevel. The base is wider, tapering upwards.
Soldering tip round bent LT 1X
LT-1X soldering tip 2.0 mm / 0.4 mm
+++ suitable for lead-free solder +++
(individually packaged)
dpvlink
6826

11.50 CHF
Show product
The image shows a silver, conical nozzle. It has a round, flat base and tapers to a long, pointed end. The surface is smooth and metallic.
Preview: Soldering tip round slim bent LT 1SLX
Preview: The image displays a sketched nozzle. On the left is the side view with a curved end, on the right the top view showing an oval opening. Dimensions are provided.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round slim bent LT 1SLX
LT-1SLX soldering tip 0.4 mm
+++ suitable for lead-free solder +++
(individually packaged)
dpvlink
6827

11.50 CHF
Show product
The image shows a silver, metallic nozzle that is slightly tilted forward. It has a round base and ends in a narrow, conical opening.
Preview: Soldering tip round bent LT AX
Preview: The image displays technical drawings. On the left is a side view of a narrow, curved part, and on the right is the top view of a round element with a central hole.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round bent LT AX
LT-AX soldering tip 1.6 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6826

11.50 CHF
Show product
The image shows a silver metal tip with a thin, forward-bending shape. It has a wide, flat base on one side and is attached to a tool.
Preview: Soldering tip round bent LT 4X
Preview: The image displays technical drawings of an object, with side and top views. There are dimensions for B, C, and A, representing various distances and shapes.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round bent LT 4X
LT-4X soldering tip 1.2 mm / 0.4 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6826

11.50 CHF
Show product
The image depicts a conical, silver metal object. It has a wide, flat base and tapers to a point at the top. The surface appears smooth and shiny.
Preview: Soldering tip round LT 1
Preview: The image shows two technical drawings. On the left is a conical tip with a cylindrical base. On the right is a circular view with a small hole in the center.
Soldering tip round LT 1
LT-1 soldering tip 0.25 mm round
+++ suitable for lead-free solder +++
dpvlink
6825

5.60 CHF
Show product
The image depicts a conical, silver metal object. It has a wide, flat base and tapers to a point at the top. The surface appears smooth and shiny.
Preview: Soldering tip round LT 1
Preview: The image shows two technical drawings. On the left is a conical tip with a cylindrical base. On the right is a circular view with a small hole in the center.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round LT 1
LT-1 soldering tip 0.25 mm round
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6825

6.45 CHF
Show product
The image shows a silver metal nail with a sharp, narrow tip and a broad, flat head. It is shiny and has a smooth surface.
Preview: Soldering tip round slim LT 1 S
Preview: The image shows a technical drawing of a fastener with a pointed end and a round head. Next to the side view, a top view with dimensions is displayed.
Preview: The image displays a silver, cylindrical object with a flat, round top. On the top, the word
Soldering tip round slim LT 1 S
LT-1S soldering tip 0.2 mm / 1.6 mm round
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6828

6.45 CHF
Show product
The image shows a silver, conically shaped metal nail with a flat head. The tip is slightly darkened, and the body has a smooth surface.
Preview: Soldering tip chisel-shaped LT H
Preview: The image shows a technical drawing of a conical component. It has a pointed shape with a round end that is being measured. The dimensions A and B are indicated.
Soldering tip chisel-shaped LT H
LT-H soldering tip 0.8 mm / 0.4 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
Show product
The image shows a silver, conically shaped metal nail with a flat head. The tip is slightly darkened, and the body has a smooth surface.
Preview: Soldering tip chisel-shaped LT H
Preview: The image shows a technical drawing of a conical component. It has a pointed shape with a round end that is being measured. The dimensions A and B are indicated.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped LT H
LT-H soldering tip 0.8 mm / 0.4 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
Show product
The image shows a conical, silver-colored metal object. It has a wide, flat base and tapers to a point at the top. The surface is smooth and shiny.
Preview: Soldering tip chisel-shaped long LT K
Preview: The image shows a technical drawing of a conical object. It has an elongated shape with a narrow tip and a broad end. On the right, dimensions for A and B are visible.
Soldering tip chisel-shaped long LT K
LT-K soldering tip 1.2 mm / 0.4 mm
+++ suitable for lead-free solder +++
dpvlink
6839

5.60 CHF
Show product
The image shows a conical, silver-colored metal object. It has a wide, flat base and tapers to a point at the top. The surface is smooth and shiny.
Preview: Soldering tip chisel-shaped long LT K
Preview: The image shows a technical drawing of a conical object. It has an elongated shape with a narrow tip and a broad end. On the right, dimensions for A and B are visible.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped long LT K
LT-K soldering tip 1.2 mm / 0.4 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6839

6.45 CHF
Show product
The image shows a silver, metallic object that is elongated and tapers to a point. At one end it has a broad base, while the other end is narrow and round.
Preview: Soldering tip round sloped slim LT 4
Preview: The image shows a technical drawing of an object with a sharp, conical shape on the left and a circular section on the right, displayed horizontally.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round sloped slim LT 4
LT-4 soldering tip 1.2 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6833

6.45 CHF
Show product
The image shows a conical, metallic object that is wider on one side and tapers to a point on the other. The surface is smooth and has a slightly shiny silver tone.
Preview: Soldering tip chisel-shaped LT A
Preview: The image shows a technical drawing of a part, likely a nozzle attachment. It consists of two views: a side view with a conical shape and a top view with a round cutout. Dimensions are provided.
Soldering tip chisel-shaped LT A
LT-A soldering tip 1.6 mm / 0.7 mm
+++ suitable for lead-free solder +++
dpvlink
6824

5.60 CHF
Show product
The image shows a conical, metallic object that is wider on one side and tapers to a point on the other. The surface is smooth and has a slightly shiny silver tone.
Preview: Soldering tip chisel-shaped LT A
Preview: The image shows a technical drawing of a part, likely a nozzle attachment. It consists of two views: a side view with a conical shape and a top view with a round cutout. Dimensions are provided.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped LT A
LT-A soldering tip 1.6 mm/0.7 mm chisel-shaped
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6824

6.45 CHF
Show product
The image shows a metallic, curved part with a smooth surface. It ends in a flat, rough tip that is grayer than the rest and has a round protrusion on one side.
Preview: Soldering tip chisel-shaped bent LT BX
Preview: The image displays technical drawings of a component. On the left is the side view (at a 30° angle) and on the right is the top view, both with dimensions.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped bent LT BX
LT-BX soldering 2.4 mm / 0.8 mm
(individually packaged)
+++ suitable for lead-free solder +++
dpvlink
6840

11.50 CHF
Show product
The image displays a metallic piping nozzle with a slightly curved end. The surface is smooth and shiny, and the nozzle features a wide, stable base.
Preview: Soldering tip chisel-shaped bent LT ALX
Preview: The image displays technical drawings of a component. On the left is the side view with a narrow, curved end that thickens in the middle. On the right is the top view, which shows a round shape.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped bent LT ALX
LT-ALX soldering tip 1.6 mm / 0.7 mm
+++ suitable for lead-free solder +++
dpvlink
6840

11.50 CHF
Show product
The image shows a silver nail with a round head and a long, pointed shaft. The head is flat and wide, while the shaft tapers towards the tip.
Preview: Soldering tip round slim LT 1SA
Preview: The image displays technical sketches of a pen. On the left, the pen is depicted from the side with a pointed shape, and on the right, a top view with a circle and markings.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip round slim LT 1SA
LT-1SA soldering tip 0.5 mm round, slim
+++ suitable for lead-free solder +++
dpvlink
6828

7.70 CHF
Show product
The image shows a silver metal spike with a conical, sharp end and a wider base. The surface is smooth and shiny, with a slight shadow underneath.
Preview: Soldering tip chisel-shaped LT 1SC
Preview: The image displays a technical sketch of a pen. On the left is the side view with a pointed end and a cylindrical base. On the right is the top view with a circular shape.
Preview: The image displays a metallic object in cylindrical shape, rounded at one end. On the rounded surface, the inscription
Soldering tip chisel-shaped LT 1SC
LT-1SC soldering tip 0.15 mm /
0.4 mm chisel-shaped
+++ suitable for lead-free solder +++
dpvlink
9598

6.45 CHF
Show product
The image depicts a silver, pointed body that resembles a tool. It has a simple, smooth surface and is elongated. The upper part is narrower and pointed.
Preview: Soldering tip round XNT 1
Preview: The image shows a technical drawing of an object with a length of 27 mm and a diameter of 0.5 mm at the tip. It has a tapered shape.
Preview: The image shows a silver, cylindrical block of metal. It has a hollow inner diameter and a smooth surface. A thin conduit is attached at one end.
Soldering tip round XNT 1
XNT 1 round shape 0.25 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15714

8.40 CHF
Show product
The image depicts a silver marker with a wide, flat tip. The body is cylindrical and shiny, while the tip is gray and rounded.
Preview: Soldering tip chisel-shaped XNT A
Preview: The image shows a metallic, cylindrical body that is open at one end. It has a smooth, silver surface and is connected to a thin cable.
Preview: The image displays a technical drawing of an object measuring 28 mm in length and 1.6 mm in diameter. A top view illustrates the object with a small hole of 0.4 mm.
Soldering tip chisel-shaped XNT A
XNT A chisel tip 1.6 x 0.4 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image displays a sleek, silver pen with a sharp, metallic tip. The body is cylindrical and shiny, perfect for precise writing or drawing.
Preview: Soldering tip round slim XNT 1S
Preview: The image displays a technical drawing of an object with an elongated, pointed head and a cylindrical body. On the left, length dimensions are provided, and on the right, a top view is shown.
Preview: The image shows a cylindrical, silver metal object with a cavity at one end and a thin wire protruding from the other end.
Soldering tip round slim XNT 1S
XNT 1 S round slim 0.20 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15716

8.40 CHF
Show product
It is a metallic tool that is cylindrical and has a flat, beveled edge on one end. The surface is smooth and shiny. Ideal for precision work.
Preview: Soldering tip chisel-shaped XNT D
Preview: It is a cylindrical, metallic object that is open at one end. The surface is smooth and shiny, and on one side a thin wire is visible.
Preview: The image displays a technical drawing of a cylindrical object with a tip. It has a diameter of 4 mm and a length of 28 mm. Adjacent to it is the top view.
Soldering tip chisel-shaped XNT D
XNT D chisel tip 4.0 x 0.8 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image depicts an elongated, cylindrical metal object. At one end, there is a smooth, rounded tip, while the other end is wider and also smooth. It appears sturdy and of high quality.
Preview: Gullwing tip XNT GW
Preview: The image displays a sketched blade. It has an elongated shape with a slanted cutting edge and a wide, round handle edge. The dimensions are indicated as
Preview: The image shows a cylindrical, silver metal body with an opening at one end. It is smooth and has a thin wire protruding from the other end.
Gullwing tip XNT GW
XNT GW Gull Wing tip
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15720

10.10 CHF
Show product
The image shows a silver pen with a round, rounded tip. The pen has a plain, metallic surface and is cylindrically shaped.
Preview: Soldering tip round sloped XNT 4
Preview: The image displays technical drawings. On the left is a side view of an object with a length of 29.5 mm and a narrow end. On the right is a top view with a diameter of 1.2 mm.
Preview: The image shows a cylindrical, metallic object with an open end. It has a smooth, silver surface and is approximately 5-10 cm in length. A thin bundle of cables leads away from it.
Soldering tip round sloped XNT 4
XNT 4 soldering tip 45° diameter 1.2 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15718

8.40 CHF
Show product
The image displays a silver, cylindrical object with a slim, elongated end. It has a smooth surface and could be a tool or a kitchen utensil.
Preview: Soldering tip chisel-shaped XNT 6
Preview: The image shows a silver, cylindrical metal body with one open end. A thin wire extends from the other end. The surface is smooth and shiny.
Preview: The image shows a technical drawing of a tool with an overall length of 295 mm and a diameter of 16 mm. The view includes dimensions and a top view.
Preview: The image shows a simple, elongated pen with a pointed tip on one end and a flat, rectangular body. The pen is outlined, hollow inside.
Soldering tip chisel-shaped XNT 6
XNT 6 chisel tip 1.6 x 0.4 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image shows a silver, cylindrical object that is flattened at one end. It appears like a small metal cylinder or a type of drill without a visible tip.
Preview: Soldering tip chisel-shaped XNT B
Preview: In the picture, there is a slim, cylindrical metal body visible. It has a smooth, silver surface and is open at one end. The other part is connected to a thin wire.
Preview: The image displays technical drawings of a component with various views: a side view with dimensions and a top view that shows the shape and diameter.
Preview: The image shows a simple, elongated pen with a pointed tip on one end and a flat, rectangular body. The pen is outlined, hollow inside.
Soldering tip chisel-shaped XNT B
XNT B chisel tip 2.4 x 0.8 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image shows a metallic pen with a rounded end coated in gray material. The body is cylindrical and has a smooth surface.
Preview: Soldering tip chisel-shaped XNT C
Preview: The image shows a long, silver cylinder with an open area on one side. The cylinder is smooth and has a narrow, white connector.
Preview: The image displays a technical drawing of a cylindrical object with a tapered end. It has a length of 27 mm and a diameter of 3.2 mm. A side view is also shown.
Preview: The image shows a simple, elongated pen with a pointed tip on one end and a flat, rectangular body. The pen is outlined, hollow inside.
Soldering tip chisel-shaped XNT C
XNT C chisel tip 3.2 x 0.8 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image shows a silver, cylindrical object with a sharp, conical tip. It has a smooth, metallic surface and is lying horizontally on a flat surface.
Preview: Soldering tip chisel-shaped XNT H
Preview: The image shows a shiny, metallic cylinder with an open end. It is slender and has an elongated shape. At one end, a thin wire is attached.
Preview: The image displays a technical drawing of an object with dimensions. It has a tip and a cylindrical body. Diameters vary between 0.4 and 0.8.
Soldering tip chisel-shaped XNT H
XNT H chisel tip 0.8 x 0.4 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image shows a silver, cylindrical object with a conical tip. The body is smooth and round, the tip is slightly rounded and has a dark color.
Preview: Soldering tip chisel-shaped XNT K
Preview: The image shows a cylindrical, silver-colored metal object with an open, hollow end. It is elongated and has a smooth surface. At the end, a thin wire is attached.
Preview: The image displays technical drawings of an object. On the left side, there is a side view with a length of 28 mm and a pointed shape. On the right, there is a top view with diameters of 1.2 mm and 0.4 mm.
Soldering tip chisel-shaped XNT K
XNT K chisel tip 1.2 x 0.4 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15704

8.40 CHF
Show product
The image shows a silver, cylindrical pen. It has a sharp writing tip on one end and is smooth and shiny. The shape is simple and modern.
Preview: Soldering tip chisel-shaped slim XNT 1SC 0.4 mm
Preview: The image shows a slim, cylindrical metal body that shines silver. One end is open, while the other end has a wire attached to it.
Preview: The image displays a technical drawing of an elongated, pointed object. The dimensions are 27 mm in length, 0.4 mm in diameter, and a circular opening of 0.15 mm.
Soldering tip chisel-shaped slim XNT 1SC...
XNT 1 SC chisel tip slim 0.4 x 0.15 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15712

8.40 CHF
Show product
The image shows a silver, metallic tool attachment with a flat, angled edge. The handle is cylindrical and ends in a wider, sharp area.
Preview: Soldering tip blade tip sloped XNT KN
Preview: The image shows a technical design of a tool, likely a blade. It has a length of 33 mm and a diameter of 2 mm on one side. The blade is angled to a point.
Preview: The image shows a cylindrical, silver metal cylinder with an open side. It is elongated and has a thin connecting hose protruding from one side.
Soldering tip blade tip sloped XNT KN
XNT KN blade tip beveled 2.0 mm
+++ individually packaged ++
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15759

10.10 CHF
Show product
The image shows a silver, cylindrical tool with a curved end. It has a smooth surface and is made of metal, although the end appears slightly contaminated.
Preview: Soldering tip chisel-shaped bent 30° XNT AX
Preview: The image displays a technical drawing of a tool with a length of 28 mm and a wide, curved tip. The grip area is cylindrical, visible from the side. To the right is a top view.
Preview: The image shows a cylindrical metal body that is silver-colored. One end is open, while the other end has a narrow, elongated connector. The body is smooth and has a uniform shape.
Soldering tip chisel-shaped bent 30° XNT...
XNT AX soldering tip 1.6 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16508

11.30 CHF
Show product
The image shows a silver, cylindrical tool with a pointed opening facing downwards. It appears smooth and has a metallic surface. It could be some type of spray nozzle.
Preview: Soldering tip round bent 30° XNT 1X
Preview: The image displays a simple, narrow tool handle with a slanted tip. The dimensions are marked: 27.5 mm length and 70 mm width. To the right is a circular view.
Preview: The image displays a cylindrical, silver-colored metal body with one open end. A thin wire protrudes from the other end. The body appears smooth and has no visible notches.
Soldering tip round bent 30° XNT 1X
XNT 1X soldering tip 0.4 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16511

11.30 CHF
Show product
The image shows a silver, pointed metal pin with a rounded, gray tip. The body is slender and tapers towards the tip, ideal for drawing or writing.
Preview: Soldering tip chisel-shaped long XNT L
Preview: The image shows a silver pen with a sharp, gray tip. The body is elongated and smooth, ideal for precise writing or drawing.
Preview: The image shows an elongated, narrow object with a wide base that tapers to a point at the front. The surface is smooth and monochromatic, without visible details.
Soldering tip chisel-shaped long XNT L
XNT L soldering tip 2.0 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16514

8.40 CHF
Show product
The image shows a silver, pointed writing instrument. It has a slender shape reminiscent of a pencil, and is made of metal. The tip is very narrow and slightly rounded.
Preview: Soldering tip conical long XNT S
Preview: The image displays a silver, cylindrical metal object. At one end, a black hole is visible, and at the other end, a white cable extends.
Preview: The image displays technical drawings of an object: on the left, an elongated, tapered part with a length of 27 mm, on the right, a top view with a diameter of 0.5 mm.
Soldering tip conical long XNT S
XNT S soldering tip 0.4 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16523

8.40 CHF
Show product
The image shows a silver pen with a sharp, gray tip. The body is elongated and smooth, ideal for precise writing or drawing.
Preview: Soldering tip round XNT AS
Preview: The image displays a technical drawing of a metallic object, approximately 29.5 mm long and 1.6 mm thick. It has a pointed shape and a round cross-sectional view.
Soldering tip round XNT AS
XNT AS soldering tip 1.6 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15714

8.40 CHF
Show product
The image depicts a short, cylindrical object made of metal. One end is rounded and gray, while the other part is shiny and silver. It could be a tool or a part of a device.
Preview: Soldering tip round XNT CS
Preview: The image displays a simplified, linear representation of a pen. It has an elongated, rectangular shape with a pointed, conical tip at the end.
Soldering tip round XNT CS
XNT CS soldering tip 3.2 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
15714

8.40 CHF
Show product
The image shows a silver, metallic attachment with a narrow, pointed shape at one end. The body is cylindrical and slightly rounded, ideal for precise applications.
Preview: Soldering tip chisel-shaped bent 30° XNT HX
Preview: The image displays a technical drawing of a writing instrument with a curved end. On the left, dimensions of 0.8 and 0.4 are indicated, representing the size of the tip and the mouthpiece.
Soldering tip chisel-shaped bent 30° XNT...
XNT HX soldering tip 0.8 mm
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16508

11.30 CHF
Show product
The image shows a shiny, metallic tool with a cylindrical handle and a pointed, curved tip. It has a smooth surface and is designed for precise applications.
Preview: Soldering tip chisel-shaped bent 30° XNT 4X
Preview: The image displays a technical drawing of a tool. It features an elongated handle and a curved tip. The dimensions are provided, with a diameter of 0.12 cm.
Soldering tip chisel-shaped bent 30° XNT...
XNT 4X soldering tip 1.2 mm
!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16508

11.30 CHF
Show product
The image shows a metallic tool with a long, narrow, slightly curved tip. The handle is cylindrical and has a smooth, silver shine. It is slim and ergonomically designed.
Preview: Soldering tip round bent 30° XNT 1SLX
Preview: The image displays a schematic tool with a curved end and a cylindrical handle. To the right, there is a view featuring a small hole with a diameter of 0.4.
Soldering tip round bent 30° XNT 1SLX
XNT 1SLX soldering tip 0.4 mm

!!for WP65 and WXP 65 + WTP 90 !!
dpvlink
16511

11.30 CHF
Show product
The image shows a silver, cylindrical object with a pointed, cone-like tip. It has a smooth surface and is relatively narrow.
Preview: Soldering tip chisel-shaped slim XNT 1SC 0.3 mm
Preview: The image displays a technical drawing of a pin with a length of 27 mm and a diameter of 0.3 mm. There is also a side view that illustrates the shape of the pin.
Soldering tip chisel-shaped slim XNT 1SC...
XNT 1SCNW chisel-shaped tip slim 0.3 mm x 0.1 mm
+++ individually wrapped +++
!! suitable for WP65 + WXP 65 + WTP 90!
dpvlink
15712

10.10 CHF
Show product
The image shows a metallic tool with a straight, cylindrical handle and a curved tip. The surface is smooth and shiny, and the tip is slightly flattened.
Preview: Soldering tip chisel-shaped bent 30° XNT BX
Preview: The image shows a technical drawing of a component. On the left side, there is a side view with a curved shape. On the right, a top view of the tip is shown, which is round. Dimensions are provided.
Soldering tip chisel-shaped bent 30° XNT...
XNT BX soldering tip 2.4 mm x 0.8 mm
!! suitable for WP65 + WXP 65 + WTP 90!
dpvlink
16508

8.40 CHF
Show product

Spares

The image shows a soldering iron with a long, silver handle and a narrow, metallic soldering tip. A black cable runs from the bottom of the handle.
WTP 90 soldering iron 90 W
WTP 90 soldering iron 90W, 24 V
with Power Response heating technology
suitable soldering tips XNT + THM series
dpvlink
19986

267.40 CHF
Show product
The image shows a black device with a digital display indicating a temperature of 350 °C. It has push buttons and a prominent "Weller" logo on the front.
Preview: WT 1 Supply unit
Preview: The image shows a compact, rectangular device with a smooth, blue top and vertical, black cooling fins on the sides. There is a connector on the back.
Preview: The image displays a modern, rectangular device in two colors: the top is light blue and the bottom is black. The top features a ridged pattern, and there are two ports visible on the side.
Preview: The image shows a compact, rectangular device in light blue and black. The top features a grid-like structure with many small bumps. Below, there are buttons and a display.
Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
WT 1 Supply unit
WT 1 / power supply unit 1-channel, 95 W, 230 V

>>>WT WellerTechnology Line<<<
dpvlink
19954

289.50 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 589
Complete Catalog 2023 - 2024

Product Family

WT 1 Soldering station sets

The soldering station sets with the supply unit WT 1 are professional complete solutions that are ideal for various demanding soldering applications in electronics production, repair and prototype development. In addition to the supply unit, these 4 sets contain various soldering irons for different applications as well as matching soldering tips and safety rests.

Set WT 1010: WTP 90 hybrid soldering iron with power response technology, XNT A soldering tip and WSR 200 safety rest
Set WT 1012: WSP 80 soldering iron with Silver-Line heating element technology for all standard applications, LT-B soldering tip and WSR 201 safety rest
Set WT 1013: WP 90 soldering iron with Silver-Line heating element technology for all standard applications, LT-B soldering tip and WSR 201 safety rest
Set WT 1014: WSP 80 Robust soldering iron with Silver-Line heating element technology for all standard applications and WSR 201 safety rest

Features:

  • 1-channel supply unit (95 W) in a set with soldering iron, soldering tip and safety rest
  • Intuitive operation thanks to clear menu navigation
  • Graphic LC display with backlighting
  • High functionality and flexibility - large number of tools can be connected
  • Automatic switch-off with integrated usage sensor in the tool
  • Housing cover can be used as an additional shelf
  • OFF time, process window, locking function, offset
  • Potential equalization via 3.5 mm jack socket on the back of the device



Article image
Article description
included soldering iron
Safety rest
suitable soldering tip series
Power
Channels
Price
Compare
534.366.99 - WT 1010 set soldering station
534.366.99
WT 1010 set soldering station
WTP 90
WSR 200
XNT
95 W
1
525.35 CHF
534.406.99 - WT 1012 set soldering station
534.406.99
WT 1012 set soldering station
WSP 80
WSR 201
LT
95 W
1
442.20 CHF
534.416.99 - WT 1013 set soldering station
534.416.99
WT 1013 set soldering station
WP 80
WSR 201
LT
95 W
1
442.20 CHF
534.426.99 - WT 1014 set soldering station
534.426.99
WT 1014 set soldering station
WSP 80 robust
WSR 201
LT
95 W
1
452.70 CHF
Show Compare List (0)

This product is compatible with (for example):

The image shows a metallic device with a round, hollow center. It has cooling fins on the sides and is connected to a cable. It might be a technical device.
Soldering bath WSB 80
WSB 80 soldering bath 24V / 80W
(can be connected to all Weller 80 Watt stations)
!! suitable for lead-free solder !!
dpvlink
3819

422.20 CHF
Show product
The image displays a soldering station. At the top, there is a holder for a soldering iron, below which are a sponge and golden metal wool for cleaning. A silver soldering iron is connected.
WTP 90 Soldering iron set
WTP 90 set soldering iron 90W, 24 V
with safety rest WSR 200
dpvlink
19986

306.40 CHF
Show product
The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL
Zero Smog TL solder fume extraction unit
with filter level display
120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,059.20 CHF
Show product
The image shows a compact, square device with a white upper part and a black lower part. At the top, there is a round outlet and a lid. On the front, there are buttons and a display.
Zero Smog TL with gas filter
Zero Smog TL solder fume extraction unit
with gas filter art. 587.359.38
power 120 W , 220-240V - 50/60 Hz.
dpvlink
20593

1,146.60 CHF
Show product
The image displays a gray device with a rounded lid and a hose that curves upward in an arch-like shape. The hose features a wide, open nozzle.
Zero Smog TL Kit 1 FN
Zero Smog TL Kit 1 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- FT91013699 solder fume extraction unit Zero-Smog TL
- FT91000033 ZSRS Zero Smog Remote Switch
- 0F10 Flexible extraction arm
- ALFA ALFA funnel nozzle
- shut-off valve with table clamp
- 700-3051-ESD suction hose 3 m
dpvlink
20604

1,286.60 CHF
Show product
The image shows a device with two flexible hose arms extending from a square casing on a table. The hoses are black and round at the ends.
Preview: Zero Smog TL Kit 2 SN
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named
Zero Smog TL Kit 2 SN
Zero Smog TL Kit 2 SN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x FT-NL metal nozzle sloped diameter 60 mm
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1,284.45 CHF
Show product
The image shows a device with two long, flexible hose arms extending from a rectangular casing on a table. The hoses are black and curved.
Preview: Zero Smog TL Kit 2 FN
Preview: The image displays a glossy black device with a button on the front and a cable extending to the right. It is a remote control named
Zero Smog TL Kit 2 FN
Zero Smog TL Kit 2 FN solder fume extraction unit
with filter level display
power 120 W , 220-240V - 50/60 Hz.
consisting of:
- 1x FT91013699 solder fume extraction unit Zero-Smog TL
- 1x FT91000033 ZSRS Zero Smog Remote Switch
- 2x 0F15 Flexible extraction arm
- 2x ALFA ALFA funnel nozzle
- 2 x 587.628.46 mounting clamp diameter 63 mm
dpvlink
20604

1,298.15 CHF
Show product

This product is similar to:

The image shows a soldering iron with a long, silver handle and a narrow, metallic soldering tip. A black cable runs from the bottom of the handle.
WTP 90 soldering iron 90 W
WTP 90 soldering iron 90W, 24 V
with Power Response heating technology
suitable soldering tips XNT + THM series
dpvlink
19986

267.40 CHF
Show product
The image shows a black device with a digital display indicating a temperature of 350 °C. It has push buttons and a prominent "Weller" logo on the front.
Preview: WT 1 Supply unit
Preview: The image shows a compact, rectangular device with a smooth, blue top and vertical, black cooling fins on the sides. There is a connector on the back.
Preview: The image displays a modern, rectangular device in two colors: the top is light blue and the bottom is black. The top features a ridged pattern, and there are two ports visible on the side.
Preview: The image shows a compact, rectangular device in light blue and black. The top features a grid-like structure with many small bumps. Below, there are buttons and a display.
Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
WT 1 Supply unit
WT 1 / power supply unit 1-channel, 95 W, 230 V

>>>WT WellerTechnology Line<<<
dpvlink
19954

289.50 CHF
Show product
The image displays a soldering station. At the top, there is a holder for a soldering iron, below which are a sponge and golden metal wool for cleaning. A silver soldering iron is connected.
WTP 90 Soldering iron set
WTP 90 set soldering iron 90W, 24 V
with safety rest WSR 200
dpvlink
19986

306.40 CHF
Show product
