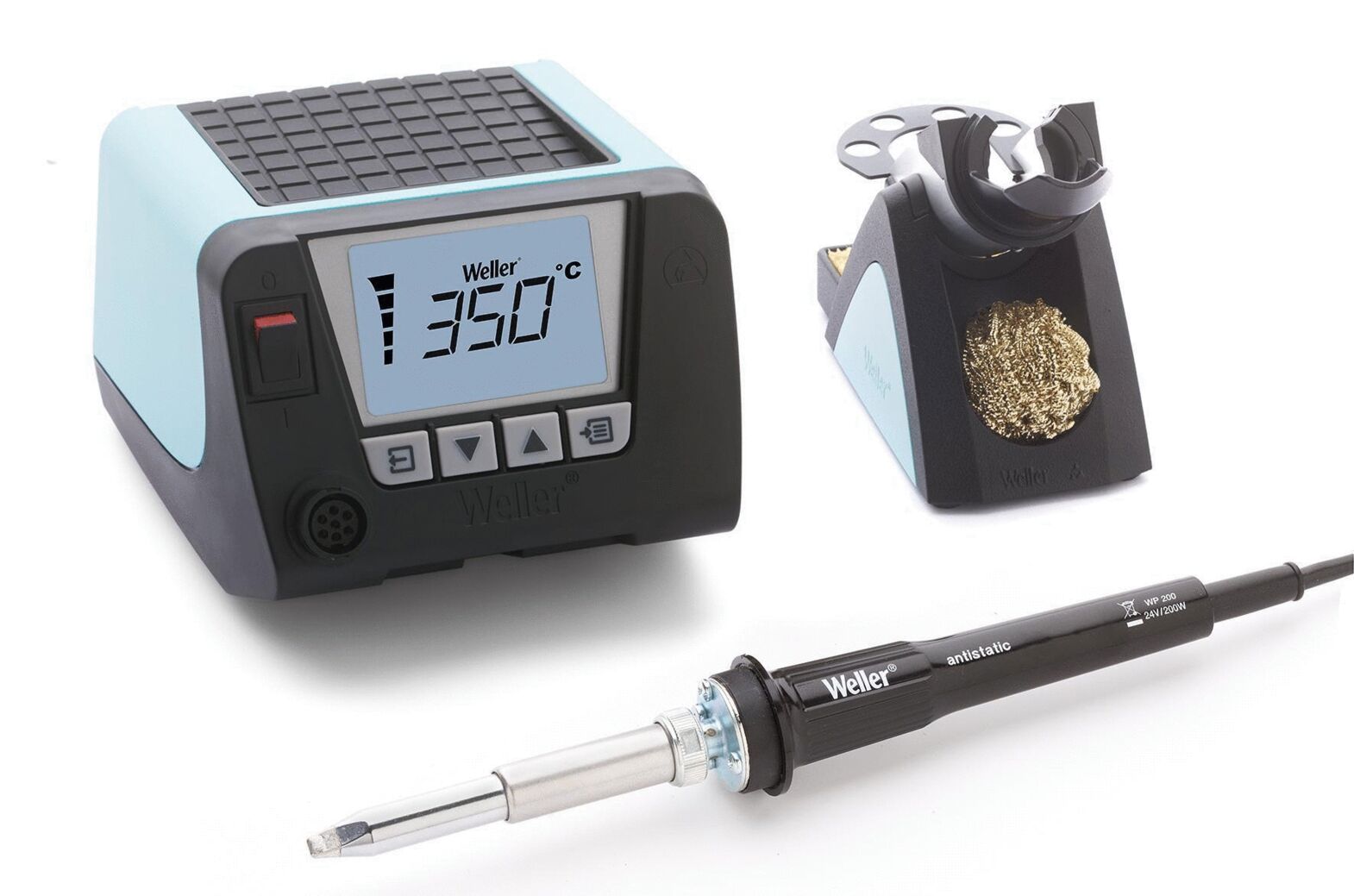

The image displays a soldering iron system. It consists of a control unit with a digital display and buttons, a soldering iron, and a holder. The holder includes a metal mesh.
The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Preview: The image displays a soldering iron system. It consists of a control unit with a digital display and buttons, a soldering iron, and a holder. The holder includes a metal mesh.
Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
WT 1011H Set soldering station
(Product No.: 534.396.99)
The image displays a soldering iron system. It consists of a control unit with a digital display and buttons, a soldering iron, and a holder. The holder includes a metal mesh.
The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Mobile Preview: The image displays a soldering iron system. It consists of a control unit with a digital display and buttons, a soldering iron, and a holder. The holder includes a metal mesh.
Mobile Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Notice / Inquire

WT 1011H Set soldering station

WT 1011H Set soldering station

dpvlink:
19962
included soldering iron:
WP 200
Safety rest:
WSR 202
suitable soldering tip series:
XHT
Power:
150 W
Channels:
1
Properties:
Further product information

662.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WT 1011H Set soldering station

The WT 1011H Set from Weller is a professional soldering station specifically designed for demanding soldering tasks in electronics manufacturing, repair, and prototype development. The power unit offers a performance of 150 watts and supports a temperature range from 50 to 550 °C, allowing for precise handling.
The operation is digital via a graphical LC display with backlight, providing an intuitive menu navigation. The set is distinguished by its high functionality and allows the connection of a variety of tools. Additionally, the housing cover can be used as an extra shelf, and various functions such as OFF time, process window, and locking are integrated.
The station is ESD-safe and offers a temperature accuracy of ±9 °C and stability of ±2 °C. With the appropriate soldering tips from the XHT series and further expandable accessories, the WT 1011H Set offers a flexible and ergonomic solution for professional soldering tasks.



Included in the delivery:
534.356.99 WT 1H Power Unit (1-channel, 150 Watt)
529.199.99 WP 200 High-Power Soldering Iron with XHT D Tip
515.176.99 WSR 202 Safety Holder

included soldering iron
included soldering iron
WP 200
Safety rest
Safety rest
WSR 202
suitable soldering tip series
suitable soldering tip series
XHT
Power
Power
150 W
Channels
Channels
1
Voltage
Voltage
230 V
Height
Height
101 mm
Length
Length
149 mm
Width
Width
138 mm
ESD
ESD
yes
Control
Control
digital
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature range
Temperature range
50 - 550 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

568.55 CHF
Show product
The image displays a technical drawing of a cartridge. On the left is the side view with the length "L" and a pointed shape. On the right, the top view, an oval with the dimensions "A" and "B".
Soldering tip chisel-shaped XHT D
XHT D chisel tip 5 x 1.2 mm
dpvlink
14768

17.90 CHF
Show product
The image shows a technical drawing of an object with a sharp, elongated shape. On the left side is the side view, on the right the top view with dimensions.
Soldering tip chisel-shaped XHT E
XHT E chisel tip 7.6 x 1.5 mm
dpvlink
14768

17.90 CHF
Show product
The image shows a schematic representation of a stylus. It has an elongated shape with a broad, flat tip and a narrower grip. The entire stylus is positioned upright.
XHT measuring tip
XHT measuring tip for WP 200
dpvlink
14771

32.60 CHF
Show product
The image shows a schematic representation of a projectile. On the left, a side view with a pointed shape, and on the right, a top view with diameter specifications.
Soldering tip chisel-shaped XHT C
XHT C chisel tip 3.2 x 1.2 mm
dpvlink
14768

18.00 CHF
Show product
The image shows a schematic representation of a cartridge. On the left, it is viewed from the side and on the right from above. The cartridge is elongated with a rounded tip and has a diameter.
Soldering tip chisel-shaped XHT F
XHT F chisel tip 9.3 x 2.0 mm
dpvlink
14768

15.55 CHF
Show product

Spares

The image shows a soldering iron with a black handle and a metallic tip. The iron has a power cord attached to the handle.
WP 200 soldering iron 200 W
WP 200 soldering iron 200W
with soldering tip XHT 5 x 1.2 mm
dpvlink
8307

306.40 CHF
Show product
The image displays a black soldering iron stand with a digital display. There are buttons for temperature adjustment. The temperature display reads 350 °C. The manufacturer name "Weller" is visible.
Preview: WT 1H - Supply unit
Preview: The image shows a compact device with a blue, rounded side and a black grid-like surface. It has a simple shape and could be some type of kitchen appliance or electronic equipment.
Preview: The image depicts a compact, square device with a smooth, blue top and a ridged back. A socket is visible on the bottom. It appears modern and functional.
Preview: The image shows a compact device in blue and black colors. It has a square, non-slip surface with many small bumps and several buttons and knobs on the front.
Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
WT 1H - Supply unit
WT 1H / power supply unit 1-channel, 150 W, 230 V
>>>WT WellerTechnology Line<<<
dpvlink
19980

409.60 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 590
Complete Catalog 2023 - 2024

Product Family

WT 1 soldering station sets

The soldering station sets with the 1-channel supply unit WT 1H are professional complete solutions that are ideal for various demanding soldering applications in electronics production, repair and prototype development. The two sets combine the powerful WT 1H supply unit with various high-quality soldering irons and accessories to make the work process efficient and precise. .

Set WT 1010H: soldering iron WP 120 with Power Response heating element technology, soldering tip XT B and safety rest WSR 201
Set WT 1011H: soldering iron WP 200 with Power Response heating element technology, soldering tip XHT D and safety rest WSR 202

Features

  • 1-channel supply unit, 150 W, in a set with soldering iron and safety rest´
  • Intuitive operation thanks to clear menu navigation
  • Graphic LC display with backlighting
  • High functionality and flexibility - large number of tools can be connected
  • Housing cover can be used as an additional shelf
  • OFF time, process window, locking function, offset
  • Potential equalization via 3.5 mm jack socket on the back of the device


Article image
Article description
included soldering iron
Safety rest
suitable soldering tip series
Power
Channels
Price
Compare
534.386.99 - WT 1010H set soldering station
534.386.99
WT 1010H set soldering station
WP 120
WSR 201
XT
150 W
1
578.00 CHF
534.396.99 - WT 1011H Set soldering station
534.396.99
WT 1011H Set soldering station
WP 200
WSR 202
XHT
150 W
1
662.25 CHF
