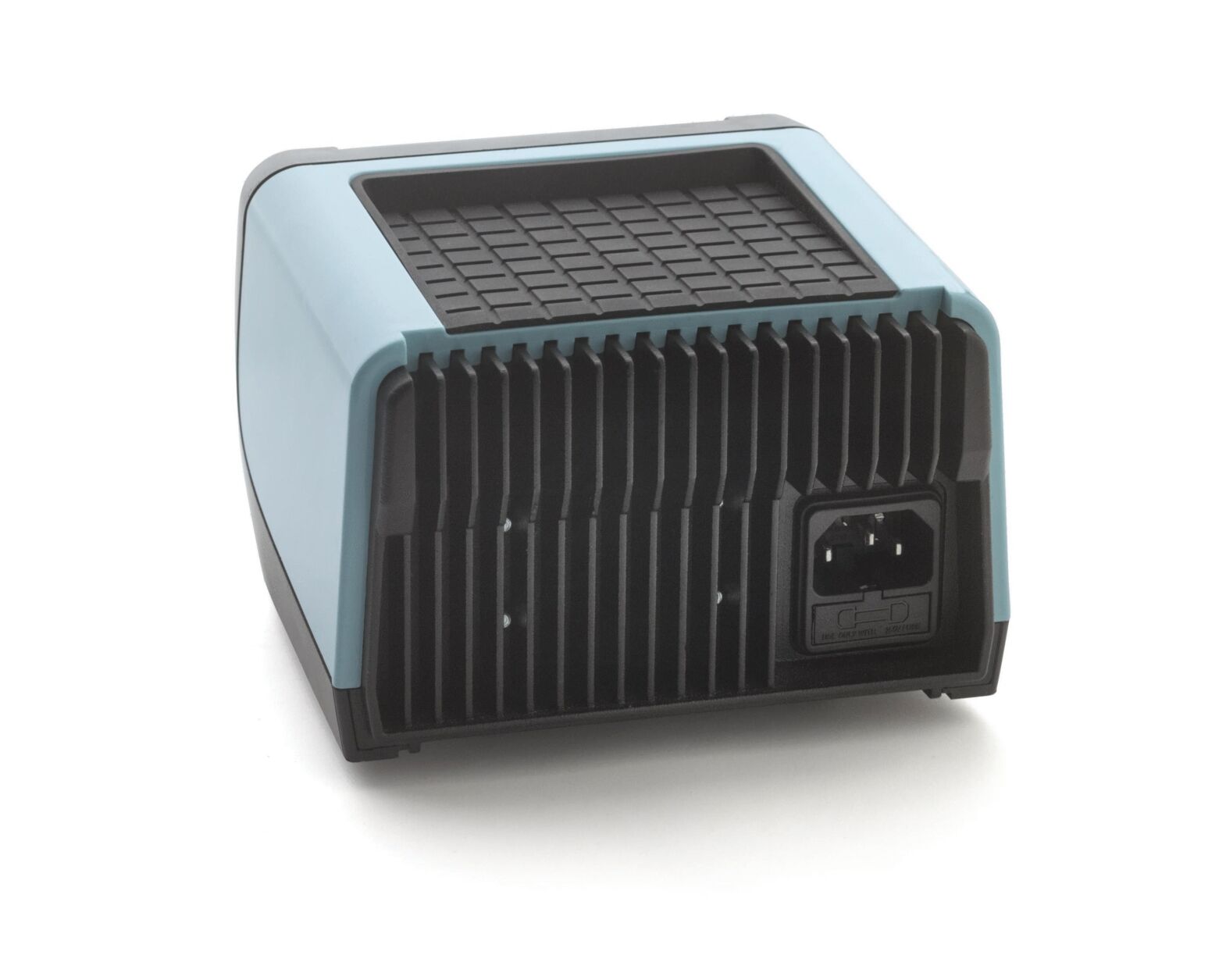

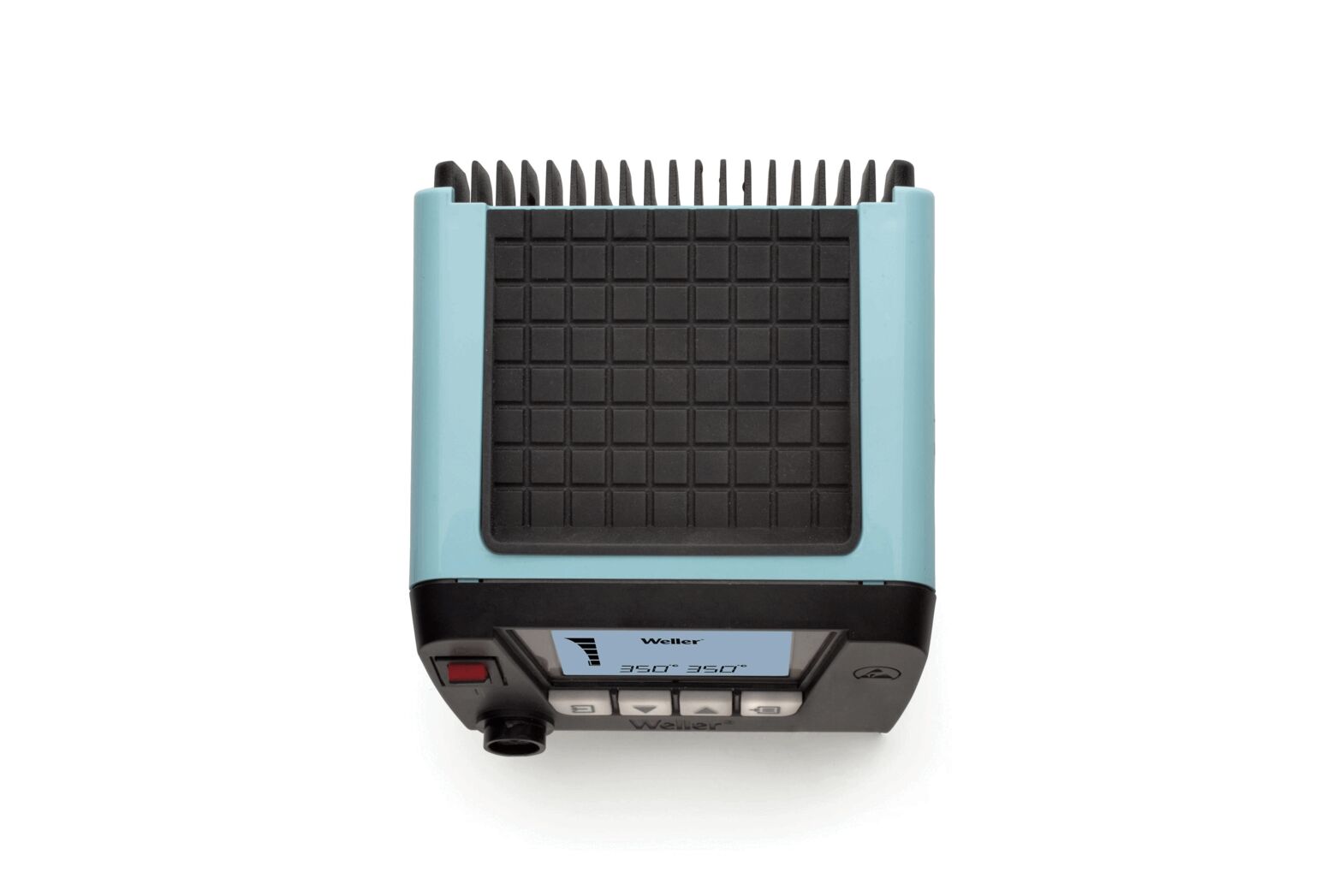

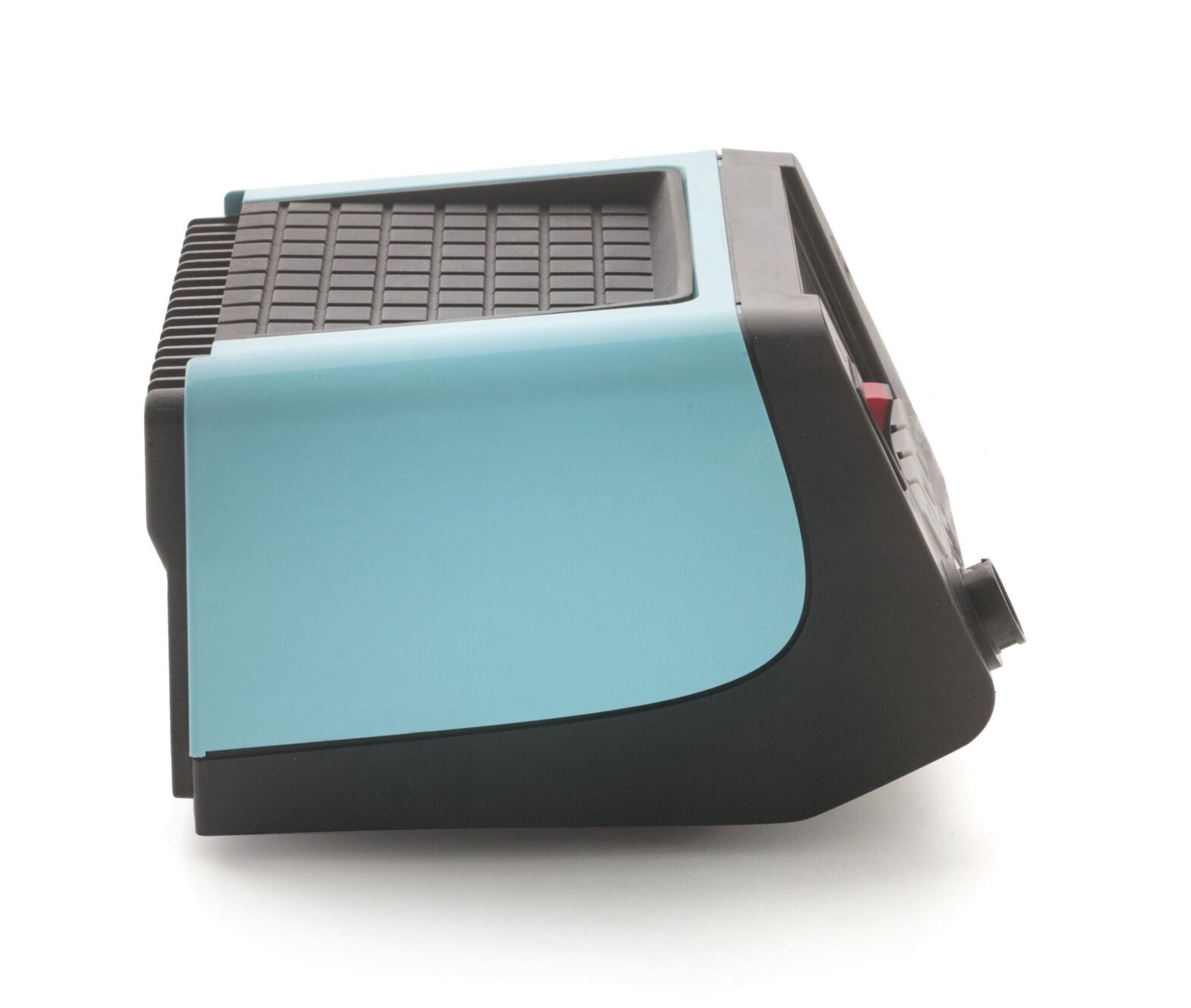

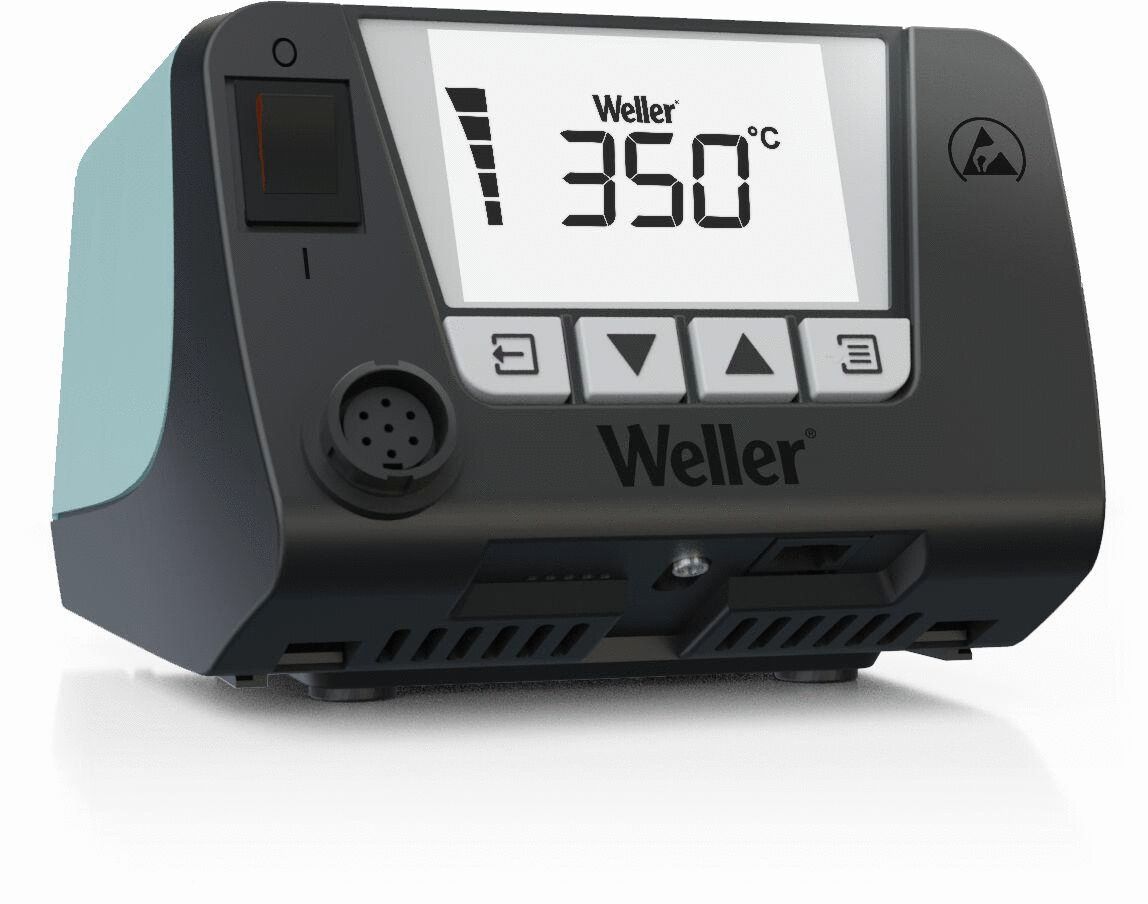

WT 1H - Supply unit
(Product No.: 534.356.99)
The image displays a black soldering iron stand with a digital display. There are buttons for temperature adjustment. The temperature display reads 350 °C. The manufacturer name "Weller" is visible.
The image shows a compact device with a blue, rounded side and a black grid-like surface. It has a simple shape and could be some type of kitchen appliance or electronic equipment.
The image depicts a compact, square device with a smooth, blue top and a ridged back. A socket is visible on the bottom. It appears modern and functional.
The image shows a compact device in blue and black colors. It has a square, non-slip surface with many small bumps and several buttons and knobs on the front.
The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Mobile Preview: The image displays a black soldering iron stand with a digital display. There are buttons for temperature adjustment. The temperature display reads 350 °C. The manufacturer name "Weller" is visible.
Mobile Preview: The image shows a compact device with a blue, rounded side and a black grid-like surface. It has a simple shape and could be some type of kitchen appliance or electronic equipment.
Mobile Preview: The image depicts a compact, square device with a smooth, blue top and a ridged back. A socket is visible on the bottom. It appears modern and functional.
Mobile Preview: The image shows a compact device in blue and black colors. It has a square, non-slip surface with many small bumps and several buttons and knobs on the front.
Mobile Preview: The image shows a soldering station with a soldering tip, two digital control units, and a hot air device. The devices feature large, clear displays for temperature indication.
Notice

WT 1H - Supply unit

WT 1H - Supply unit

dpvlink:
19980
Width :
138 mm
Height :
101 mm
Length :
149 mm
Power:
150 W
Channels:
1
Temperature range:
50 - 550 °C
Properties:
Further product information

409.60 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WT 1H - Supply unit

The WT 1H Supply Unit from Weller is a powerful, compact soldering control station with 150 watts of power, specifically designed for use in demanding soldering applications. This unit supports a variety of tools and offers flexible deployment options. The compact design makes the WT 1H ideal for use in small workspaces. It is perfect for soldering tasks where precision and reliability are crucial.

  • Intelligent soldering station with backward compatibility for WSD and WD soldering irons
  • High productivity (1-channel supply unit, 150 W)
  • High functionality and flexibility - a variety of tools can be connected
  • Language-neutral menu
  • Multifunctional graphic LCD display with backlight
  • Intuitive operation through clear menu navigation
  • Housing cover usable as additional storage
  • Automatic shutdown with integrated usage sensor in the tool
  • OFF time, process window, lock function, offset
  • ESD-safe
  • Grounding via 3.5 mm jack socket
  • Antistatic plastic housing



Width
Width
138 mm
Height
Height
101 mm
Length
Length
149 mm
Power
Power
150 W
Channels
Channels
1
Temperature range
Temperature range
50 - 550 °C
Voltage
Voltage
230 V
Bracket
Bracket
plastic, aluminum
ESD
ESD
yes
Control
Control
digital
Temperature accuracy +/-
Temperature accuracy +/-
9 °C
Temperature stability +/-
Temperature stability +/-
2 °C
Weight
Weight
3.0 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a silver, compact device with rounded edges. The top features a flat surface, while the bottom has a cable for power supply. The surface includes ventilation slots.
WHP 80 Preheating plate 80 W
WHP 80 - preheating plate 24 V / 80 W
heated surface 80 x 50 mm
temperature range 50 ° C - 200 ° C
dpvlink
3816

568.55 CHF

Spares

The image shows a black device with a digital display indicating a temperature of 350 °C. It has push buttons and a prominent "Weller" logo on the front.
WT 1 Supply unit
WT 1 / power supply unit 1-channel, 95 W, 230 V

>>>WT WellerTechnology Line<<<
dpvlink
19954

289.50 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 590
Complete Catalog 2023 - 2024

Product Family

WT 1H Supply unit

Article image
Article description
Width
Height
Length
Power
Channels
Temperature range
Price
Compare
534.356.99 - WT 1H - Supply unit
534.356.99
WT 1H - Supply unit
138 mm
101 mm
149 mm
150 W
1
50 - 550 °C
409.60 CHF
Show Compare List (0)
