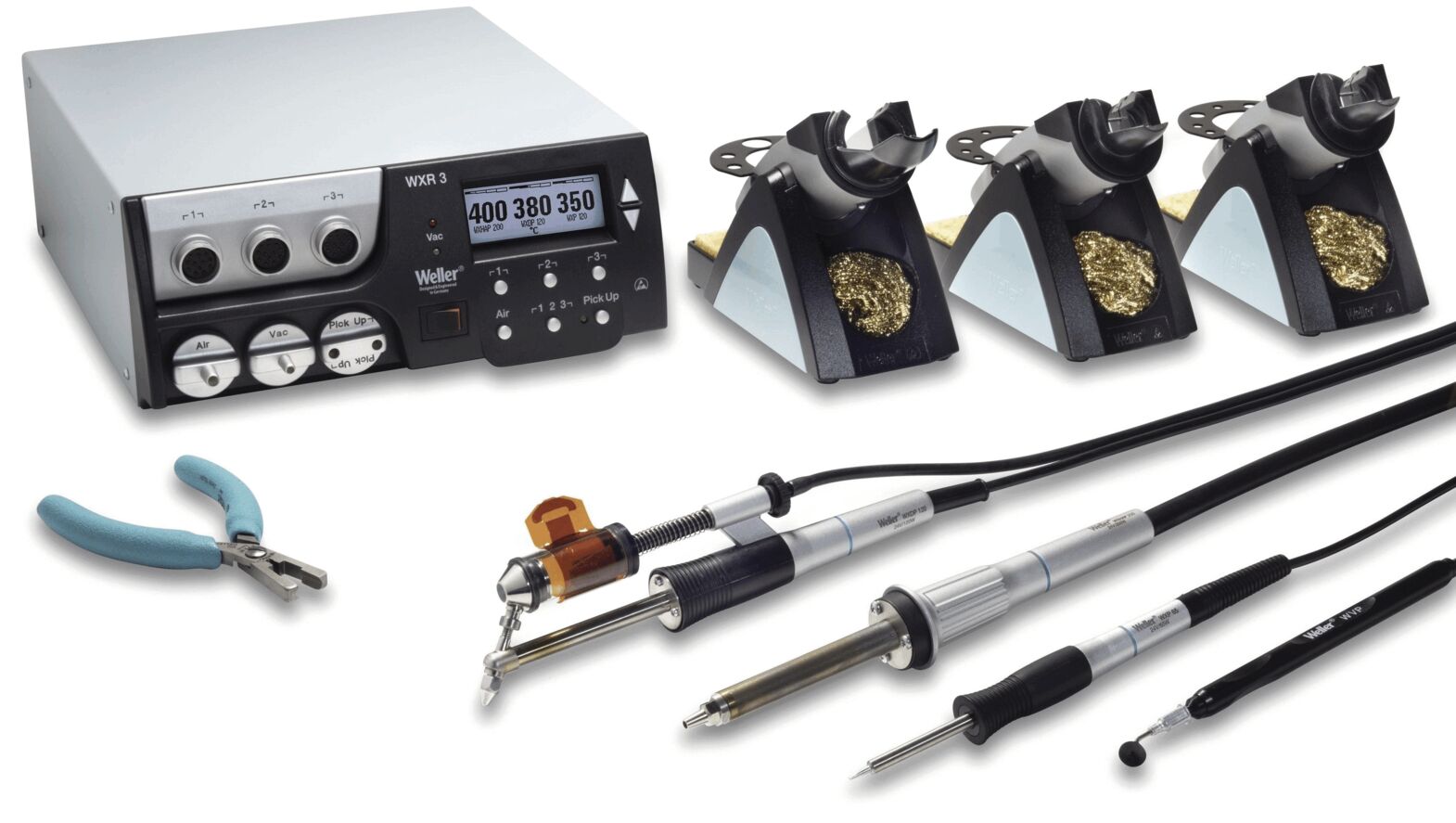

The image shows a soldering device with a digital control panel and several soldering tips. Next to it are pliers and cables. The entire setup is intended for soldering work in electronics.
WXR 3030 Rework station multi-digital
(Product No.: 535.016.99)
The image shows a soldering device with a digital control panel and several soldering tips. Next to it are pliers and cables. The entire setup is intended for soldering work in electronics.
Notice

WXR 3030 Rework station multi-digital

WXR 3030 Rework station multi-digital

dpvlink:
18243
Properties:
Further product information

3,716.60 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WXR 3030 Rework station multi-digital

WXR 3030 Multidigital Desoldering Station
The WXR 3030 Multidigital Desoldering Station is a highly functional tool for efficient and clean removal of soldered joints, ideal for applications in electronics repair, prototyping, manufacturing, and training. This station features a three-channel supply unit WXR 3, which allows simultaneous operation of three soldering tools – the WXHAP 200 hot air pencil, the WXDP 120 desoldering iron, and the WXP 65 soldering iron. Intelligent power management and automatic tool detection enhance efficiency and ease of use. The antistatic enclosure of Class I and the possibility of potential equalization via a 3.5 mm jack socket ensure safety in operation.

Technical Specifications:
  • Dimensions: 273 x 235 x 102 mm (L x W x H)
  • Weight: approx. 6.7 kg
  • Power supply: 230 V, 50 Hz / 120 V, 60 Hz
  • Power consumption: 420 W (600 W)
  • Temperature range: 100° C - 450° C
  • Temperature accuracy / Temperature stability: ± 9° C tool-dependent (WXHAP ± 30° C)
  • Maximum flow rate per minute: 18 l hot air max. per minute: 15l

    The desoldering station is equipped with a backlit graphic display and a multilingual menu navigation, which further simplifies handling.

    Package Contents:
    535.006.99 WXR 3 Supply Unit
    527.119.99 WXHAP 200 Hot Air Pencil
    515.183.99 WSR 209 Safety Rest
    513.201.99 WXDP 120 Desoldering Iron
    515.181.99 WSR 207 Safety Rest
    587.658.01 PDN Desoldering Nozzle Pliers
    529.184.99 WVP Vacuum Pipette
    529.211.99 WXP 65 Soldering Iron
    515.175.99 WSR 201 Safety Rest

    Product number: 535.016.99
    • Automatic tool detection
    Automatic tool detection ensures that soldering stations and other systems identify the connected tool and make the optimum settings automatically.
    yes
    Channels
    Channels
    3
    Power
    Power
    420 / 600 W
    Voltage
    Voltage
    230 V
    Height
    Height
    102 mm
    Length
    Length
    273 mm
    Width
    Width
    235 mm
    ESD
    ESD
    yes
    Flow rate max. per minute
    Flow rate max. per minute
    18 l
    Hot air max. per minute
    Hot air max. per minute
    15 l
    Control
    Control
    digital
    Temperature accuracy +/-
    Temperature accuracy +/-
    9 °C
    Temperature range
    Temperature range
    100 - 450 °C
    Temperature stability +/-
    Temperature stability +/-
    2 °C
    Vacuum
    Vacuum
    0.7 bar
    Weight
    Weight
    6.7 kg
    Show accessories
    Pictograms
    ESD protective
    Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

    Accessories

    Accessories

    The image displays a square heating device with a metal grid on top and a digital display. It features a triangular warning sign and controls at the bottom.
    Infrared heating plate WHP 3000 - 1200W
    WHP 3000 infrared heating plate Weller
    Temperature range 50 ° C – 400 ° C
    heated surface 190 x 245 mm, 1200 W / 230V
    dpvlink
    9624

    2,179.45 CHF
    The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
    Preheating plate WHP 1000
    WHP 1000 preheating plate Weller
    heated area 220 x 150 mm, ESD-safe
    Temperature range 50 ° C - 300 ° C
    1000W / 230V
    dpvlink
    13775

    2,059.35 CHF
    The image displays a technical drawing of an object. On the left, there is a side view featuring a pointed shape with a narrow end. On the right, there is a top view showing a circular design.
    F06 flat nozzle for HAP 1, WXHAP 200
    FO 6 flat nozzle 12.0 x 1.5 mm
    dpvlink
    4255

    45.25 CHF
    The image displays a technical drawing of a small metal body with a sharp, conical shape and two prismatic connectors, one of which is threaded. Adjacent to it is a top view.
    F04 flat nozzle for HAP 1, WXHAP 200
    FO 4 flat nozzle 10.0 x 1.5 mm
    dpvlink
    4255

    43.20 CHF
    The image shows a schematic representation of a component, likely a nozzle or a fitting. There is a side view and a top view of the object.
    F02 flat nozzle for HAP 1, WXHAP 200
    FO 2 flat nozzle 8.0 x 1.5 mm
    dpvlink
    4255

    43.20 CHF
    The image displays a technical drawing of an object from two perspectives: from the side with a conical shape and from above in an oval shape. It is rendered in neutral gray tones.
    FD4 dual nozzle for HAP 1, WXHAP 200
    FD 4 dual nozzle D 1.5 x 10.0 mm
    dpvlink
    4255

    53.70 CHF
    The image shows a technical component in two views: a top view and a side view. It has a conical shape with two threaded connections in the middle.
    FD2 dual nozzle for HAP 1, WXHAP 200
    FD 2 dual nozzle D 1.5 x 8.0 mm
    dpvlink
    4255

    45.25 CHF
    The image shows a silver metal bolt with a ridged screw thread structure on one side and a flat surface on the other side.
    Q02 Hot air nozzle for HAP 1, WXHAP 200
    Q02 hot gas nozzle 6.0 x 6.5 mm
    dpvlink
    4255

    43.20 CHF
    The image shows a metallic part with a narrow, thread-like base and a flat top. It has a smooth, shiny surface and is quite compact.
    Q04 Hot air nozzle for HAP 1, WXHAP 200
    Q04 hot gas nozzle 6.0 x 9.0 mm
    dpvlink
    4255

    43.20 CHF
    The image displays a technical drawing of a component. On the left side, the side view is visible, on the right a top view, next to it is labeled "D04".
    D04 hot air nozzle for HAP 1, WXHAP 200
    D04 hot gas nozzle 10.5 x 10.5 mm
    dpvlink
    4255

    103.20 CHF
    The image shows a metallic object with a twisted thread and a flat, wide top. It has a sturdy, industrial shape and is shiny silver.
    Q06 Hot air nozzle 4-fold for HAP 1, WXHAP...
    Q06 hot gas nozzle 15.0 x 10.0 mm, 4-fold
    dpvlink
    4255

    103.20 CHF
    The image displays a technical drawing of a component in two views: from the side and from above. It shows a rectangular body with a continuous opening. Next to it is "D08".
    D08 Hot air nozzle 2-fold for HAP 1, WXHAP...
    D08 hot gas nozzle 15.0 x 10.0 mm 2-fold
    dpvlink
    4255

    103.20 CHF
    The image displays a technical drawing of an object. On the left, there is a side view featuring a narrow, rectangular body with a threaded eyelet. On the right, the top view is shown, which is square with a central hole. To the right of the object, the label "D06" is indicated.
    D06 Hot air nozzle for HAP 1, WXHAP 200
    D06 hot gas nozzle 10.0 x 13.0 mm
    dpvlink
    4255

    103.20 CHF
    The image shows a metallic component with a square shape. It has a smooth, shiny surface and a threaded connection on one side. The other side is flat and features a small, round indentation.
    Q08 hot air nozzle for HAP 1, WXHAP 200
    Q08 hot gas nozzle 12.5 x 15.0 mm
    dpvlink
    4255

    103.20 CHF
    The image displays a technical drawing of a cylindrical component with a screw thread. One view shows the side, the other the top labeled "D10".
    D10 Hot air nozzle for HAP 1, WXHAP 200
    D10 hot gas nozzle 10.0 x 18.0 mm
    dpvlink
    4255

    103.20 CHF
    The image depicts a silver-colored lamp socket with a threaded connector on top. The base has a rounded shape and a small hole in the center.
    Q10 hot air nozzle for HAP 1, WXHAP 200
    Q10 hot gas nozzle 18.0 x 18.0 mm
    dpvlink
    4255

    115.85 CHF
    The image shows a simple technical component: a hose with a connection. On the right is a schematic representation of a connection labeled "R08".
    R08 round nozzle, bent for HAP 1, WXHAP 200...
    R08 hot gas nozzle bent, D 2.5 mm
    dpvlink
    4255

    58.95 CHF
    The image shows a technical drawing of a component: a cylindrical pin with a nut on one side and a hexagonal base marked "R10".
    R10 round nozzle for HAP 1, WXHAP 200
    R10 hot gas nozzle straight, D 2.5 mm
    dpvlink
    4255

    43.20 CHF
    The image shows a cylindrical metal object that is threaded at one end. It has a smooth surface and a uniform diameter.
    R01 measuring nozzle for HAP 1, WXHAP 200...
    R01 measuring nozzle for device calibration
    dpvlink
    4255

    101.10 CHF
    The image shows a technical drawing of a component. On the left is a pointed element with a hexagonal head. On the right is the label "R04".
    R04 round nozzle for HAP 1, WXHAP 200
    R 04 hot gas nozzle D1,2
    dpvlink
    4255

    5.90 CHF
    The image displays a technical illustration of a component. On the left, there is a conical element with threading, and on the right, a hexagon labeled "R06".
    R06 round nozzle for HAP 1, WXHAP 200
    R 06 hot gas nozzle D3.0
    dpvlink
    4255

    5.90 CHF
    The image displays a technical drawing of a component that resembles a conical screw pin. Additionally, a hexagonal view labeled "R02" is shown.
    R02 round nozzle for HAP 1, WXHAP 200
    R 02 hot gas nozzle
    dpvlink
    4255

    7.90 CHF
    The image shows a black plug with a trapezoidal end that has five small, round contacts. On the top, it reads "Wieler". The plug has two metal connectors on the sides.
    WX adapter for PC
    WX adapter for PC
    to connect the WX station to a PC
    WX cable additionally required
    dpvlink
    14846

    26.35 CHF
    The image shows a black D-Sub connector with 9 pins. It has a rectangular shape and features two screws on the sides for mounting. A brand logo is visible at the top.
    WX adapter for WFE and WHP
    WX adapter for WFE/WHP
    to connect the WX station with WFE
    solder fume extraction systems or WHP
    pre-heating plate, WX cable additionally required
    dpvlink
    14846

    27.90 CHF
    The image shows a rectangular, silver-colored device with cooling fins and an attached cable connection. It has a smooth, flat surface in the middle and yellow warning symbols.
    WXHP 120 Preheating plate 120 W
    Preheating plate WXHP 120
    Temperature range 50 °C - 200 °C, 120 W, 24 V
    Can be connected to WX 1, WX 2, WXD 2,
    WXA 2, WXR 3
    dpvlink
    26711

    627.50 CHF

    Spares

    The image shows a tattoo device with a silver and black casing. It has an orange attachment and a long cable connection. The shape is slim and ergonomic.
    WXDP 120 desoldering iron 120 W
    WXDP 120 120W soldering iron
    dpvlink
    16463

    344.30 CHF
    The image shows a black hand tool with a long handle and a smooth, round tip. A wire-like cable extends from the handle. Smaller parts are laid out next to it.
    WVP vacuum pipette
    WVP vacuum pipette for WR3M
    dpvlink
    9893

    91.60 CHF
    The image shows a soldering iron with a black rubber handle and a silver metal body. The tip is pointed and metallic. A cable leads away from the iron.
    WXP 65 soldering iron 65 W
    WXP 65 soldering iron 65 W
    dpvlink
    15694

    269.55 CHF
    Documents

    Downloads

    Please log in to download datasheets! :
    There are several datasheets for this product. Please log in!

    Catalogues

    Page: 594
    Complete Catalog 2023 - 2024

    Product Family

    Article image
    Article description
    Automatic tool detection
    Channels
    Power
    Voltage
    Height
    Length
    Width
    Price
    Compare
    535.016.99 - WXR 3030 Rework station multi-digital
    535.016.99
    WXR 3030 Rework station multi-digital
    yes
    3
    420 / 600 W
    230 V
    102 mm
    273 mm
    235 mm
    3,716.60 CHF
