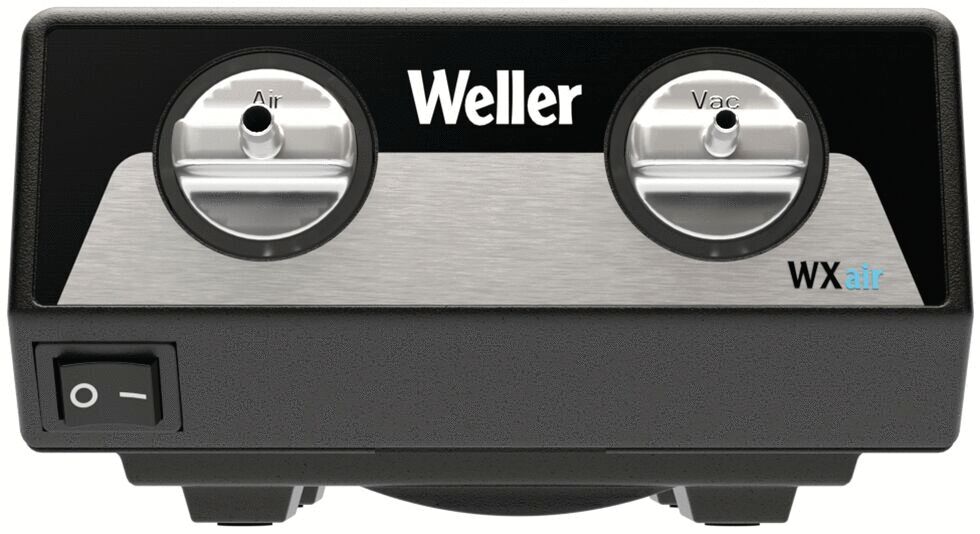

The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.

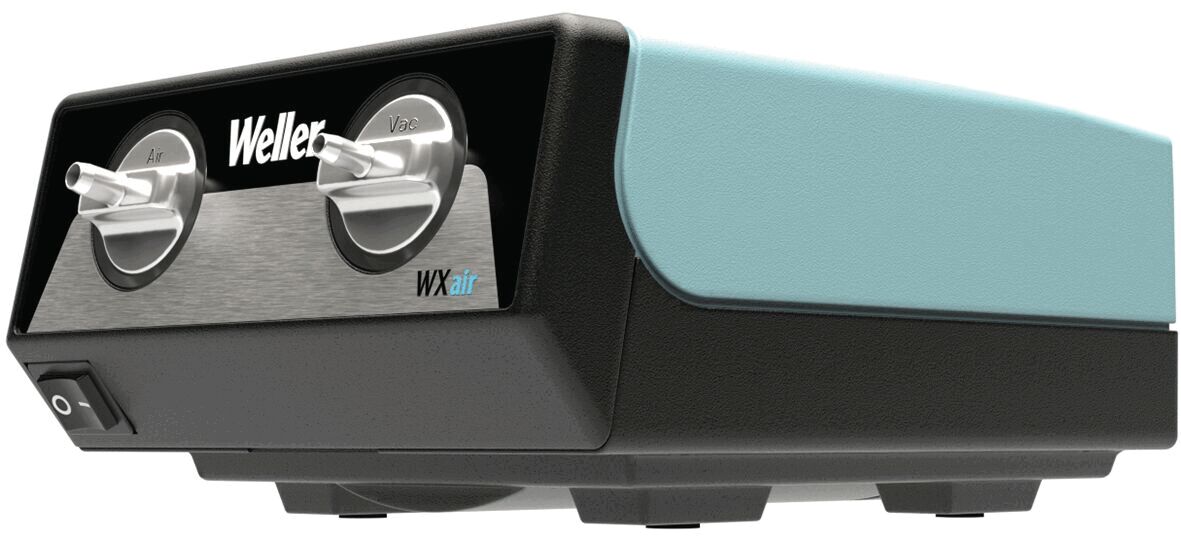

The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
Preview: The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.
Preview: The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
WXair Rework module
(Product No.: 534.526.99)
The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.
The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
Mobile Preview: The image displays a black device with a curved shape. At the top, there are two round buttons and the logo "Weller". On the bottom left, there is an on/off switch.
Mobile Preview: The image displays a black and turquoise device with two round knobs on the front. It reads "Weller WXair". It has a smooth surface and a rectangular shape.
Notice

WXair Rework module

WXair Rework module

dpvlink:
26826
Width :
154 mm
Height :
195 mm
Length :
87 mm
Power:
70 W
Flow rate max. per minute:
18 l
Properties:
Further product information

620.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WXair Rework module

The WXair Rework Module from Weller is an innovative solution for all rework applications, transforming a soldering station into a comprehensive rework station. This standalone 2-in-1 module with integrated high-performance rotary vane pump offers two channels - vacuum and air - and operates independently of external air sources.
With a power consumption of 70 W and a flow rate of 18 l/min at a vacuum of 70 kPA, the module is particularly efficient. Its dimensions are 195 x 154 x 87 mm and it weighs approximately 1.28 kg, making it ideal for use on workbenches where space is often limited. The stackable design allows the WXsmart soldering station to be placed directly on the WXair module, saving valuable workspace.
The module is backward compatible with existing Weller WX 1 and WX 2 soldering stations and allows cost-effective upgrading. It is compatible with the desoldering irons WXDP 120 and WXDV 120, as well as the hot air iron WXHAP 200. Replaceable filters facilitate maintenance and extend the pump's lifespan.
In addition to its technical sophistication, the WXair module is fully ESD-safe, ensuring safe handling of sensitive electronic components. Simple station setup and optional footswitch activation enable a smooth workflow.
Width
Width
154 mm
Height
Height
195 mm
Length
Length
87 mm
Power
Power
70 W
Flow rate max. per minute
Flow rate max. per minute
18 l
Fuse
Fuse
T4A
Voltage
Voltage
100 - 240 V
ESD
ESD
yes
Weight
Weight
1.28 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 588
Complete Catalog 2023 - 2024

Product Family

WXair Rework module

The world's first stand-alone 2-in-1 rework module with integrated high-performance vane pump

The Weller WXair is an optimized, stand-alone 2-in-1 rework module with two channels: vacuum and air. In combination with the WXsmart soldering station, it transforms it into an all-in-one rework solution that combines all rework applications in one station. Thanks to the integrated high-performance rotary vacuum pump, both the vacuum and air channels can be operated independently of an external air pressure supply. The WXair is compatible with two high-performance desoldering irons and one hot air iron and is backwards compatible with the existing WX soldering platform, offering maximum flexibility. With the WXair, any existing Weller WX soldering station can be easily converted into a hot air and desoldering station. It has been designed for both vacuum and hot air applications.

  • Upgrade to an all-in-one rework station: The WXair expands the WXsmart soldering station into a fully-fledged rework station that covers all soldering, desoldering and hot air applications.
  • Integrated high-performance pump: The built-in vane pump enables independent operation of vacuum and air channels without an external air supply.
  • Space-saving design: The stackable design allows the WXsmart soldering station to be placed directly on top of the WXair module, saving valuable bench space.
  • Easy maintenance: Replaceable filters extend the life of the pump and can be changed quickly and easily.
  • Backwards compatibility: The WXair module is compatible with existing Weller WX 1 and WX 2 soldering stations, enabling a cost-effective upgrade to a hot air and desoldering station.
  • Tool compatibility:
    Weller desoldering iron WXDP 120 with 120 W for horizontal use
    Weller desoldering iron WXDV 120 with 120 W for vertical use
    WXHAP 200 hot air iron with 200 W
  • Ease of use: Quick and easy station set-up and optional foot switch activation for a smooth workflow
  • ESD-safe: The WXair rework module and all connected tools are fully ESD-safe
