WXsmart Rework Set
WXsmart Rework Set

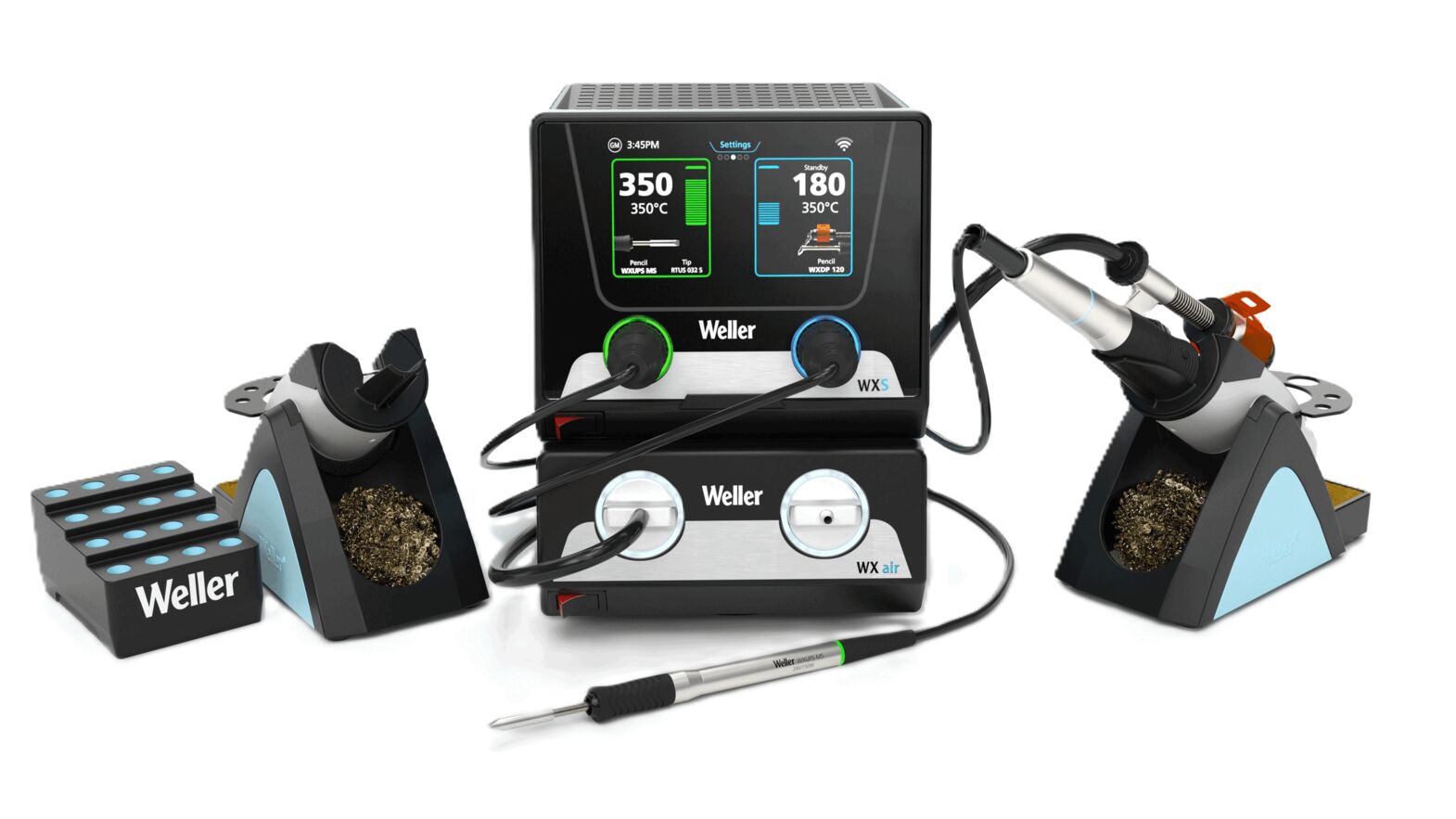

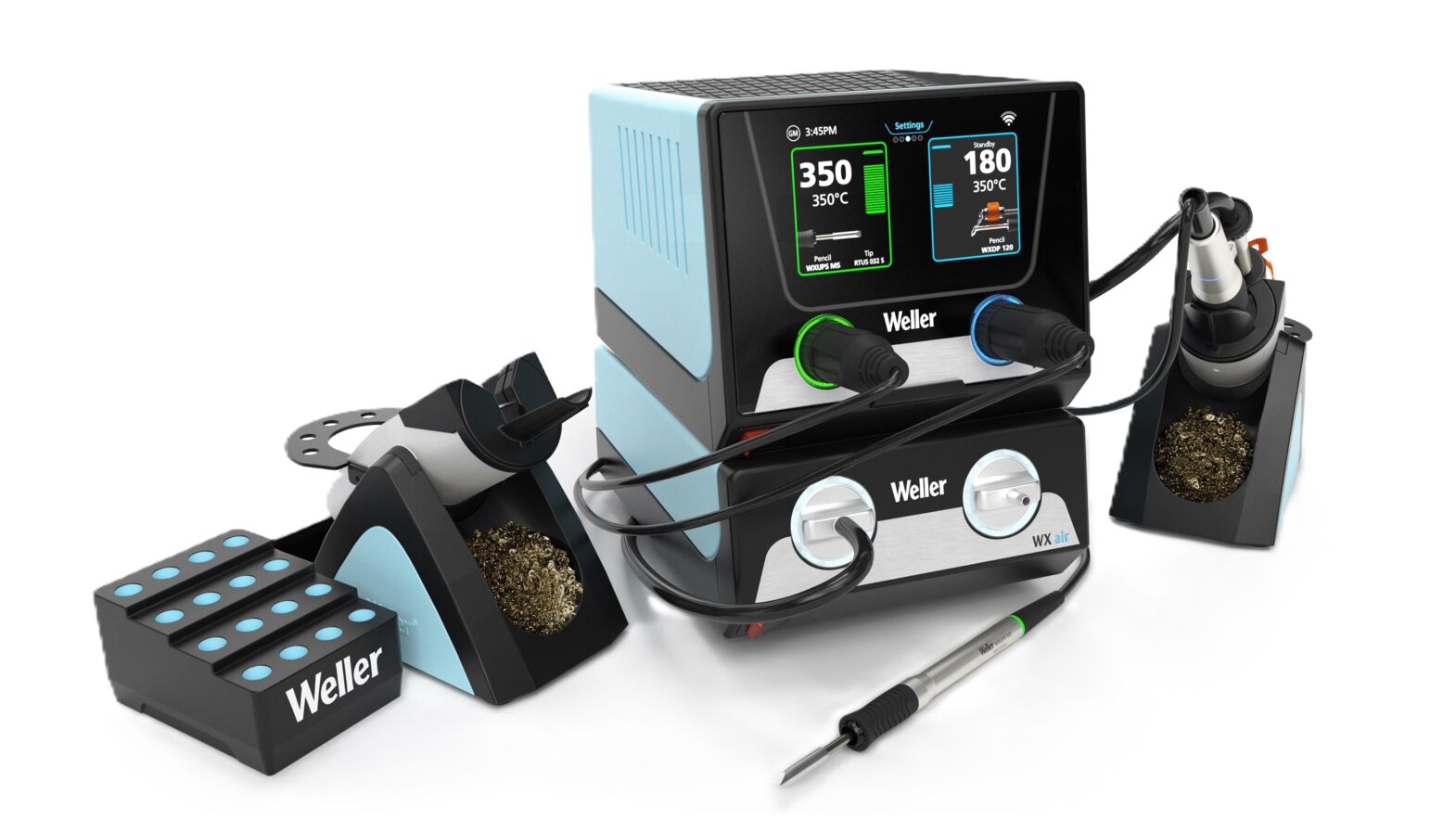

The WXsmart Rework Set is a high-performance soldering station specifically designed for demanding applications in industries such as electrical engineering, medical, automotive, and aerospace. This all-in-one station features a 2-channel soldering station with a power of 300 W and allows the connection of up to 12 tools, eliminating the need for an additional station. It offers fast heating times and optimal heat transfer for continuous workflows.
The station supports individual and repeatable soldering processes by allowing up to 10 parameter settings to be stored in the soldering iron. Integrated TLS encryption and two-factor authentication also ensure protection against cyber attacks. All components are fully ESD-safe.
Contents:
534.516.99 WXsmart, 2-channel soldering station, 300 W
529.235.99 Soldering iron WXsmart Series WXUPS MS 150 W
513.201.99 Desoldering iron WXDP 120 W
501.132.99 RTUS 032 S MS Soldering Tip 0.4 mm
534.502.99 ESD-safe Soldering Tip Holder WCTH
515.174.99 WSR 200 Safety Rest
515.181.99 WSR 207 Safety Rest
Details
- included soldering iron included soldering iron
- WXUPS MS / WXDP 120
- Safety rest Safety rest
- WSR 200 / WSR 207
- Power Power
- 300 W
- Channels Channels
- 2
- Height Height
- 142 mm
- Length Length
- 173 mm
- Width Width
- 153 mm
- ESD ESD
- yes
- Temperature range Temperature range
- 100 - 450 °C
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Product Family
WXsmart Rework Set
- All-in-one soldering station
All-in-one Wxsmart soldering station for all your high-performance applications. The station is equipped with 300 W and 2 soldering channels. A total of 12 tools can be connected to WXsmart. - Drive for efficiency, fast heat-up times
Weller's top-of-the-line active technology (cartridge) provides optimized heat transfer with a maximum power of 150W at 24V. The extremely fast heat-up time of 7 seconds provides excellent heat transfer and recovery time during the soldering process for a high-performance, continuous workflow. - Complete process control
Smart soldering tips with an individual serial number, smart tools for storing data parameters and a smart soldering station ensure complete process control and full traceability of calibration history. - Savings on investments
All-in-one soldering station for all your soldering needs with a high-performance tool of 150W, but different wattages can also be connected. The Wxsmart station is equipped with 300 W and 2 soldering channels. A total of 12 tools can be connected to the WXsmart. There is no need for an additional station. - Individual and repeatable soldering processes
Up to 10 parameter settings can be customized and stored in the soldering iron, including standby temperatures and automatic shutdown times. - Better quality of results
Managing your entire soldering process, from the soldering tip to the station, has never been easier and more productive than with the first all-in-one handheld soldering platform, WXsmart. With Total Process Control, WXsmart offers maximum connectivity and traceability with the highest quality. The platform supports all IoT standards. It is the first handheld soldering station with cyber security that prevents costly downtime. - Protection against cyber attacks
TLS encryption and two-factor authentication (2FA), including Weller's built-in certificate upload mechanism, which provides the soldering station with a customer verification certificate, as well as protected software updates. - Perfect for high-performance soldering
WXUPS uses Thermal Core technology for an optimized heat transfer through the solder joint and offer with 150 W maximum power. It is suitable for high-performance applications with large component sizes from 1612 and more. - ESD-safe
The WXsmart station and all connected tools are fully ESD safe.
