Soldering tip round sloped RTMS 012 B MS
(Product No.: 501.095.99)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice

Soldering tip round sloped RTMS 012 B MS

Soldering tip round sloped RTMS 012 B MS

dpvlink:
26978
Further product information

44.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering tip round sloped RTMS 012 B MS

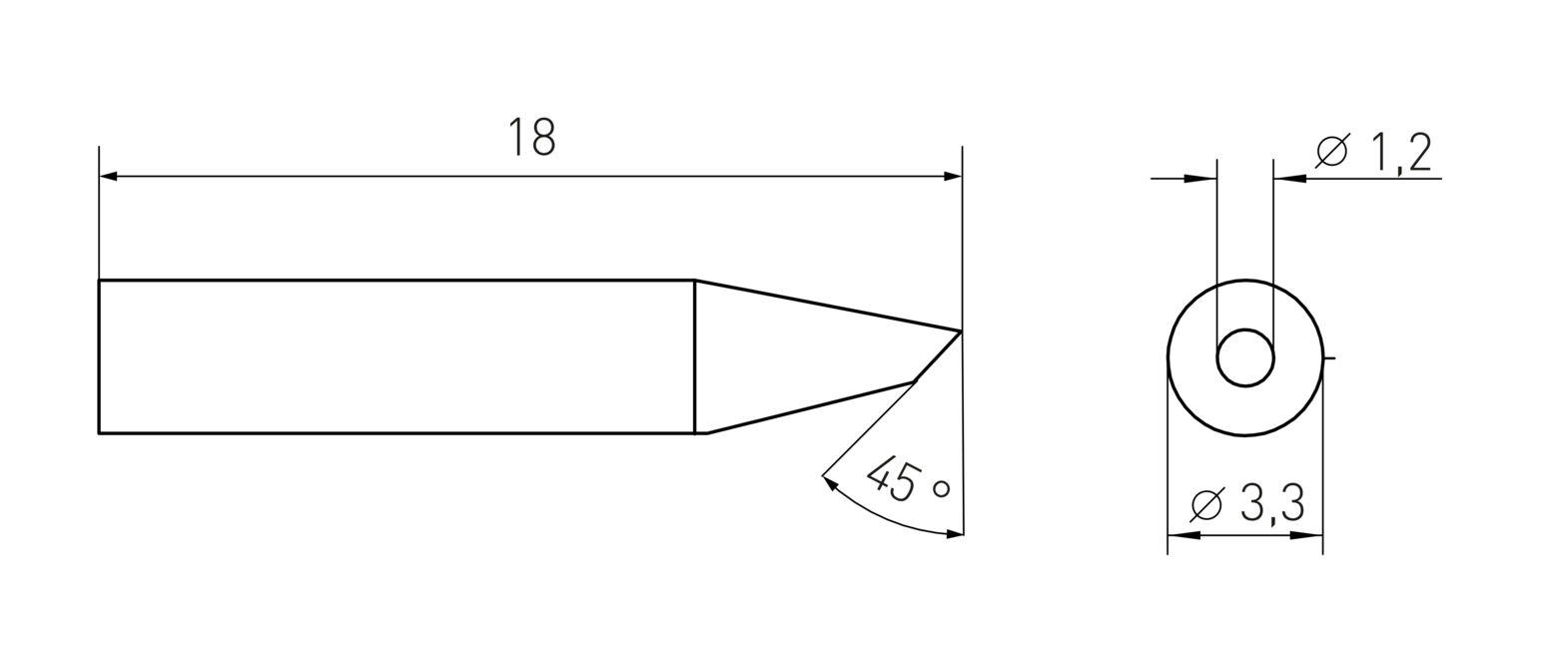

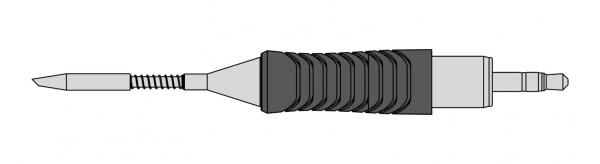

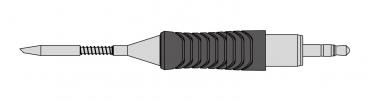

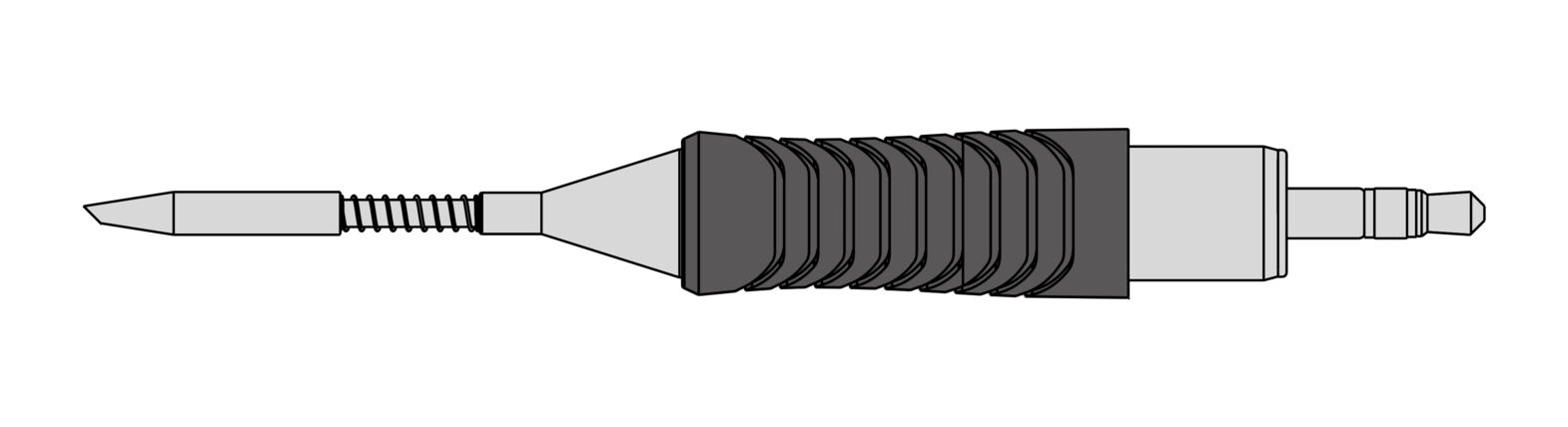

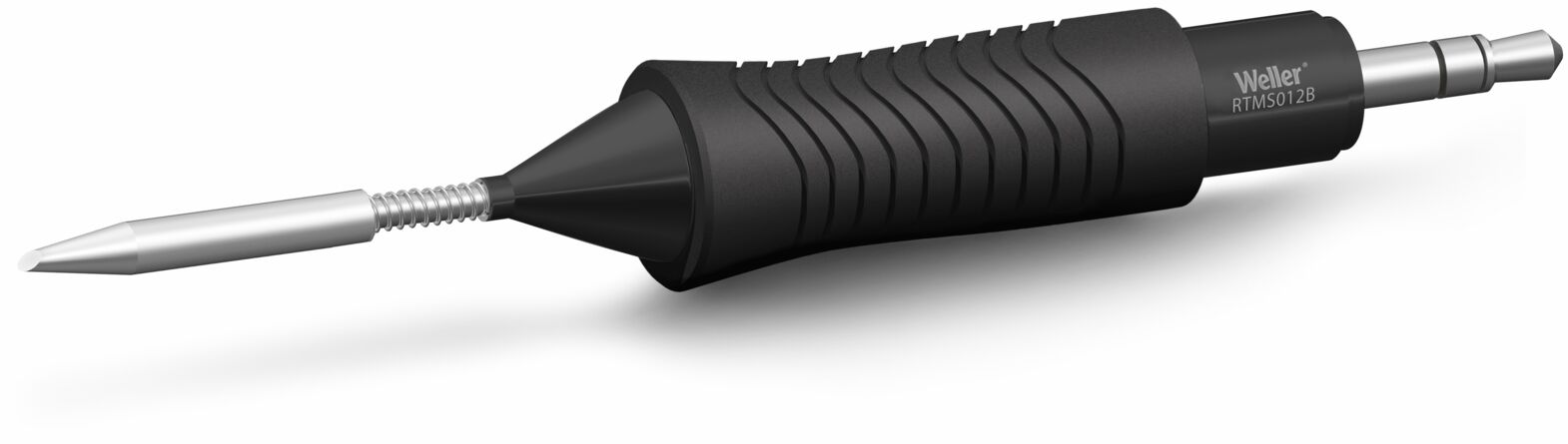

The soldering tip RTMS 012 B MS from Weller is specifically designed for use with the soldering iron models WXMPS MS and WXsmart. This high-quality soldering tip features a round shape with a 45° bevel and a diameter of 1.2 mm. With a length of 18 mm, it allows for precise and efficient work.
The RTMS 012 B MS is part of the RTMS soldering tip series and is MIL-SPEC compliant, meaning it is manufactured according to MIL-STD-2000. It has additional insulation to ground, which effectively prevents interference frequencies, making it ideal for sensitive applications. Note that this special soldering tip is not compatible with conventional handpieces and should only be used with MS-compliant soldering irons.
The technical design and specific features make the RTMS 012 B MS a reliable choice for professionals who require the highest precision and quality in their soldering work.
Length [mm]
Length
18 mm
Ø
Ø
1.2 mm
Soldering tip series
Soldering tip series
RTMS
Soldering tip shape
Soldering tip shape
round , sloped
suitable soldering iron
suitable soldering iron
WXMPS
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Article image
Article description
Length [mm]
Ø
Soldering tip series
Soldering tip shape
suitable soldering iron
Price
Compare
501.095.99 - Soldering tip round sloped RTMS 012 B MS
501.095.99
Soldering tip round sloped RTMS 012 B MS
18 mm
1.2 mm
RTMS
round , sloped
WXMPS
44.20 CHF
501.082.99 - Soldering tip round sloped RTMS 004 B MS
501.082.99
Soldering tip round sloped RTMS 004 B MS
18.5 mm
0.4 mm
RTMS
round , sloped
WXMPS
44.20 CHF
