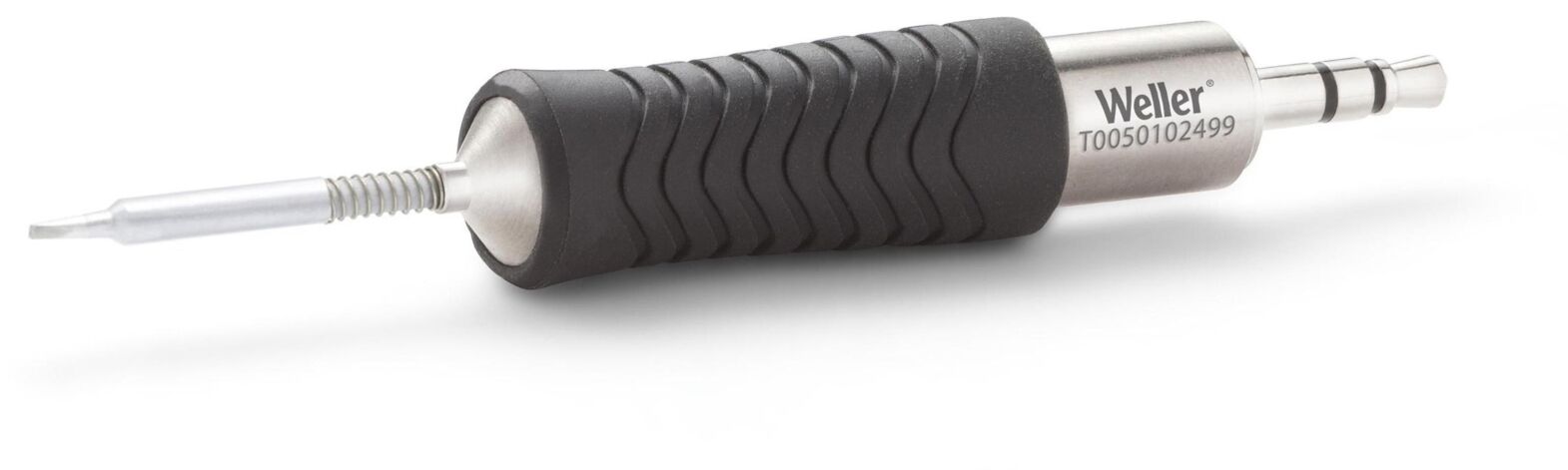

Soldering tip chisel-shaped RTP 008 S MS

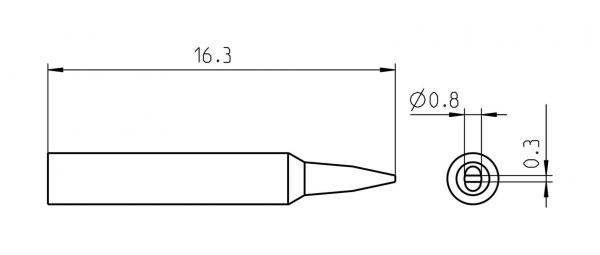

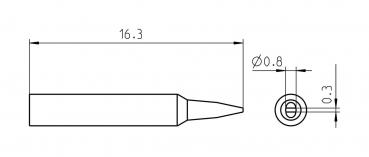

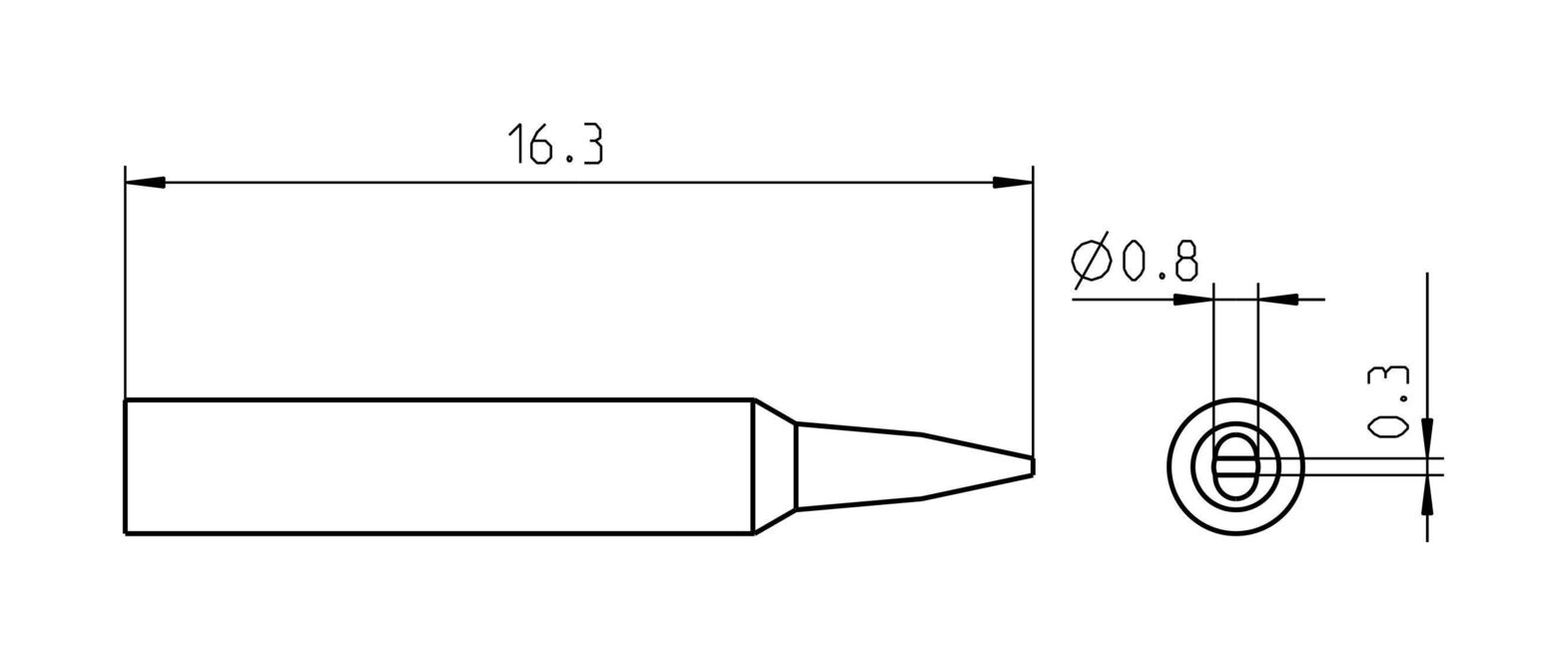

The soldering tip RTP 008 S MS from Weller is a high-quality chisel tip, specifically designed for use with the soldering iron WXPP MS. This tip measures 0.8 mm in width and 0.3 mm in thickness, with a length of 16.3 mm. The MIL-SPEC design ensures conformity with the MIL-STD-2000 standard, which means it provides additional insulation against ground and effectively prevents interference frequencies.
The chisel shape of the tip enables precise work, making it ideal for demanding soldering tasks. It is important to note that this tip is only compatible with MS soldering irons and cannot be used with conventional handpieces. This ensures that the specific requirements of MIL-SPEC conformity are met at all times and the tool's performance is optimally utilized.
The chisel shape of the tip enables precise work, making it ideal for demanding soldering tasks. It is important to note that this tip is only compatible with MS soldering irons and cannot be used with conventional handpieces. This ensures that the specific requirements of MIL-SPEC conformity are met at all times and the tool's performance is optimally utilized.
Details
- Tip width Tip width
- 0.8 mm
- Thickness/diameter Thickness/diameter
- 0.3 mm
- Length [mm] Length [mm]
- 16.3 mm
- Soldering tip series Soldering tip series
- RTP
- Soldering tip shape Soldering tip shape
- chisel-shaped
- suitable soldering iron suitable soldering iron
- WXPP MS
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
