Soldering tip round sloped RTP 004 B MS
(Product No.: 501.019.99)
The image shows a screwdriver with a black, rubberized grip and a narrow, metallic tip. It has a sturdy, ergonomic shape for a good grip.
The image displays a technical drawing of an object with an elongated, tapering front end. Dimensions of 16.3 mm, 0.34 mm, and 0.6 mm are specified. The shape is precise and defined by lines.
The image shows a silver 3.5 mm jack plug with a non-slip, black rubber coating. The plug has three contact strips and is slightly conical in shape.
Mobile Preview: The image shows a screwdriver with a black, rubberized grip and a narrow, metallic tip. It has a sturdy, ergonomic shape for a good grip.
Mobile Preview: The image displays a technical drawing of an object with an elongated, tapering front end. Dimensions of 16.3 mm, 0.34 mm, and 0.6 mm are specified. The shape is precise and defined by lines.
Mobile Preview: The image shows a silver 3.5 mm jack plug with a non-slip, black rubber coating. The plug has three contact strips and is slightly conical in shape.
Notice

Soldering tip round sloped RTP 004 B MS

Soldering tip round sloped RTP 004 B MS

dpvlink:
25598
Ø:
0.4 mm
Properties:
Further product information

40.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

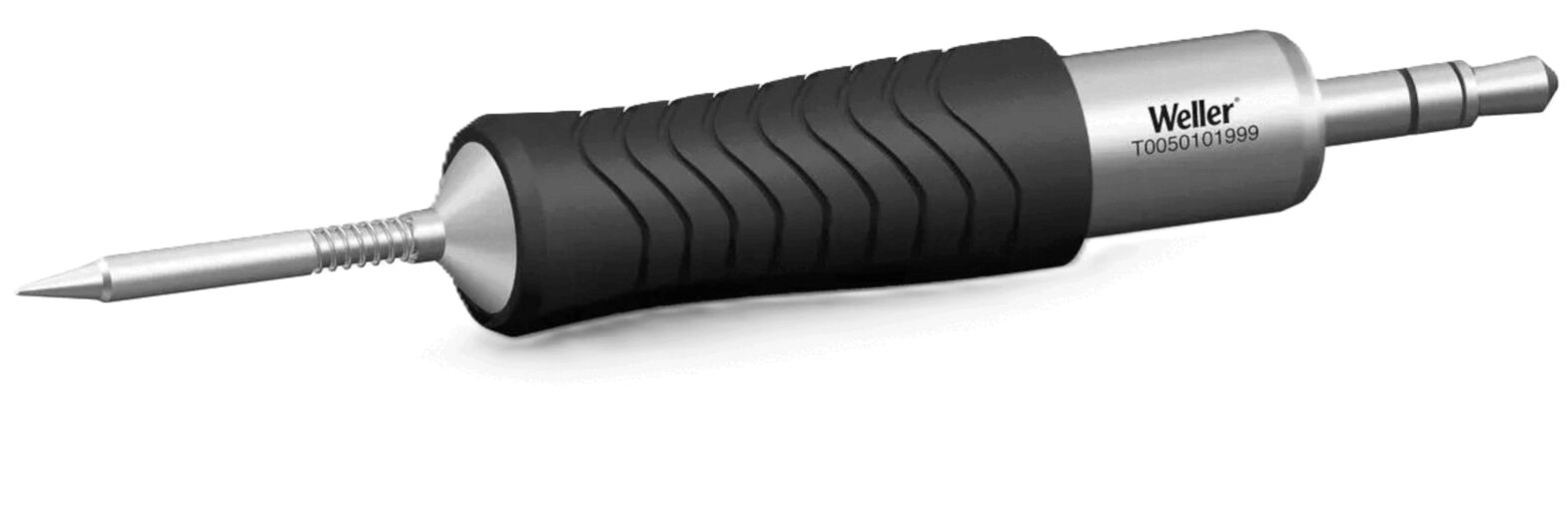

Soldering tip round sloped RTP 004 B MS

The soldering tip RTP 004 B MS from Weller is characterized by its precise beveled round shape with a diameter of 0.4 mm and a length of 16.3 mm. This specially developed MIL-SPEC-compliant tip meets the strict requirements of MIL-STD-2000 and offers high reliability in avoiding interference frequencies thanks to its additional insulation to ground.
Please note that this soldering tip can only be used with MS-compatible soldering irons, such as the WXPP MS from Weller, and is not compatible with conventional soldering tools. This ensures optimal functionality and durability in demanding soldering applications.
Ø
Ø
0.4 mm

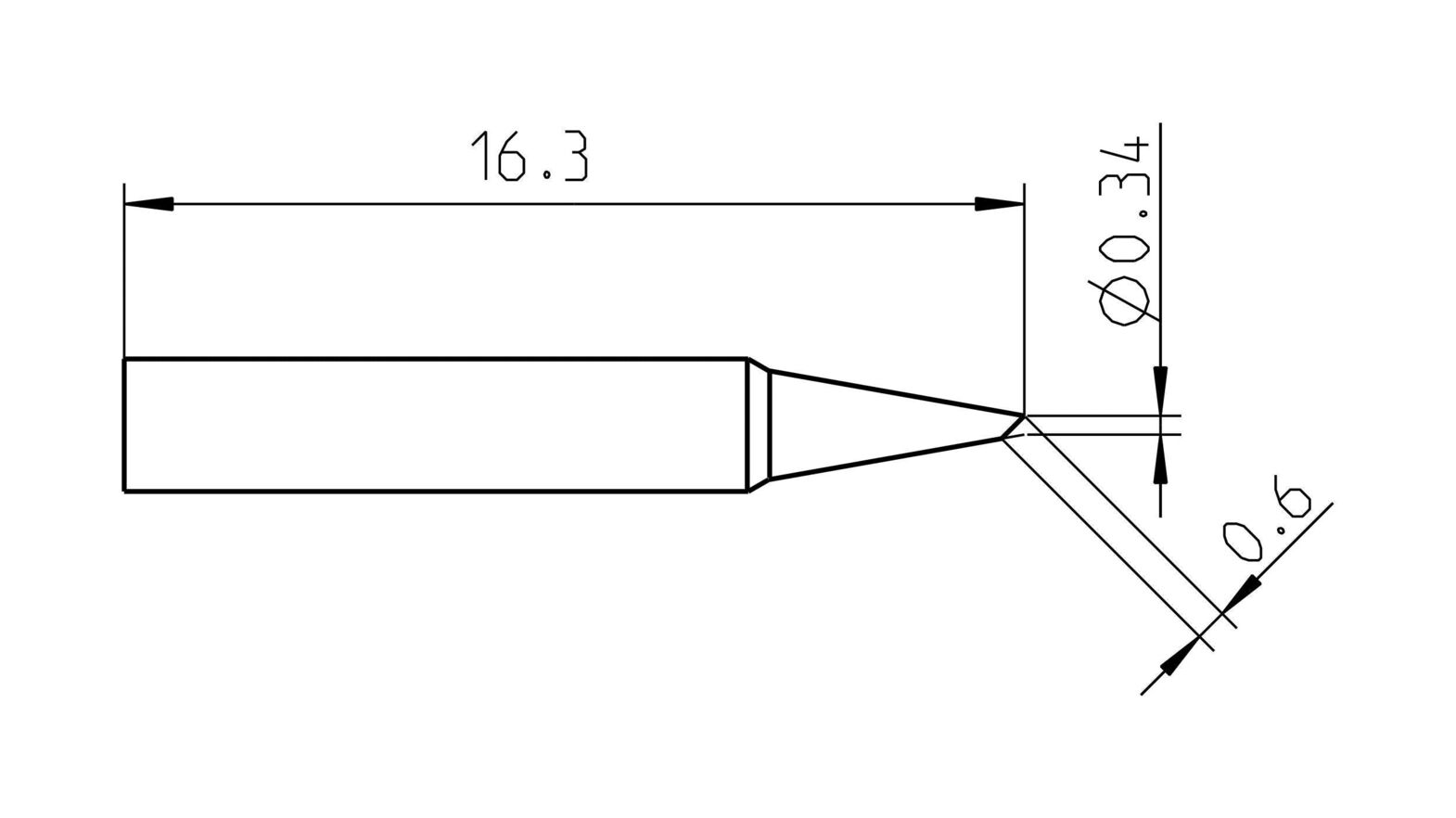

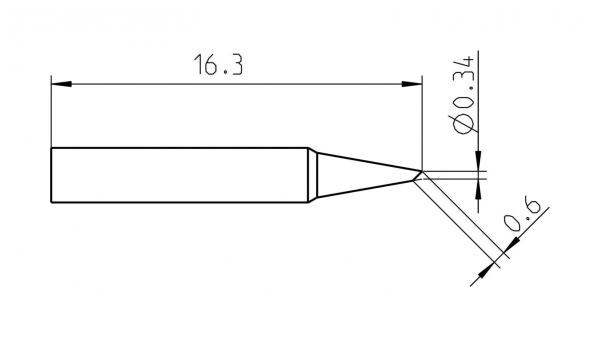

Length
Length
16.3 mm
Soldering tip shape
Soldering tip shape
round , sloped
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 614
Complete Catalog 2023 - 2024

Product Family

RTP - Round tip MS sloped

Article image
Article description
Ø
Price
Compare
501.019.99 - Soldering tip round sloped RTP 004 B MS
501.019.99
Soldering tip round sloped RTP 004 B MS
0.4 mm
40.00 CHF
501.020.99 - Soldering tip round sloped RTP 012 B MS
501.020.99
Soldering tip round sloped RTP 012 B MS
1.2 mm
40.00 CHF
Show Compare List (0)
