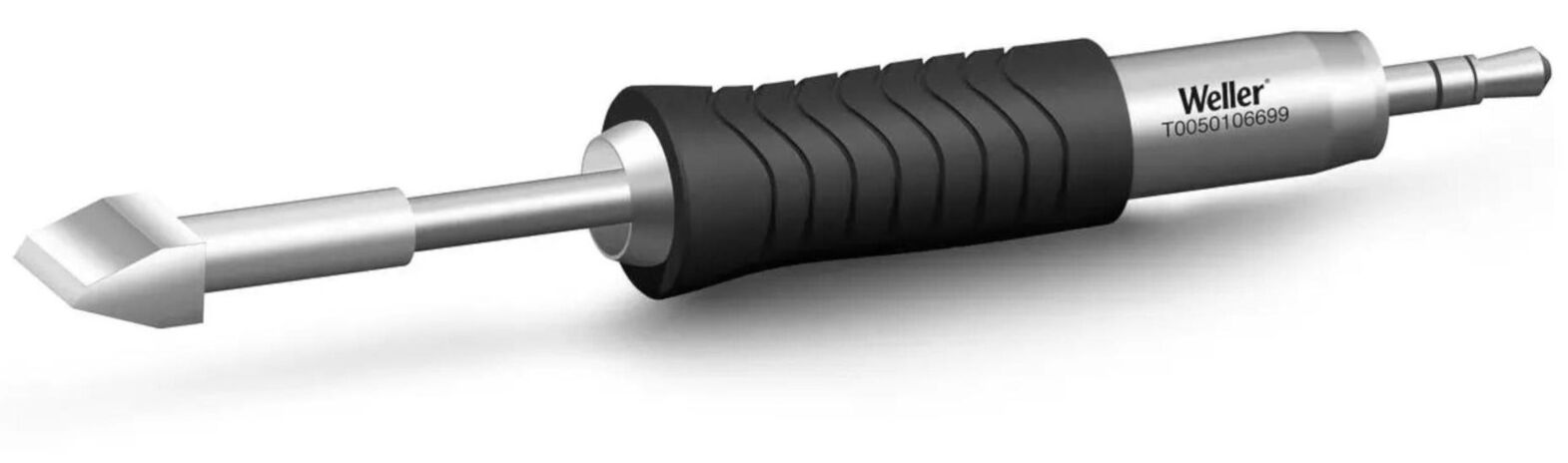

Soldering tip blade tip RTU 100 K MS

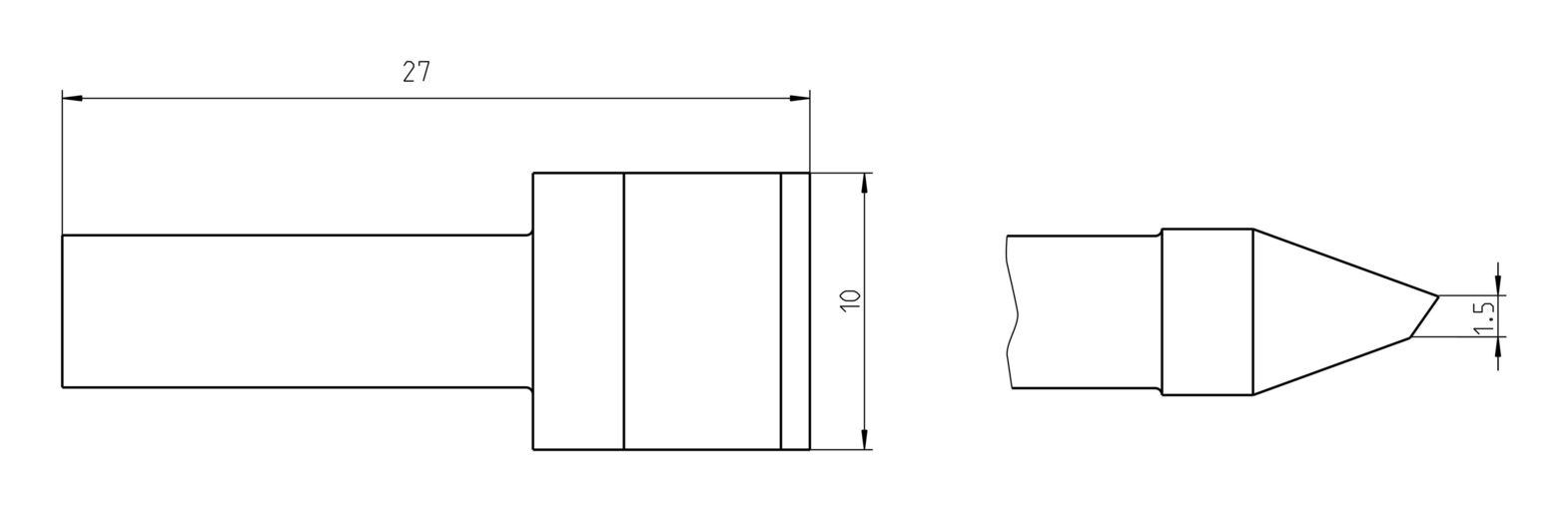

The soldering tip RTU 100 K MS from Weller is specifically designed for use with the soldering iron WXUP MS and meets the strict MIL-SPEC standards according to MIL-STD-2000. This high-quality blade tip features a width of 10.0 mm and a thickness of 1.5 mm, with a total length of 27 mm.
The RTU 100 K MS is a MIL-SPEC version and features additional insulation against ground to effectively avoid interference frequencies. This special insulation makes it incompatible with conventional soldering iron models and exclusively usable with the WXUP MS model from Weller.
Its precisely manufactured blade tip shape allows for exact soldering operations, making it an indispensable tool in technical and military applications.
The RTU 100 K MS is a MIL-SPEC version and features additional insulation against ground to effectively avoid interference frequencies. This special insulation makes it incompatible with conventional soldering iron models and exclusively usable with the WXUP MS model from Weller.
Its precisely manufactured blade tip shape allows for exact soldering operations, making it an indispensable tool in technical and military applications.
Details
- Tip width Tip width
- 10.0 mm
- Thickness/diameter Thickness/diameter
- 1.5 mm
- Length [mm] Length [mm]
- 27 mm
- Soldering tip series Soldering tip series
- RTU
- Soldering tip shape Soldering tip shape
- blade tip
- suitable soldering iron suitable soldering iron
- WXUP MS
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
