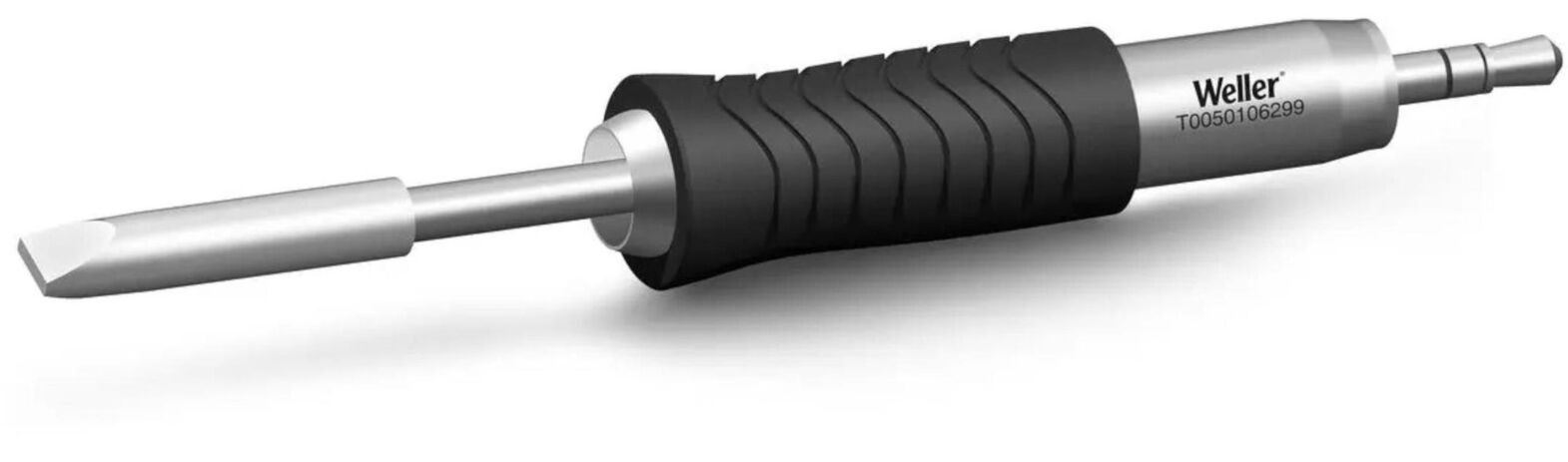

Soldering tip chisel-shaped RTU 050 S MS

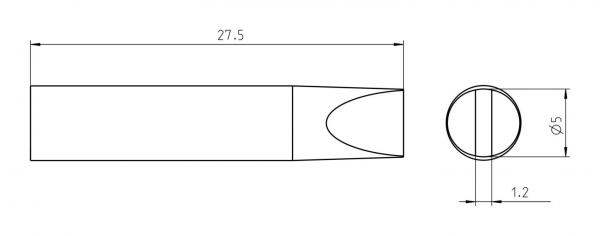

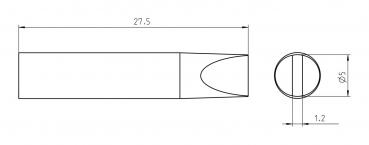

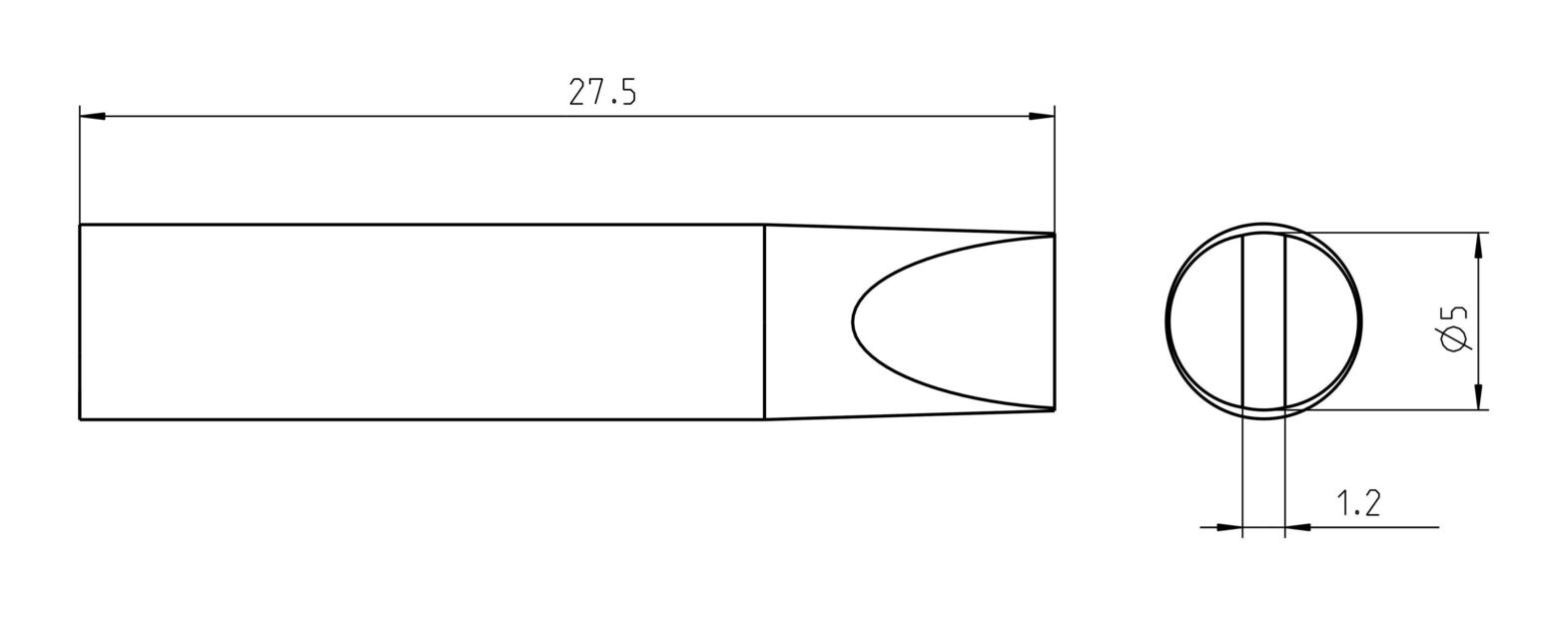

The soldering tip RTU 050 S MS by Weller is specifically designed for use with the soldering iron WXUP MS and meets the strict MIL-SPEC standards according to MIL-STD-2000. This chisel tip is characterized by its width of 5.0 mm and a thickness of 1.2 mm with a length of 27.5 mm. The MIL-SPEC version offers improved insulation against ground to minimize interference frequencies, which distinguishes it from conventional soldering tips. The RTU 050 S MS is exclusively compatible with MS soldering irons and cannot be used with standard handpieces. Its chisel shape allows for precise work in demanding soldering tasks.
Details
- Tip width Tip width
- 5.0 mm
- Thickness/diameter Thickness/diameter
- 1.2 mm
- Length [mm] Length [mm]
- 27.5 mm
- Soldering tip series Soldering tip series
- RTU
- Soldering tip shape Soldering tip shape
- chisel-shaped
- suitable soldering iron suitable soldering iron
- WXUP MS
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
