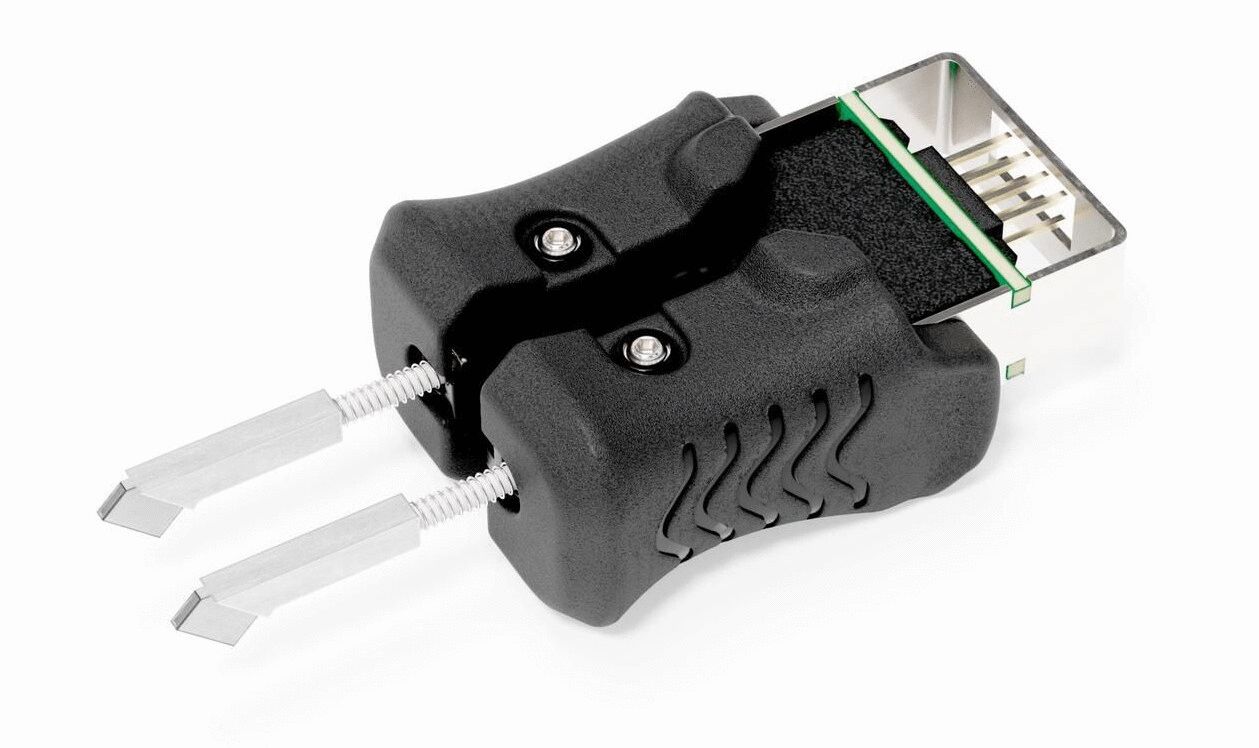

The image shows a black tool that looks like pliers, with two movable metal tips. It has an opening at one end intended for connectors.
Soldering tip pair blade tip RTWMS 060 K
(Product No.: 501.161.99)
The image shows a black tool that looks like pliers, with two movable metal tips. It has an opening at one end intended for connectors.
Notice

Soldering tip pair blade tip RTWMS 060 K

Soldering tip pair blade tip RTWMS 060 K

dpvlink:
27459
Further product information

87.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering tip pair blade tip RTWMS 060 K

The soldering tip pair RTWMS 060 K from Weller is specifically designed for use with the desoldering tweezers WTMT and WXMTS. These high-precision micro-soldering tips offer a tip width of 6.0 mm and a thickness of 1.0 mm, making them ideal for detailed soldering tasks. The tips have a length of 19 mm and are shaped like a knife point, which allows for optimal heat transfer and accessibility in tight areas.
The soldering tips have a power of 40 W each at a voltage of 12 V. The rapid heat-up time of only 5 seconds and the wide temperature range from 100 to 450 °C allow for efficient work under various conditions. These features make the soldering tip pair RTWMS 060 K an excellent choice for professionals who want to achieve precise and efficient soldering results.
Power
Power
40 / 40 W
Voltage
Voltage
12 V
Length
Length
19 mm
Thickness/diameter
Thickness/diameter
1.0 mm
Tip width
Tip width
6.0 mm
Soldering tip series
Soldering tip series
RTWMS
Soldering tip shape
Soldering tip shape
blade tip
suitable soldering iron
suitable soldering iron
WTMT / WXMTS
Heating-up time
Heating-up time
5 s
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

RTWMS Micro soldering tip pair blade tip

Article image
Article description
Power
Voltage
Length
Thickness/diameter
Tip width
Soldering tip series
Soldering tip shape
suitable soldering iron
Heating-up time
Temperature range
Price
Compare
501.163.99 - Soldering tip pair blade tip straight RTWMS 030 K
501.163.99
Soldering tip pair blade tip straight RTWMS 030 K
40 / 40 W
12 V
18.2 mm
1.0 mm
3.0 mm
RTWMS
blade tip , straight
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.165.99 - Soldering tip pair blade tip straight RTWMS 060 K
501.165.99
Soldering tip pair blade tip straight RTWMS 060 K
40 / 40 W
12 V
18.2 mm
1.0 mm
6.0 mm
RTWMS
blade tip , straight
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.160.99 - Soldering tip pair blade tip RTWMS 030 K
501.160.99
Soldering tip pair blade tip RTWMS 030 K
40 / 40 W
12 V
17 mm
1.0 mm
3.0 mm
RTWMS
blade tip
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.161.99 - Soldering tip pair blade tip RTWMS 060 K
501.161.99
Soldering tip pair blade tip RTWMS 060 K
40 / 40 W
12 V
19 mm
1.0 mm
6.0 mm
RTWMS
blade tip
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.164.99 - Soldering tip pair blade tip RTWMS 100 K
501.164.99
Soldering tip pair blade tip RTWMS 100 K
40 / 40 W
12 V
18.2 mm
1.0 mm
10.0 mm
RTWMS
blade tip
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
