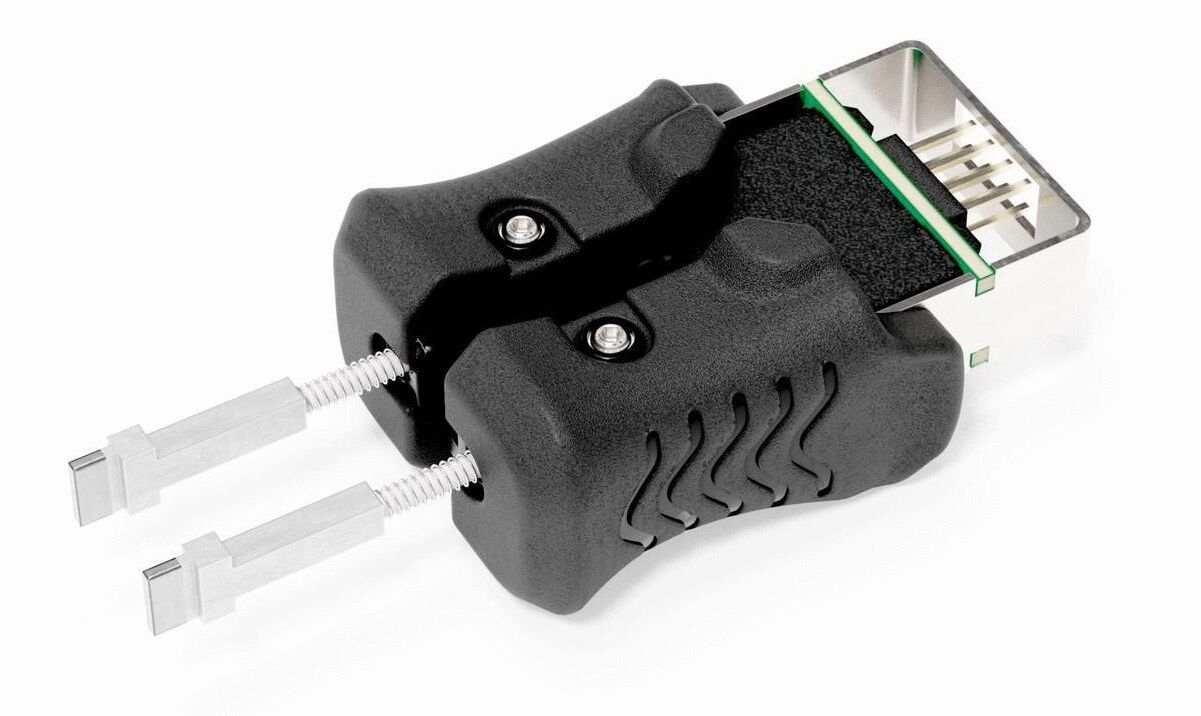

The image shows a black device with two side levers and a connection socket. It has an ergonomic shape and displays technical details for connecting or adjusting cables.
Soldering tip pair blade tip straight RTWMS 060 K
(Product No.: 501.165.99)
The image shows a black device with two side levers and a connection socket. It has an ergonomic shape and displays technical details for connecting or adjusting cables.
Notice

Soldering tip pair blade tip straight RTWMS 060 K

Soldering tip pair blade tip straight RTWMS 060 K

dpvlink:
27459
Further product information

87.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering tip pair blade tip straight RTWMS 060 K

The soldering tip pair RTWMS 060 K from Weller, specifically designed for the desoldering tweezers WTMT and WXMTS, offers an optimal solution for precise soldering tasks. These micro soldering tips with a straight knife-edge shape and a width of 6.0 mm are ideal for fine soldering work. The tips have a thickness or diameter of 1.0 mm and a length of 18.2 mm, enabling precise handling.
The tips are each equipped with a power of 40 W and a voltage of 12 V, which allows for a quick heating time of only 5 seconds. The adjustable temperature range is between 100 and 450 °C, making them versatile for various soldering tasks. The RTWMS series of soldering tips is characterized by high quality and durability, making them a reliable choice for technical professionals.
Power
Power
40 / 40 W
Voltage
Voltage
12 V
Length
Length
18.2 mm
Thickness/diameter
Thickness/diameter
1.0 mm
Tip width
Tip width
6.0 mm
Soldering tip series
Soldering tip series
RTWMS
Soldering tip shape
Soldering tip shape
blade tip , straight
suitable soldering iron
suitable soldering iron
WTMT / WXMTS
Heating-up time
Heating-up time
5 s
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

RTWMS Micro soldering tip pair blade tip

Article image
Article description
Power
Voltage
Length
Thickness/diameter
Tip width
Soldering tip series
Soldering tip shape
suitable soldering iron
Heating-up time
Temperature range
Price
Compare
501.163.99 - Soldering tip pair blade tip straight RTWMS 030 K
501.163.99
Soldering tip pair blade tip straight RTWMS 030 K
40 / 40 W
12 V
18.2 mm
1.0 mm
3.0 mm
RTWMS
blade tip , straight
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.165.99 - Soldering tip pair blade tip straight RTWMS 060 K
501.165.99
Soldering tip pair blade tip straight RTWMS 060 K
40 / 40 W
12 V
18.2 mm
1.0 mm
6.0 mm
RTWMS
blade tip , straight
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.160.99 - Soldering tip pair blade tip RTWMS 030 K
501.160.99
Soldering tip pair blade tip RTWMS 030 K
40 / 40 W
12 V
17 mm
1.0 mm
3.0 mm
RTWMS
blade tip
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.161.99 - Soldering tip pair blade tip RTWMS 060 K
501.161.99
Soldering tip pair blade tip RTWMS 060 K
40 / 40 W
12 V
19 mm
1.0 mm
6.0 mm
RTWMS
blade tip
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
501.164.99 - Soldering tip pair blade tip RTWMS 100 K
501.164.99
Soldering tip pair blade tip RTWMS 100 K
40 / 40 W
12 V
18.2 mm
1.0 mm
10.0 mm
RTWMS
blade tip
WTMT / WXMTS
5 s
100 - 450 °C
87.40 CHF
