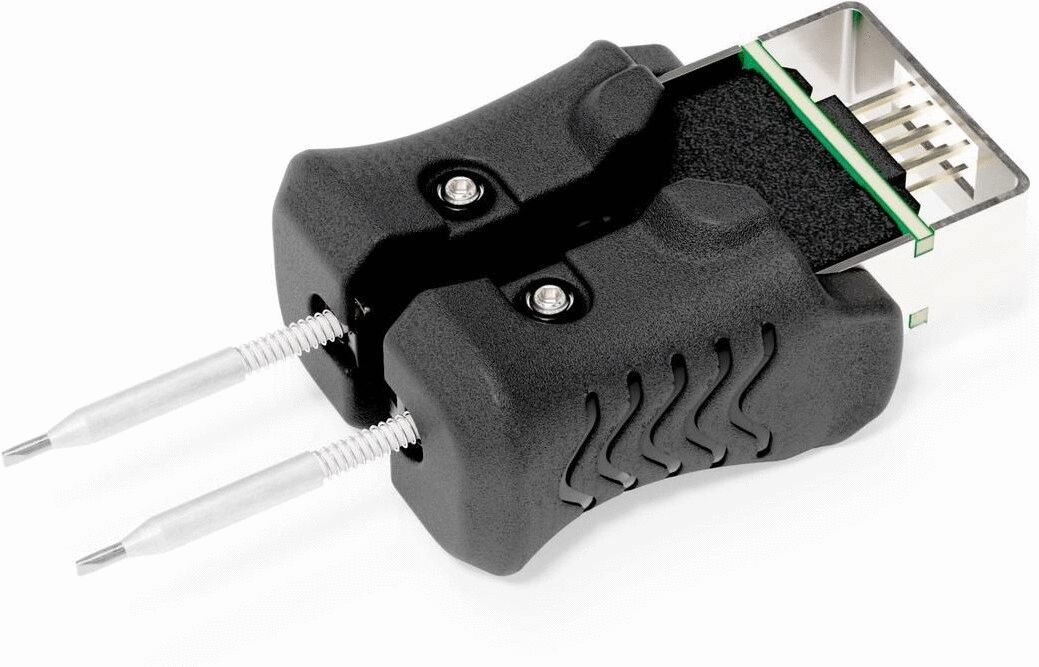

The image shows a device that looks like a black handle with two metal pins. It has a plug at the top end and is intended for testing or programming electronic components.
Soldering tip pair chisel-shaped RTWMS 013 S X
(Product No.: 501.162.99)
The image shows a device that looks like a black handle with two metal pins. It has a plug at the top end and is intended for testing or programming electronic components.
Notice / Inquire

Soldering tip pair chisel-shaped RTWMS 013 S X

Soldering tip pair chisel-shaped RTWMS 013 S X

dpvlink:
27457
Further product information

87.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Soldering tip pair chisel-shaped RTWMS 013 S X

The soldering tip pair RTWMS 013 S X from Weller is specifically designed for use with the desoldering tweezers WTMT and WXMTS. These micro soldering tips in chisel shape are precisely adjusted and offer a tip width of 1.3 mm and a thickness of 0.4 mm. With a length of 19 mm and a power of 40 watts each at a voltage of 12 volts, they enable efficient work.
The soldering tips are characterized by a fast heating time of only 5 seconds and can be operated in a temperature range from 100 to 450 °C. Their robust construction and high-quality workmanship guarantee a long lifespan and reliable performance for all soldering tasks. Ideally suited for precise and demanding soldering processes in electronics manufacturing.
Power
Power
40 / 40 W
Voltage
Voltage
12 V
Length
Length
19 mm
Thickness/diameter
Thickness/diameter
0.4 mm
Tip width
Tip width
1.3 mm
Soldering tip series
Soldering tip series
RTWMS
Soldering tip shape
Soldering tip shape
chisel-shaped
suitable soldering iron
suitable soldering iron
WTMT / WXMTS
Heating-up time
Heating-up time
5 s
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

RTWMS Micro soldering tip pair chisel-shaped bent

Adjusted RTWMS micro soldering tip pairs chisel-shaped, bent for Weller desoldering tweezers WTMT/WXMTS

Article image
Article description
Power
Voltage
Length
Tip width
Soldering tip series
Soldering tip shape
suitable soldering iron
Heating-up time
Temperature range
Thickness/diameter
Price
Compare
501.159.99 - Soldering tip pair chisel-shaped bent RTWMS 007 S X
501.159.99
Soldering tip pair chisel-shaped bent RTWMS 007 S X
40 / 40 W
12 V
20.7 mm
0.7/ 0.4 mm
RTWMS
chisel-shaped
WTMT / WMRT
5 s
100 - 450 °C

87.40 CHF
501.167.99 - Soldering tip pair chisel-shaped RTWMS 008 S NW X
501.167.99
Soldering tip pair chisel-shaped RTWMS 008 S NW X
40 / 40 W
12 V
23 mm
0.8 mm
RTWMS
chisel-shaped
WTMT / WXMTS
5 s
100 - 450 °C
0.4 mm
87.40 CHF
501.162.99 - Soldering tip pair chisel-shaped RTWMS 013 S X
501.162.99
Soldering tip pair chisel-shaped RTWMS 013 S X
40 / 40 W
12 V
19 mm
1.3 mm
RTWMS
chisel-shaped
WTMT / WXMTS
5 s
100 - 450 °C
0.4 mm
87.40 CHF
