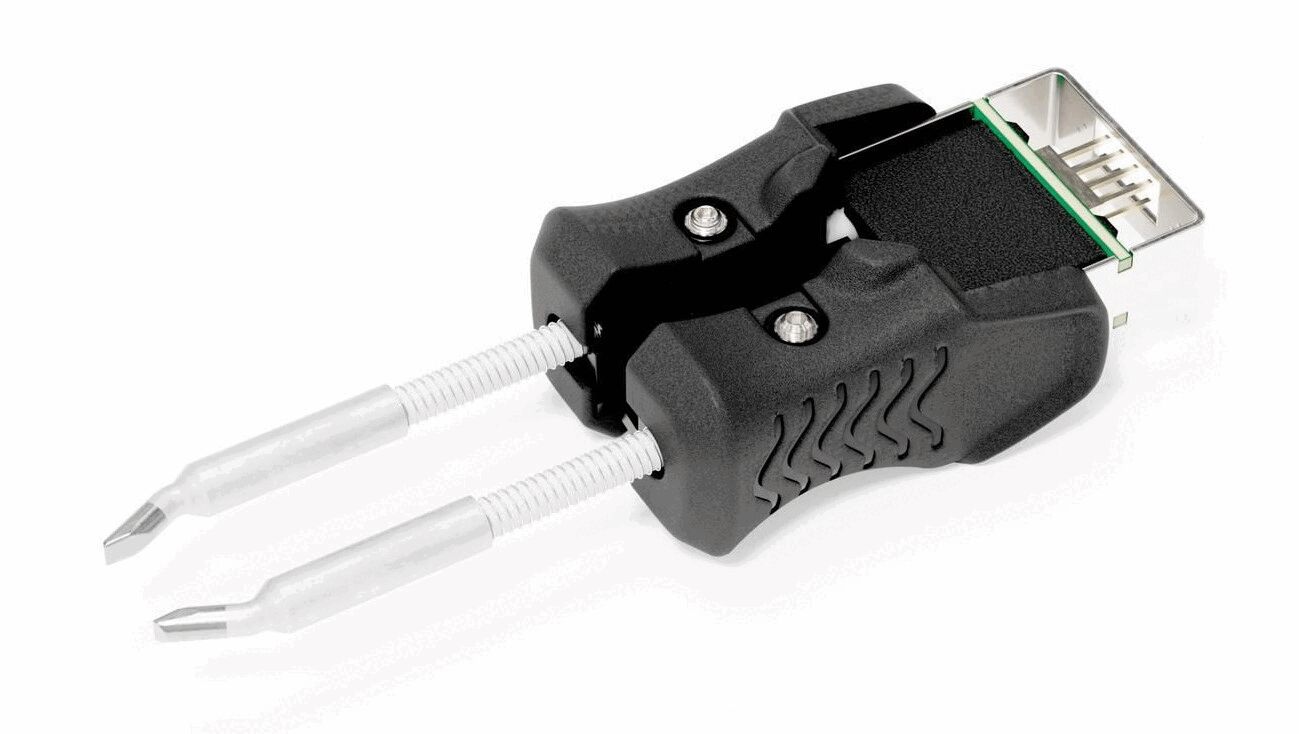

The image shows a sleek, black tool that has a USB port on one end. On both sides, there are two narrow, transparent rods attached.
Soldering tip pair sloped RTWUS 026 B
(Product No.: 501.169.99)
The image shows a sleek, black tool that has a USB port on one end. On both sides, there are two narrow, transparent rods attached.
Notice / Inquire

Soldering tip pair sloped RTWUS 026 B

Soldering tip pair sloped RTWUS 026 B

dpvlink:
27474
Further product information

104.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Soldering tip pair sloped RTWUS 026 B

The soldering tip pair RTWUS 026 B from Weller is specifically designed for use with the Weller desoldering tweezer WXUTS. These beveled ultra-soldering tips are optimal for precise soldering tasks requiring high temperature accuracy. Each tip has a width of 2.6 mm and provides a power of 75W at a voltage of 24V, enabling efficient heat transfer and a quick heat-up time of only 10 seconds.
The tips have a length of 32.4 mm and are part of the RTWUS series. They are ideally suited for a temperature range of 100 to 450 °C, making them versatile. These characteristics make the soldering tip pair an indispensable tool for technical professionals in the field of electronics manufacturing and repair.
Power
Power
75 / 75 W
Voltage
Voltage
24 V
Length
Length
32.4 mm
Ø
Ø
2.6 mm
Soldering tip series
Soldering tip series
RTWUS
Soldering tip shape
Soldering tip shape
sloped
suitable soldering iron
suitable soldering iron
WXUTS
Heating-up time
Heating-up time
10 s
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

RTWUS Ultra soldering tips pair sloped

RTWUS Ultra soldering tip pairs beveled for Weller desoldering tweezers WXUTS

Article image
Article description
Power
Voltage
Length
Ø
Soldering tip series
Soldering tip shape
suitable soldering iron
Heating-up time
Temperature range
Price
Compare
501.168.99 - Soldering tip pair sloped RTWUS 015 B
501.168.99
Soldering tip pair sloped RTWUS 015 B
75 / 75 W
24 V
32.5 mm
1.5 mm
RTWUS
sloped
WXUTS
10 s
100 - 450 °C
104.25 CHF
501.169.99 - Soldering tip pair sloped RTWUS 026 B
501.169.99
Soldering tip pair sloped RTWUS 026 B
75 / 75 W
24 V
32.4 mm
2.6 mm
RTWUS
sloped
WXUTS
10 s
100 - 450 °C
104.25 CHF
