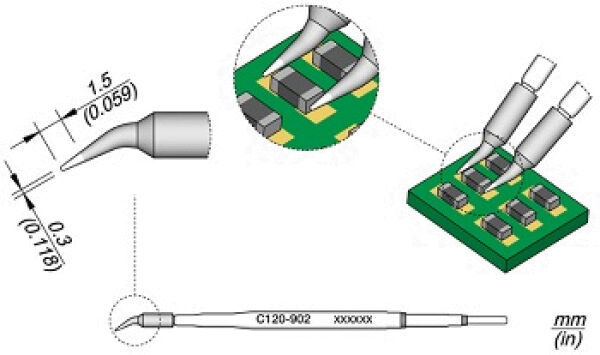

The image shows a technical illustration of a circuit board with several components. Individual parts are enlarged, and a tool is displayed in various views. Dimensions are provided.
Soldering tip
(Product No.: JBC-C120-902)
The image shows a technical illustration of a circuit board with several components. Individual parts are enlarged, and a tool is displayed in various views. Dimensions are provided.
Notice

Soldering tip

Soldering tip

dpvlink:
25933
Length [mm]:
3.0
Thickness/diameter:
0.3
Soldering tip shape:
bent , pointed
Further product information

48.75 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering tip

The JBC C120-902 soldering tip is specifically designed for use with the PA120 micro-tweezers and is characterized by its high-precision manufacturing. This soldering tip offers a length of 3.0 mm and a diameter of 0.3 mm, making it ideal for fine and specialized soldering tasks. The tapered, curved shape allows for excellent precision in heat transfer, resulting in quick heating times and improved durability.
The tip shape is specially developed for the C120 soldering tip series and ensures optimal compatibility with the corresponding soldering iron PA120. This product from JBC represents quality and efficiency in demanding soldering applications.
Length [mm]
Length
3.0
Thickness/diameter
Thickness/diameter
0.3
Soldering tip shape
Soldering tip shape
bent , pointed
Soldering tip series
Soldering tip series
C120
suitable soldering iron
suitable soldering iron
PA120
