Soldering tip C470-043

(Product No.: JBC-C470-043)

Soldering tip C470-043

Name: Soldering tip C470-043
SKU: JBC-C470-043
Price: 57.50 CHF
Availability: InStock

ArticleNo: JBC-C470-043

dpvlink:

29580

Further product information

57.50 CHF

1 PCE

Compare

Notice

Product Info

The JBC C470-043 soldering tip is distinguished by its high performance and rapid heating times, making it ideal for professional technicians and electronic engineers who require precise and reliable solder joints. This specialized soldering tip is specifically designed for use with the JBC T470 soldering iron and is suitable for temperatures up to 500 °C. Thanks to its excellent heat transfer and durability, it is particularly suited for large-scale and demanding soldering tasks.

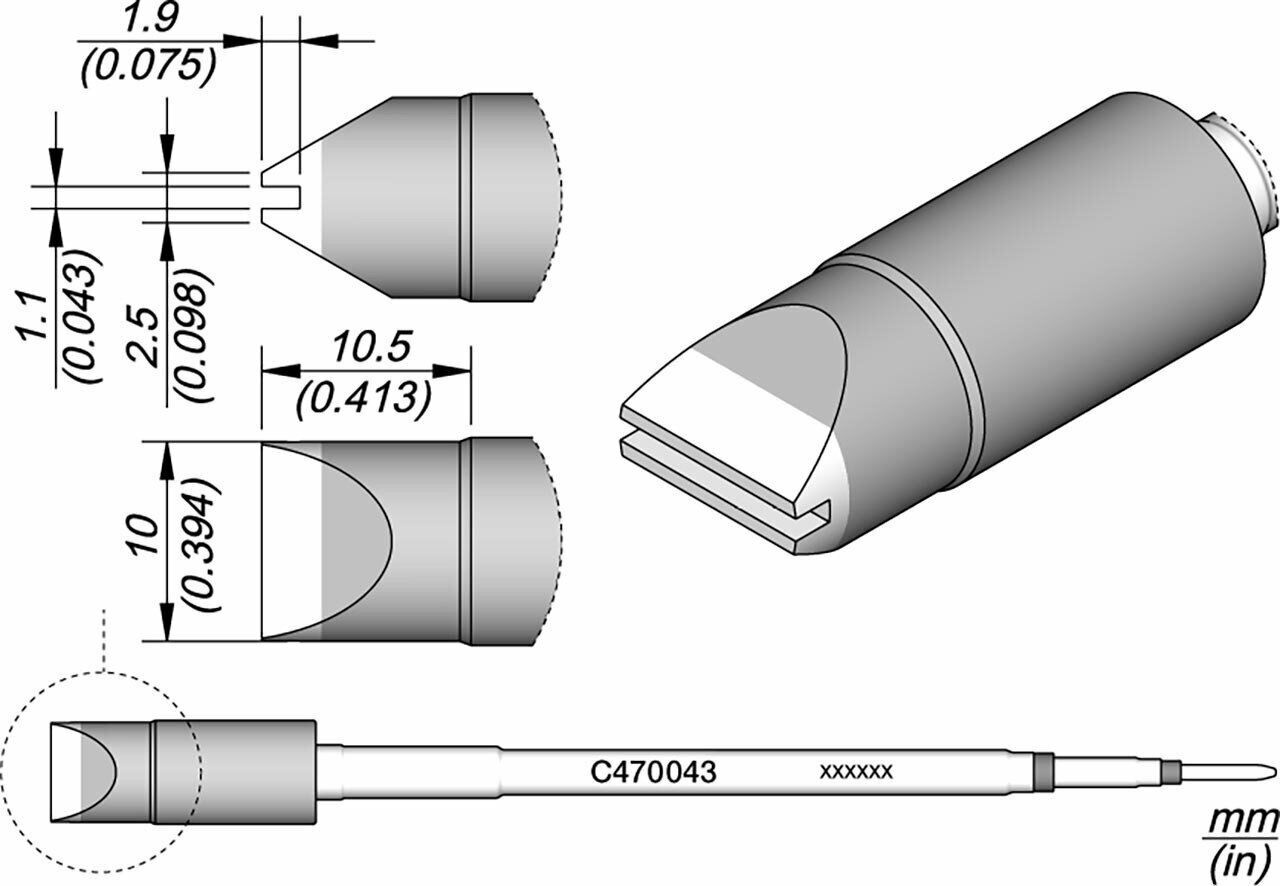

The soldering tip has a width of 10.0 mm and a thickness of 2.5 mm. Its straight special shape and the slot of 1.1 mm allow for soldering cables with a diameter of up to 1 mm. The C470 series soldering tips ensure compatibility with the powerful JBC T470 soldering irons, which are designed for heavy soldering work. This makes the C470-043 an excellent choice for professionals who rely on quality and efficiency in their soldering tasks.

Details

Thickness/diameter Thickness/diameter: 2.5 mm
Tip width Tip width: 10.0 mm
Soldering tip series Soldering tip series: C470
Soldering tip shape Soldering tip shape: special forme , straight
suitable soldering iron suitable soldering iron: T470

Show accessories

Accessories

T210-A soldering iron

JBC-T210-A soldering iron >> JBC Modular Line<<
-Soldering iron 24V - 20 Watt
-without soldering tip
-matching soldering tips: series C210
-1.5 meter connection cable

dpvlink

20517

85.00 CHF

T210-NA nitrogen soldering iron

JBC T210-NA nitrogen soldering iron >Modular Line<
-T210-NA nitrogen soldering iron 24V - 20 Watt
-Nozzle B6647 (Ø 5.3 mm)
-without soldering tip
-1.5 meter connection cable

dpvlink

20517

190.00 CHF

T470-A Soldering iron

JBC T470-A soldering iron with screw
-T470-A soldering iron 24V - 50 watt
-without soldering tip
-suitable for all soldering tips C470/C245
-1.5 meter connection cable

dpvlink

29573

131.30 CHF

T470-FA Soldering iron

JBC T470-FA soldering iron with heat-insulating
handle
-T470-FA soldering iron 24V - 50 watt
-without soldering tip
-suitable for all soldering tips C470/C245
-1.5 meter connection cable

dpvlink

29573

131.25 CHF

T470-MC Soldering iron

JBC T470-MC comfort soldering iron, heat-insulated
-T470-MC soldering iron 24V - 50 watt
-without soldering tip
-suitable for all soldering tips C470/C245
-3 m connection cable

dpvlink

29573

137.50 CHF

T470-NA Nitrogen soldering iron

JBC T470-NA nitrogen soldering iron
-T470-NA nitrogen handpiece 24V - 50 watt
-HD N1, HD N2 and HD N3 nozzley
-suitable for all soldering tips C470/C245
-1.5 meter connection cable

dpvlink

29573

262.50 CHF

T470-SA Soldering iron

JBC T470-SA soldering iron>>JBC Modular Line<<
-T470-SA soldering iron 24V - 50 watt
-without soldering tip
-suitable for all soldering tips C470/C245
-3 m connection cable

dpvlink

29573

137.50 CHF

T470-ZA Soldering iron

JBC T470-ZA soldering iron >>JBC Modular Line<<
-T470-ZA soldering iron 24V - 50 watt
-without soldering tip (3-pole)
- large handle
-suitable for all soldering tips C470/C245
-1.5 m connection cable

dpvlink

29573

137.50 CHF

Soldering tip cleaner CL8499

JBC CL6166 ESD soldering tip cleaner
-S0354 cleaning sponge
-CL6210 brass cleaning brush
-CL0240 ESD soldering tip wiper

dpvlink

29818

100.00 CHF

Soldering tip cleaner CLMU-A

JBC CLMU-A soldering tip cleaner
- 1x CLMU-A soldering tip cleaner
- 1x CLMU-A8 metal brush
- Dimensions: 128 x 131 x 137 mm
- Brush speed: 750 rpm

dpvlink

29818

618.75 CHF

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image

Article description

Thickness/diameter

Soldering tip series

Soldering tip shape

suitable soldering iron

Tip width

Price

Compare

JBC-C470-001
Soldering tip C470-001

1.7 mm

C470

round , bent

T470

52.50 CHF

JBC-C470-002
Soldering tip C470-002

1.5 mm

C470

chisel-shaped , straight

T470

6.0 mm

52.50 CHF

JBC-C470-003
Soldering tip C470-003

7.5

C470

round , sloped

T470

52.50 CHF

JBC-C470-004
Soldering tip C470-004

1.5 mm

C470

chisel-shaped , straight

T470

7.5 mm

52.50 CHF

JBC-C470-005
Soldering tip C470-005

15.0 mm

C470

special forme

T470

57.50 CHF

JBC-C470-006
Soldering tip C470-006

2.5 mm

C470

chisel-shaped , straight

T470

10.0 mm

57.50 CHF

JBC-C470-007
Soldering tip C470-007

2.5 mm

C470

chisel-shaped , straight

T470

15.5

57.50 CHF

JBC-C470-008
Soldering tip C470-008

3.5 mm

C470

round , bent

T470

52.50 CHF

JBC-C470-009
Soldering tip C470-009

1.5 mm

C470

chisel-shaped , straight

T470

5.5 mm

52.50 CHF

JBC-C470-010
Soldering tip C470-010

12.2 mm

C470

special forme , straight

T470

78.75 CHF

JBC-C470-011
Soldering tip C470-011

4.2 mm

C470

round , straight

T470

72.50 CHF

JBC-C470-012
Soldering tip C470-012

2.5 mm

C470

special forme , straight

T470

10.4 mm

78.75 CHF

JBC-C470-013
Soldering tip C470-013

0.9 mm

C470

chisel-shaped , straight

T470

2.0 mm

52.50 CHF

JBC-C470-014
Soldering tip C470-014

1.3 mm

C470

chisel-shaped , straight

T470

4.0 mm

52.50 CHF

JBC-C470-015
Soldering tip C470-015

1.7 mm

C470

chisel-shaped , straight

T470

6.0 mm

52.50 CHF

JBC-C470-016
Soldering tip C470-016

1.7

C470

chisel-shaped , straight

T470

7.5 mm

52.50 CHF

JBC-C470-017
Soldering tip C470-017

1.2 mm

C470

chisel-shaped , straight

T470

5.0 mm

52.50 CHF

JBC-C470-018
Soldering tip C470-018

1.7 mm

C470

chisel-shaped , bent

T470

8.9 mm

57.50 CHF

JBC-C470-019
Soldering tip C470-019

3.5 mm

C470

round , sloped

T470

52.50 CHF

JBC-C470-020
Soldering tip C470-020

3.4 mm

C470

gullwing

T470

78.75 CHF

JBC-C470-021
Soldering tip C470-021

4.0 mm

C470

chisel-shaped , straight

T470

12.0 mm

78.75 CHF

JBC-C470-022
Soldering tip C470-022

4.0 mm

C470

chisel-shaped , bent

T470

28.0 mm

120.00 CHF

JBC-C470-023
Soldering tip C470-023

2.4 mm

C470

blade tip

T470

32.2 mm

120.00 CHF

JBC-C470-025
Soldering tip C470-025

1.7 mm

C470

round , straight

T470

58.75 CHF

JBC-C470-026
Soldering tip C470-026

3.5 mm

C470

round , bent

T470

58.75 CHF

JBC-C470-027
Soldering tip C470-027

C470

special forme , flat

T470

43.0/ 20.0

225.00 CHF

JBC-C470-028
Soldering tip C470-028

1.8

C470

special forme

T470

5.0 mm

78.75 CHF

JBC-C470-029
Soldering tip C470-029

3.0

C470

chisel-shaped

T470

14.0/ 3.0 mm

78.75 CHF

JBC-C470-030
Soldering tip C470-030

1.8

C470

special forme , straight

T470

7.9

78.75 CHF

JBC-C470-031
Soldering tip C470-031

1.8

C470

special forme , straight

T470

6.0

73.75 CHF

JBC-C470-032
Soldering tip C470-032

9 mm

C470

special forme , straight

T470

58.75 CHF

JBC-C470-033
Soldering tip C470-033

1.8 mm

C470

special forme

T470

7.0 mm

78.75 CHF

JBC-C470-034
Soldering tip C470-034

1.5 mm

C470

blade tip , bent

T470

3.5 mm

52.50 CHF

JBC-C470-035
Soldering tip C470-035

2.5 mm

C470

chisel-shaped , straight

T470

4.0 mm

52.50 CHF

JBC-C470-036
Soldering tip C470-036

1.0 mm

C470

chisel-shaped , straight

T470

2.0 mm

52.50 CHF

JBC-C470-037
Soldering tip C470-037

1.9

C470

special forme , straight

T470

12.7

78.75 CHF

JBC-C470-038
Soldering tip C470-038

2.5 mm

C470

special forme , straight

T470

10.4 mm

78.75 CHF

JBC-C470-039
Soldering tip C470-039

2.5 mm

C470

chisel-shaped , straight

T470

8.5 mm

52.50 CHF

JBC-C470-040
Soldering tip C470-040

1.3 mm

C470

chisel-shaped , straight

T470

4.0 mm

52.50 CHF

JBC-C470-041
Soldering tip C470-041

15.0 mm

C470

special forme , straight

T470

78.75 CHF

JBC-C470-042
Soldering tip C470-042

7.5 mm

C470

special forme , straight

T470

65.00 CHF

JBC-C470-043
Soldering tip C470-043

2.5 mm

C470

special forme , straight

T470

10.0 mm

57.50 CHF

JBC-C470-044
Soldering tip C470-044

C470

special forme

T470

10.0/ 15.0 mm

93.75 CHF

JBC-C470-045
Special soldering tip C470-051

3.5 mm

C470

special forme , straight

T470

81.25 CHF

JBC-C470-046
Soldering tip C470-046

1.5 mm

C470

special forme , flat

T470

7.5 mm

60.00 CHF

JBC-C470-047
Soldering tip C470-047

C470

straight

T470

7.5

78.75 CHF

JBC-C470-048
Soldering tip C470-048

5.5

C470

special forme , straight

T470

78.75 CHF

JBC-C470-049
Soldering tip C470-049

6.9

C470

special forme , straight

T470

78.75 CHF

JBC-C470-050
Soldering tip C470-050

3.8 mm

C470

blade tip , straight

T470

8.0 mm

73.75 CHF

JBC-C470-051
Special soldering tip C470-051

C470

special forme

T470

21.0

113.75 CHF

JBC-C470-052
Soldering tip C470-052

8.5 mm

C470

special forme , straight

T470

78.75 CHF

JBC-C470-055
Soldering tip C470-055

4.0 mm

C470

special forme , straight

T470

8.0 mm

78.75 CHF

JBC-C470-056
Soldering tip C470-056

10.0

C470

round , sloped

T470

52.50 CHF

JBC-C470-057
Soldering tip C470-057

C470

special forme

T470

30.0/ 20.0

113.75 CHF

JBC-C470-058
Soldering tip C470-058

2.5 mm

C470

chisel-shaped , straight

T470

8.0 mm

52.50 CHF

JBC-C470-059
Soldering tip C470-059

C470

blade tip

T470

20.0

81.25 CHF

JBC-C470-SP01
Solder bath tip C470-SP01

10.0 mm

C470

special forme

T470

18.0/ 15.0 mm

131.25 CHF
