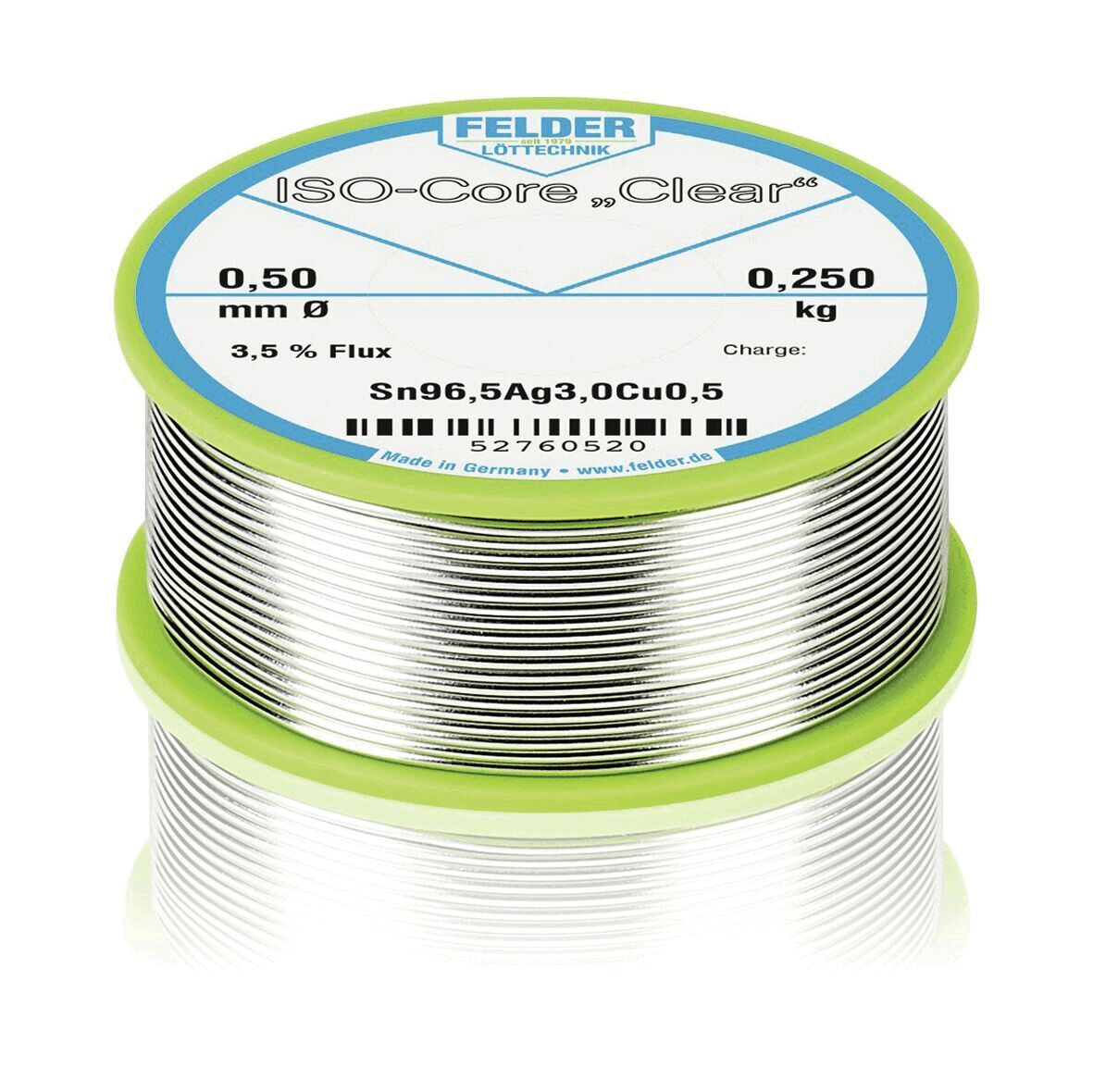

The image shows a spool of soldering wire. The spool has a green edge and a label in blue and white, detailing specifications such as diameter (0.50 mm) and weight (0.250 kg).
Solder wire ISO-Core® Clear Sn96.5Ag3Cu0.5
(Product No.: FE-52760730)
The image shows a spool of soldering wire. The spool has a green edge and a label in blue and white, detailing specifications such as diameter (0.50 mm) and weight (0.250 kg).

Solder wire ISO-Core® Clear Sn96.5Ag3Cu0.5

Solder wire ISO-Core® Clear Sn96.5Ag3Cu0.5

dpvlink:
19894
Form:
Reel
Weight [g]:
500
Note:
- Further diameters/reel sizes available on request -
Further product information


Compare Compare
Notice
Product Info

Solder wire ISO-Core® Clear Sn96.5Ag3Cu0.5

The solder wire ISO-Core® Clear Sn96.5Ag3Cu0.5, manufactured by Felder, is a high-quality choice for technical applications in electronics, electrical engineering, and electromechanics. This product is distinguished by its lead-free alloy Sn96.5Ag3Cu0.5 and offers a melting point of 217-219°C. Particularly noteworthy is the standard flux content of 3.5%, which ensures optimal wetting and thermal stability.
The 500g spool with a diameter of 0.75 mm is ideal for both manual and machine soldering. The used No-clean flux is weakly halogenated and meets the standards DIN EN 29454.1, 1.2.2.B, and DIN EN 91190-1-3, REL1. The solder wire is splash-free and leaves behind crystal-clear residues, which simplifies post-processing and improves the quality of the solder joints.
Form
Form
Reel
Weight [g]
Weight
500
Melting point
Melting point
217 - 219
- Further diameters/reel sizes available on request -
