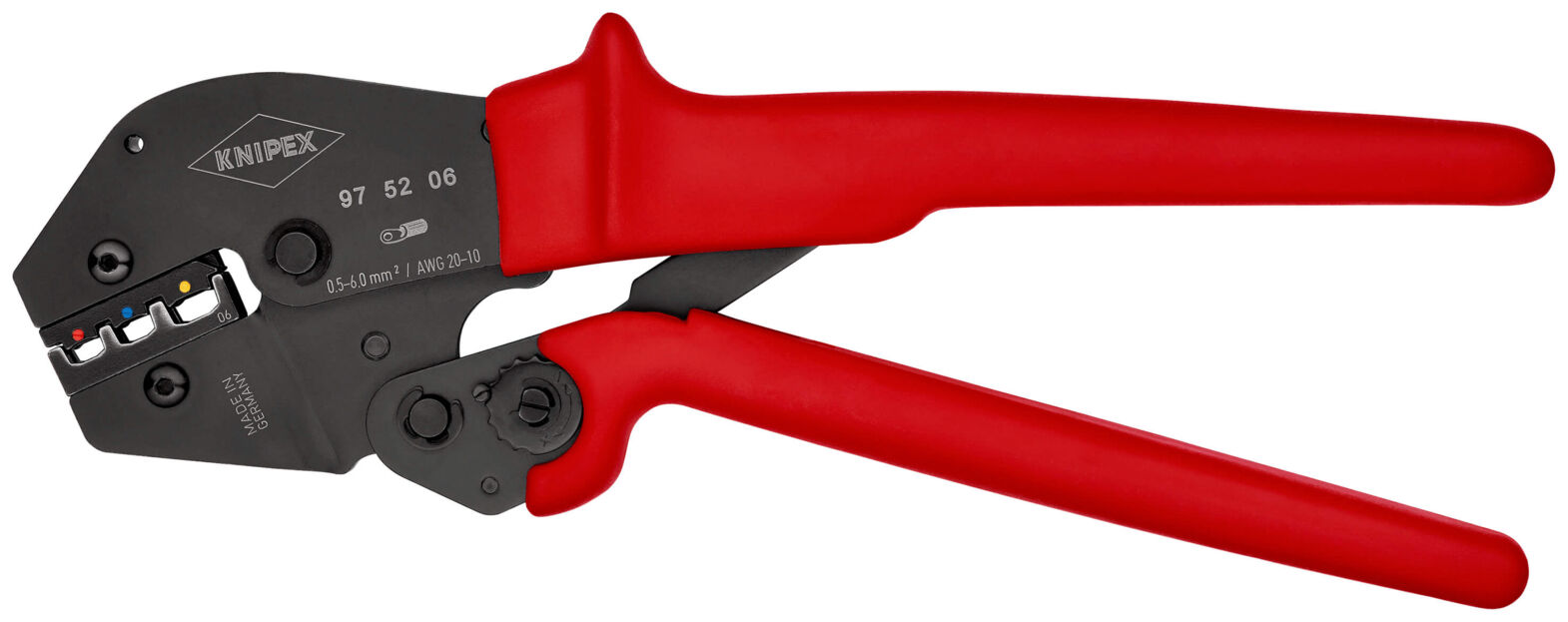

Preview: The image shows a cable cutter with red handles and a black metal head. The head has various notches for cutting and stripping cables.

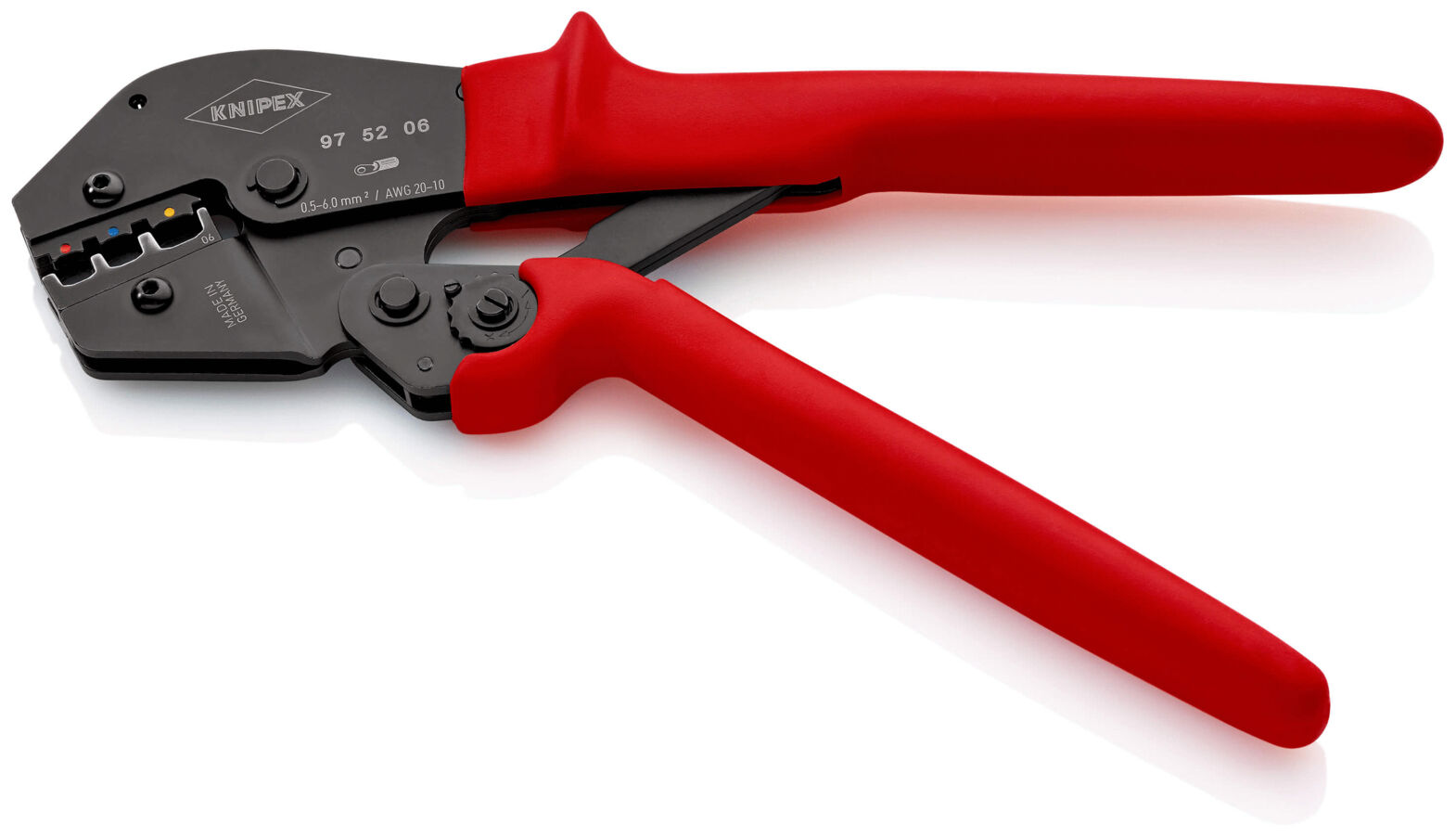

Preview: The image shows a black crimping tool with red handles. The tool has two long, ergonomic handles and a blade with various notches, ideal for electrical connections.

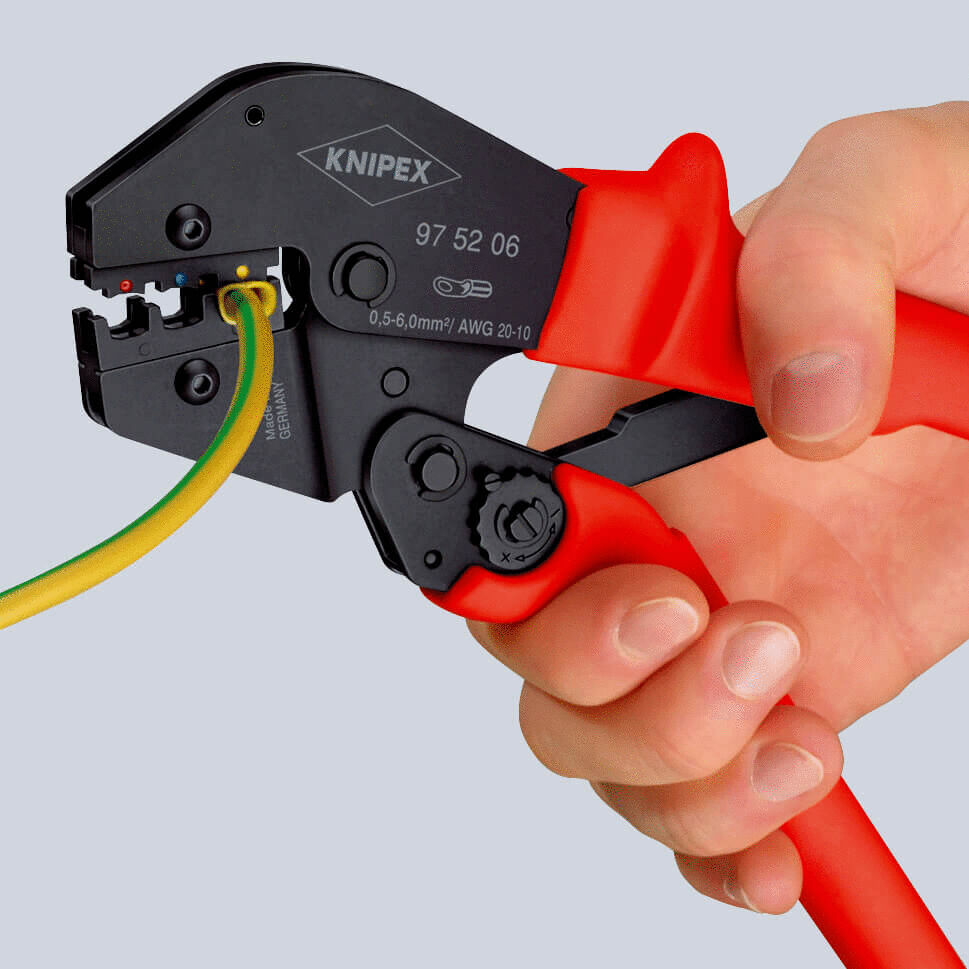

Preview: The image shows a hand holding a pair of wire cutters. The pliers have red handles and a black cutting surface, into which a green and yellow cable is inserted.

Crimping lever pliers for cable terminals AWG 20 - 10

(Product No.: K-975206.250)

Mobile Preview: The image shows a cable cutter with red handles and a black metal head. The head has various notches for cutting and stripping cables.

Mobile Preview: The image shows a black crimping tool with red handles. The tool has two long, ergonomic handles and a blade with various notches, ideal for electrical connections.

Mobile Preview: The image shows a hand holding a pair of wire cutters. The pliers have red handles and a black cutting surface, into which a green and yellow cable is inserted.

(Product No.: K-975206.250)

Crimping lever pliers for cable terminals AWG 20 - 10

Name: Crimping lever pliers for cable terminals AWG 20 - 10
SKU: K-975206.250
Price: 138.65 CHF
Availability: InStock

ArticleNo: K-975206.250

Crimping lever pliers for cable terminals AWG 20 - 10

dpvlink:

8977

Length [mm]:

250 mm

Capacity:

0.5 - 6.0 mm²

AWG:

20 - 10

Further product information

138.65 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

Crimping lever pliers for cable terminals AWG 20 - 10

The KNIPEX crimping lever pliers are specifically designed for crimping cable lugs in the range of AWG 20 to 10 and offer an efficient solution for solderless electrical connections. These pliers feature an innovative lever translation that reduces the required hand force by up to 30% compared to standard models. Thanks to the precise calibration of the crimp pressure and the high-quality precision inserts, consistently high crimp quality is ensured. The pliers' forced lock is releasable, providing additional safety and accuracy during crimping.
The pliers are 250 mm long, 70 mm wide, and 25 mm high, with a weight of 565 g. They are made of burnished material, which underscores their durability and robustness. The ergonomically shaped handle and the angled head ensure balanced handling and facilitate use even with large conductor cross-sections that require two-handed operation. Note that the crimp insert is not interchangeable. This tool is ideal for professionals who value efficiency and precision.
