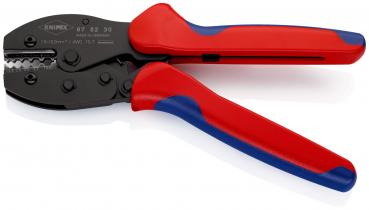

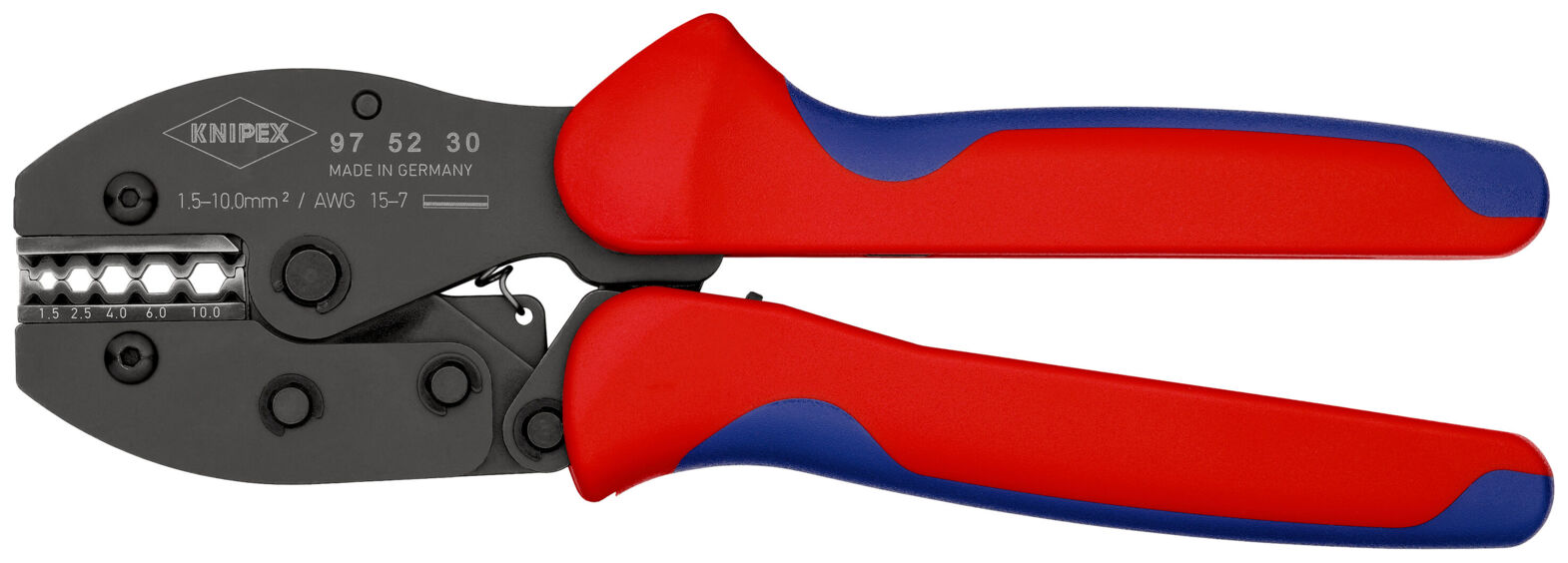

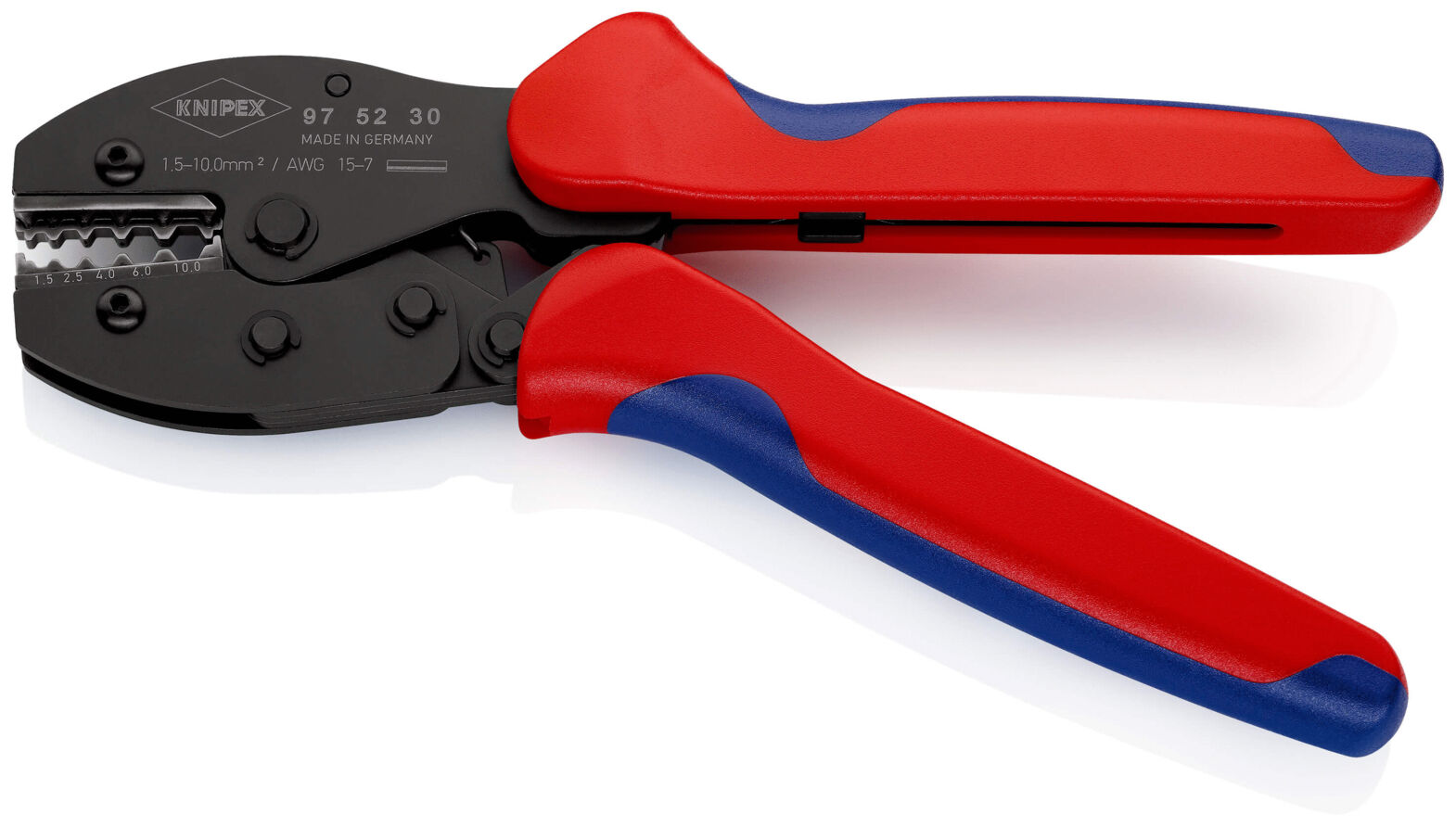

Crimping pliers "PreciForce" for but connectors 1.5 - 10.0 mm² / AWG 15 - 7
The KNIPEX "PreciForce" crimping tool is specifically designed for crimping non-insulated butt connectors with an open cable entry and covers a capacity range from 1.5 to 10.0 mm² or AWG 16 to 12. This precise tool is made of burnished chrome-vanadium electric steel and is oil-hardened, ensuring long durability.With a length of 220 mm and a weight of 477 g, the pliers offer a compact and ergonomic design. The integrated leverage transmission allows for high force amplification, making the work less tiring even with frequent use. The pliers are equipped with five crimping dies and feature a mandatory lock that only releases when the optimal crimping pressure is achieved. This pressure is precisely calibrated at the factory and can be adjusted if necessary.
The multi-component sleeves ensure comfortable handling and the precision-made crimping profiles guarantee consistently high crimping quality. The manually releasable mandatory lock further assists the user by taking over the dosing of hand force, thus ensuring a permanently mechanical and electrically reliable connection.
Details
- Length Length
- 220 mm
- Capacity Capacity
- 1.5 - 10.0 mm²
- AWG AWG
- 16 - 12
- Height Height
- 31 mm
- Width Width
- 70 mm
- Material Material
- chrome-vanadium electirc steel
- Surface Surface
- brilliant
- ESD ESD
- no
- Weight Weight
- 477 g
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Crimping pliers "PreciForce"
Precise crimping - hence the name Knipex PreciForce
Crimping is precision work. The crimp profile and crimping pressure must be precisely matched to the connectors and cables used in order to create a permanently mechanically and electrically reliable connection.
All pliers from the Knipex PreciForce family relieve the user with their lightweight and compact design with toggle lever force reinforcement and precision crimp profile, even with frequently repeated crimping. The result: the optimum pressure is applied to the cable lugs or connectors to be crimped to the cable with precision and in a way that is gentle on the hand.
.
Relief when crimping thanks to positive lock for optimum crimping pressure
With the Knipex PreciForce, the user can work freely, as the pliers take the strain off the hand. The pliers are optimally preset (calibrated) for crimping cable lugs and connectors. Until the set maximum value is reached by the manual pressure, the positive lock prevents the pliers from opening prematurely. As soon as the set pressure is reached, the pliers open automatically. The user can therefore concentrate fully on crimping. The positive lock can be unlocked manually as an option. The crimping pressure of the pliers can be readjusted if necessary.
