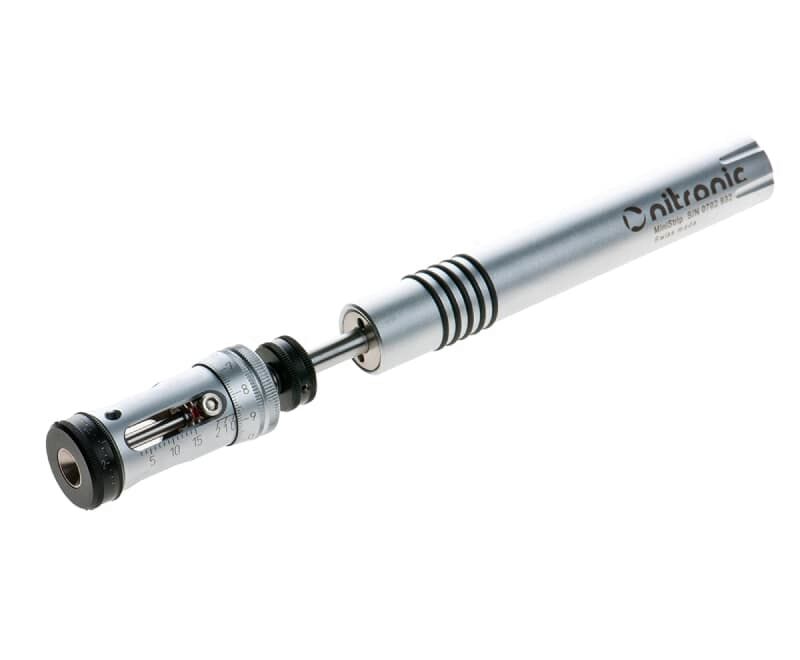

The image shows a silver, metallic device that looks like a pen. At one end, there is a round, black opening. The device has screws and grooves on the surface.

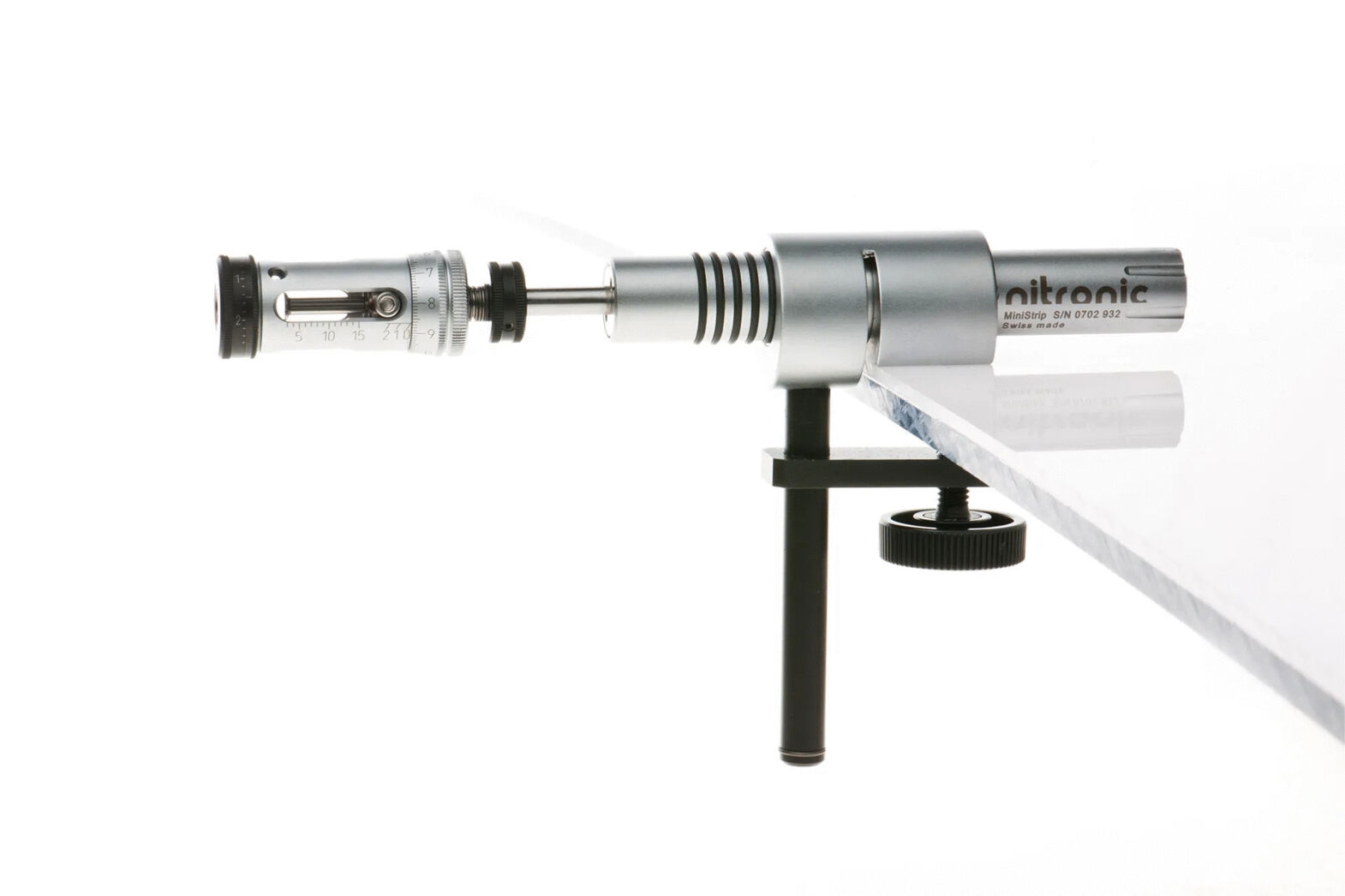

The image shows a technical device made up of several metallic parts. It has a cylindrical shape with a mount on a table, and it appears precise and sturdy.

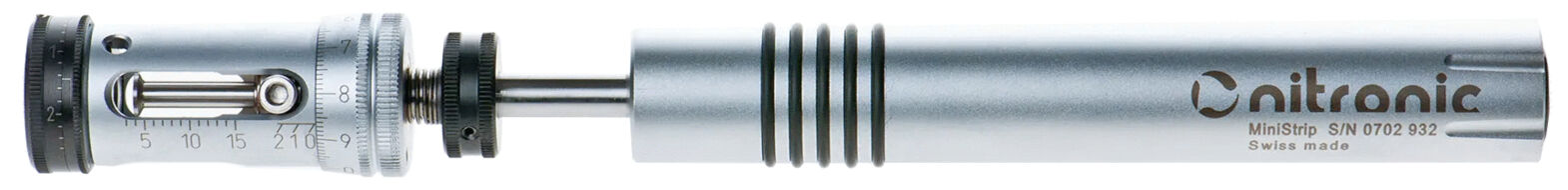

The image displays a silver, elongated object with a transparent, round end. It features a ridged area and an opening at one end. It might be a device or tool.
Preview: The image shows a silver, metallic device that looks like a pen. At one end, there is a round, black opening. The device has screws and grooves on the surface.
Preview: The image shows a technical device made up of several metallic parts. It has a cylindrical shape with a mount on a table, and it appears precise and sturdy.
Preview: The image displays a silver, elongated object with a transparent, round end. It features a ridged area and an opening at one end. It might be a device or tool.
MiniStrip Titan
(Product No.: NI-010070)
The image shows a silver, metallic device that looks like a pen. At one end, there is a round, black opening. The device has screws and grooves on the surface.
The image shows a technical device made up of several metallic parts. It has a cylindrical shape with a mount on a table, and it appears precise and sturdy.
The image displays a silver, elongated object with a transparent, round end. It features a ridged area and an opening at one end. It might be a device or tool.
Mobile Preview: The image shows a silver, metallic device that looks like a pen. At one end, there is a round, black opening. The device has screws and grooves on the surface.
Mobile Preview: The image shows a technical device made up of several metallic parts. It has a cylindrical shape with a mount on a table, and it appears precise and sturdy.
Mobile Preview: The image displays a silver, elongated object with a transparent, round end. It features a ridged area and an opening at one end. It might be a device or tool.
Notice / Inquire

MiniStrip Titan

MiniStrip Titan

dpvlink:
15170
Further product information

990.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

MiniStrip Titan

The Nitronic MiniStrip Titanium is an advanced solution for precise cable stripping, specifically designed for applications where the highest accuracy is required. Equipped with four titanium-coated carbide blades and innovative rotating stripping head technology, this tool allows for precise and uniform stripping of cable ends up to a diameter of 2.5 mm and a stripping length of up to 15 mm, with an extension of the length optionally available.
Thanks to the continuously adjustable settings for both diameter and length, which can be quickly and easily adjusted via a calibrated scale, the MiniStrip offers high flexibility and ease of use. The centering device ensures that the cable is always optimally positioned, thereby minimizing sources of error and maximizing the quality of the stripping. The simultaneous twisting of the strands, depending on the conductor properties, and the lack of a need for power supply further enhance the mobility and application range of the device.
Suitable for a variety of insulation types such as Teflon, PVC, Kynar, and Kapton, the MiniStrip also meets demanding industrial standards, making it ideal for use in medical technology, aerospace. By combining ease of use and high precision, this tool is a reliable choice for professionals who value efficiency and precision.
AWG
AWG
34 - 15
Diameter
Diameter
0.16 - 1.5 mm
Max Cu
Max Cu
2.5 mm
Show accessories
Accessories

Spares

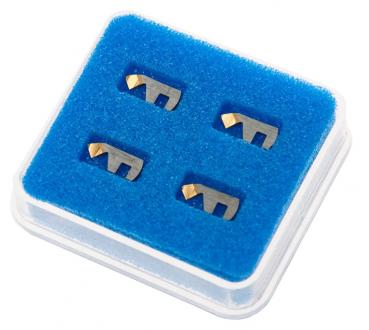

The image shows a transparent box with a blue foam insert. Inside, there are four metallic parts that are L-shaped and gold-colored on one side.
Replacement blades Titan
Blade set hard metal, titanium-coated
(Set = 4 pcs)
dpvlink
15170

232.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 493
Complete Catalog 2023 - 2024

Product Family

High-precision stripping tool MiniStrip

The Nitronic MiniStrip was specially developed for users with high quality requirements. The unique four-blade system and the rotating stripping head ensure absolutely precise and consistently accurate stripping of small-diameter cable ends.

The MiniStrip is the flagship among manual stripping tools and the optimum solution for precise and safe stripping of a wide range of cable types. Thanks to our innovative process, insulation, dielectric or shielding are removed effortlessly and, depending on the nature of the conductor, the strands are twisted at the same time. This versatility enables a wide range of cables to be processed, including small coaxial cables and conductors with Kapton, silicone or Teflon insulation. For cables with a diameter of 2.5mm.

The MiniStrip not only ensures high precision to prevent damage to conductors, dielectric or shielding, but also has an integrated centering device for high-end stripping that meets the demanding standards of medical technology or aerospace.


The infinitely variable adjustability and the ability to center the cable relative to the blades ensure optimum results without exerting pressure on the cable.The MiniStrip is set to a different diameter in just a few seconds using a calibrated scale. With the MiniStrip you are ideally equipped for demanding stripping tasks - precise, efficient and reliable.

The Ministrip Standard with HSS blades is for less demanding stripping or harsh environments. The Ministrip Titan uses titanium-coated carbide blades and has a centering device. We particularly recommend the Ministrip Titan for aerospace applications.

Rotary cutting and stripping

The innovative process enables the effortless removal of insulation or dielectric / shielding from coaxial cables.

Optional centering device (Art. No. NI-010070)
The centering device enables high-quality stripping that meets even the highest standards. It is infinitely adjustable and ensures that the cable is centered relative to the blades, eliminating any incorrect user influence on the quality of the stripping.

Stepless length adjustment

The length adjustment is also infinitely variable and can be set to the desired length in just a few seconds.

Simultaneous twisting of strands

Depending on the nature of the conductor, strands are easily twisted at the same time.

High accuracy
The high-precision production of the MiniStrip ensures maximum repeatability of your stripping process.

Calibrated scale for diameter adjustment

The MiniStrip can be set to different diameters in just a few seconds using a calibrated scale with a resolution of one hundredth.

Ease of use

Despite the wide range of setting options, the MiniStrip is simple and intuitive to operate.

Lockable diameter adjustment and centering device

A locking screw allows the diameter adjustment or the centering device to be locked for space applications.

Properties

  • Stripping length up to 15 mm
  • Stripping head with four-blade system
  • Rotary cutting
  • No damage of the conductors
  • Stepless adjustment of diameter and length
  • Mobile, can be used anywhere, no power supply required
  • Suitable for PVC, Teflon, Kynar, and Kapton insulation




Article image
Article description
AWG
Diameter
Max Cu
Length
Width
Max Ø soft
Weight
Material
Price
Compare
NI-010070 - MiniStrip Titan
NI-010070
MiniStrip Titan
34 - 15
0.16 - 1.5 mm
2.5 mm





990.00 CHF
NI-010065 - MiniStrip standard
NI-010065
MiniStrip standard
38 - 12


165 mm
12 mm
2.5 mm
90 g

719.00 CHF
NI-010079 - Replacement blades Titan
NI-010079
Replacement blades Titan







titanium
232.00 CHF
NI-010075 - Replacement blades HSS
NI-010075
Replacement blades HSS







HSS
158.00 CHF
NI-010131 - MiniStrip advanced set (without MiniStrip)
NI-010131
MiniStrip advanced set (without MiniStrip)








189.00 CHF
Show Compare List (0)

This product is compatible with (for example):

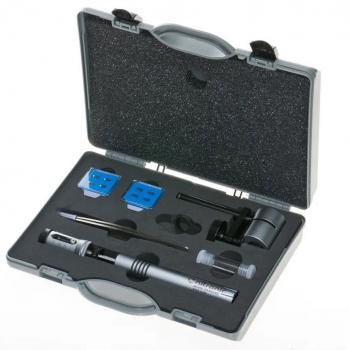

The image displays a toolbox with various instruments. The box is gray and features a foam insert. Included are a screwdriver, two blue parts, and additional small tools.
