Stripping and crimping pliers
(Product No.: K-1272.190)
The image shows a black and red wire stripper. It has two handles and a flat working surface with various settings for cables. A logo is clearly visible.
The image shows a black and red cable cutter. It has a handle that fits comfortably in the hand, and a mechanical system for precise cable processing. Brand logo visible.
The image shows three different cables. At the top is a green, thin cable. Below it is a black, thick cable, and at the bottom lies a blue cable with a clear texture.
The image shows a section of a tool, likely a pair of pliers. A yellow and green wire is visible, passing through a foldable blade to cut or manipulate it.
The image shows a hand holding a cable stripping tool from Knipex. It has a black surface and a red handle. A blue wire is being threaded through the tool.
The image shows a hand holding a wire stripper from Knipex. The pliers have a black surface with red accents and various adjustment markings.
The image shows a wire cutter in a hand. The cutting mechanism is black, with red and grey details. A blue wire is inserted into the pliers, ready to be cut.
The image shows a hand holding a black tool used for stripping wires. A blue wire is inserted into the tool and is currently being processed.
The image shows a dog leash with a handle in black and red. The leash is elastic, red with blue accents, and has a loop for wrist protection.
The image shows a hand holding a labelable stamp. A black marker writes the word "Name" on the red area of the stamp. The stamp is primarily black with red accents.
The image shows a part of a device with a black matte surface. There are red-colored switches and a counter ranging from 0.03 to 10. Mechanical parts are visible.
The image shows a section of a black, solid surface with a silver metal part. The shape resembles a blade or a mechanism, embedded in the black mount.
The image shows a matte black object with a small opening and a reflective interior. Next to it lies a silver cylindrical object. The background is bright and textured.
The image displays a detailed close-up of a mechanical part. It features multiple metallic components and a matte, black surface. The structure appears functional and precise.
Mobile Preview: The image shows a black and red wire stripper. It has two handles and a flat working surface with various settings for cables. A logo is clearly visible.
Mobile Preview: The image shows a black and red cable cutter. It has a handle that fits comfortably in the hand, and a mechanical system for precise cable processing. Brand logo visible.
Mobile Preview: The image shows three different cables. At the top is a green, thin cable. Below it is a black, thick cable, and at the bottom lies a blue cable with a clear texture.
Mobile Preview: The image shows a section of a tool, likely a pair of pliers. A yellow and green wire is visible, passing through a foldable blade to cut or manipulate it.
Mobile Preview: The image shows a hand holding a cable stripping tool from Knipex. It has a black surface and a red handle. A blue wire is being threaded through the tool.
Mobile Preview: The image shows a hand holding a wire stripper from Knipex. The pliers have a black surface with red accents and various adjustment markings.
Mobile Preview: The image shows a wire cutter in a hand. The cutting mechanism is black, with red and grey details. A blue wire is inserted into the pliers, ready to be cut.
Mobile Preview: The image shows a hand holding a black tool used for stripping wires. A blue wire is inserted into the tool and is currently being processed.
Mobile Preview: The image shows a dog leash with a handle in black and red. The leash is elastic, red with blue accents, and has a loop for wrist protection.
Mobile Preview: The image shows a hand holding a labelable stamp. A black marker writes the word "Name" on the red area of the stamp. The stamp is primarily black with red accents.
Mobile Preview: The image shows a part of a device with a black matte surface. There are red-colored switches and a counter ranging from 0.03 to 10. Mechanical parts are visible.
Mobile Preview: The image shows a section of a black, solid surface with a silver metal part. The shape resembles a blade or a mechanism, embedded in the black mount.
Mobile Preview: The image shows a matte black object with a small opening and a reflective interior. Next to it lies a silver cylindrical object. The background is bright and textured.
Mobile Preview: The image displays a detailed close-up of a mechanical part. It features multiple metallic components and a matte, black surface. The structure appears functional and precise.
Notice / Inquire

Stripping and crimping pliers

Stripping and crimping pliers

dpvlink:
26792
Properties:
Further product information

150.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

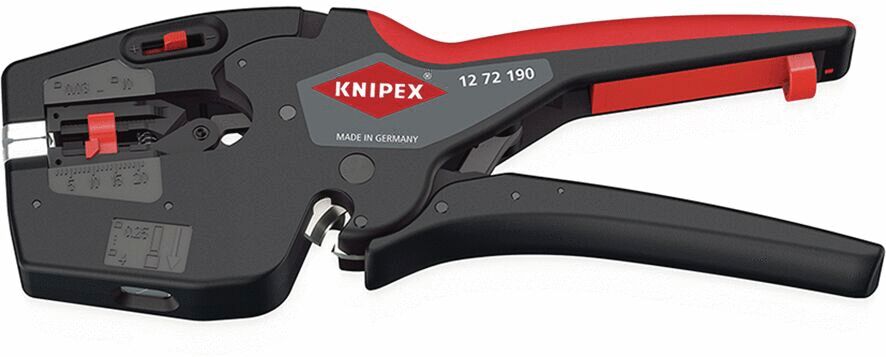

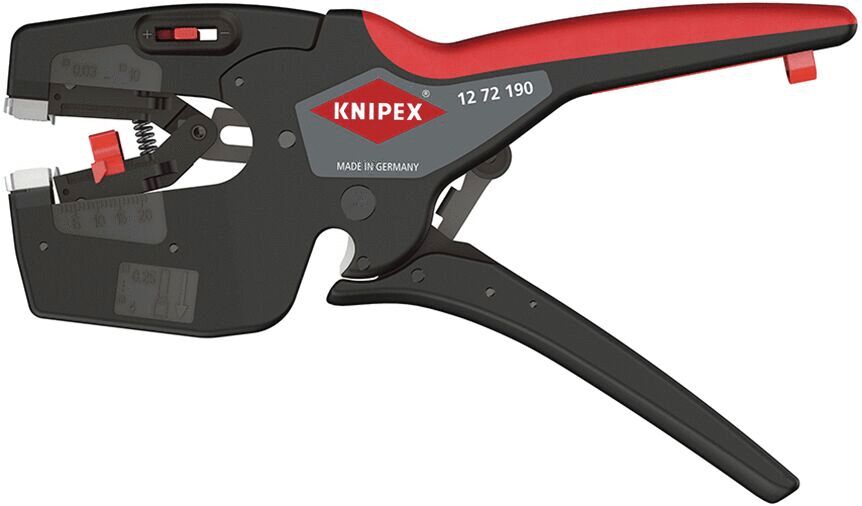

Stripping and crimping pliers

The wire stripping and crimping pliers efficiently combine the functions of stripping, crimping, and cutting in a robust tool. Equipped with non-slip, ergonomic dual-component handles, this tool allows for comfortable and safe handling. The housing is made of durable, fiberglass-reinforced plastic, offering high resistance while weighing only 170 g.

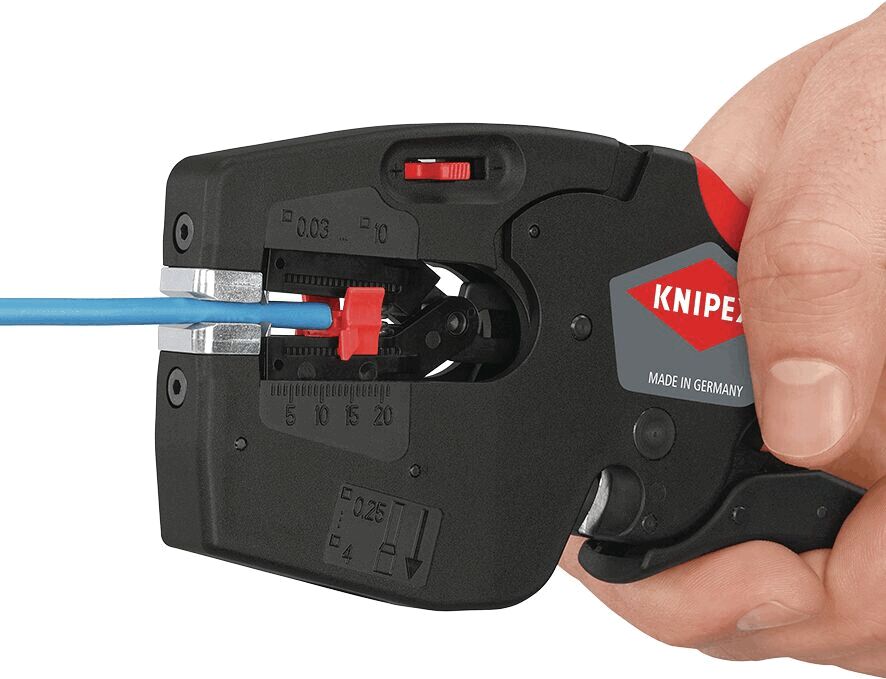

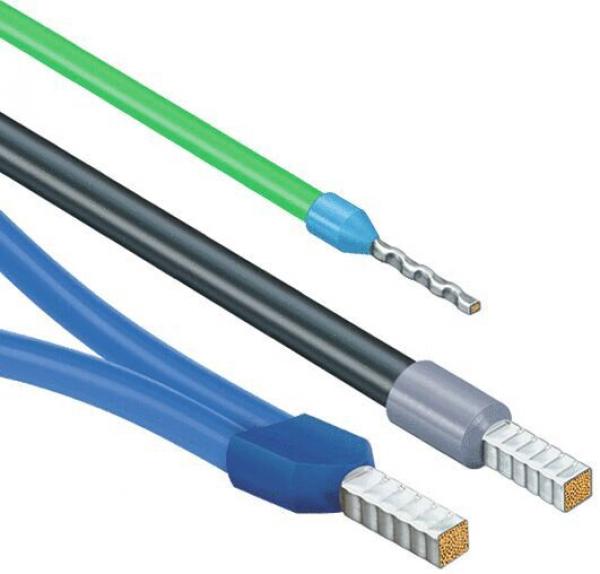

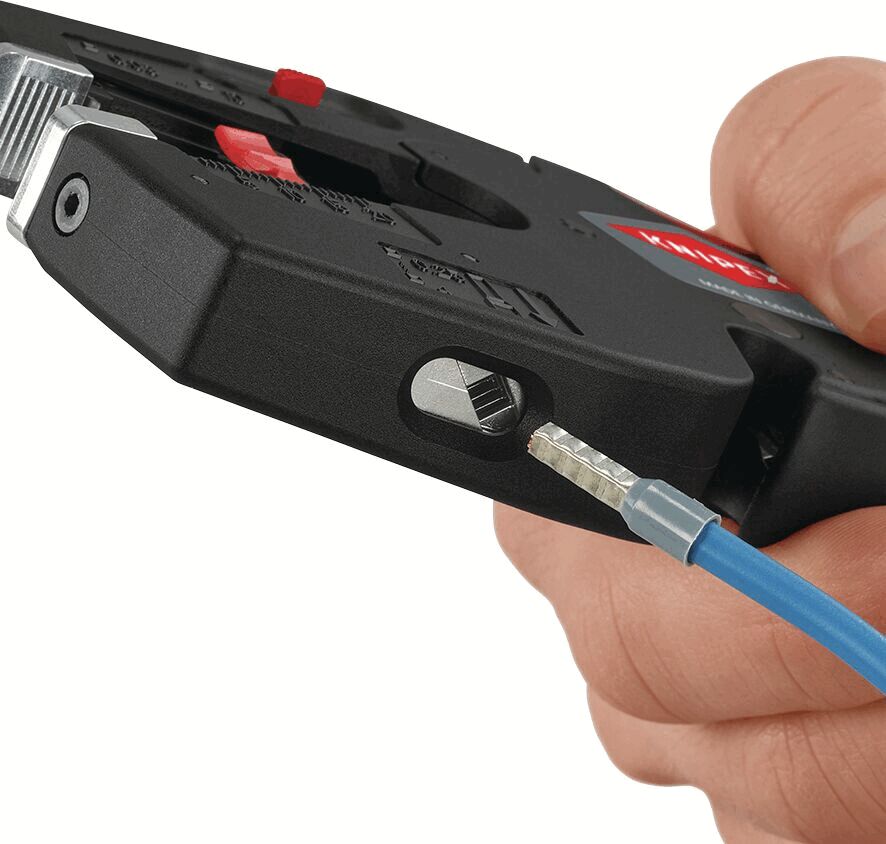

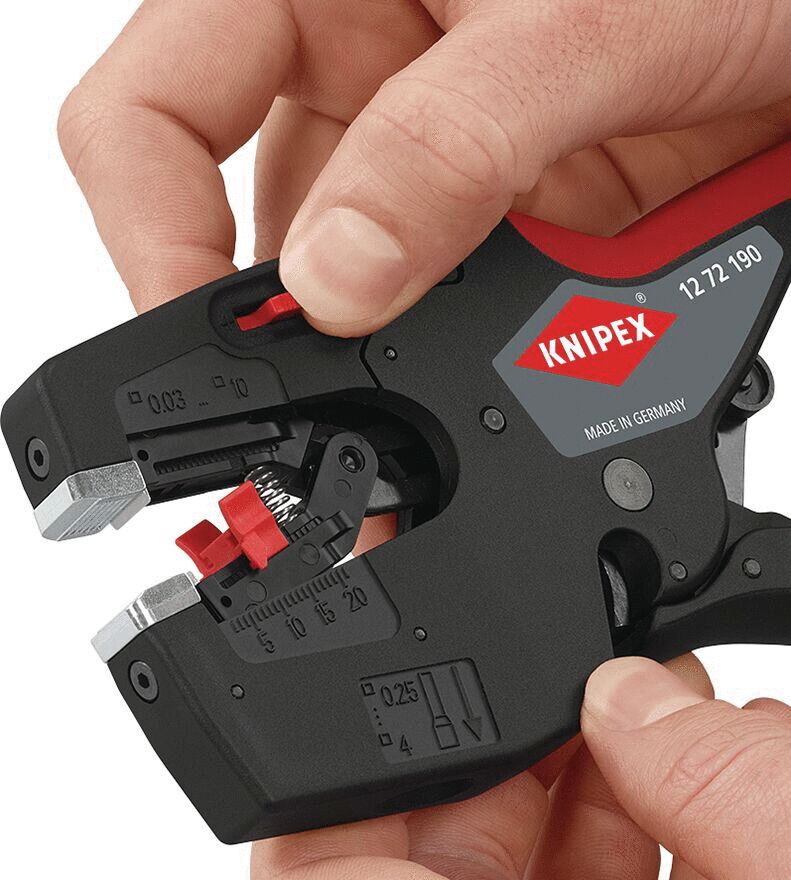

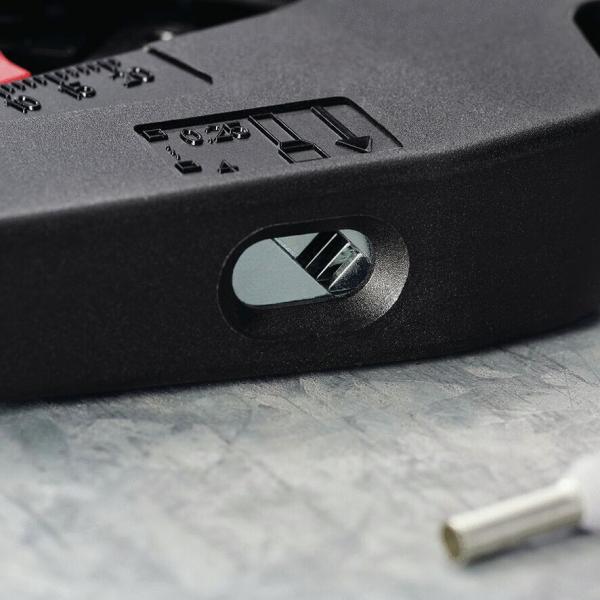

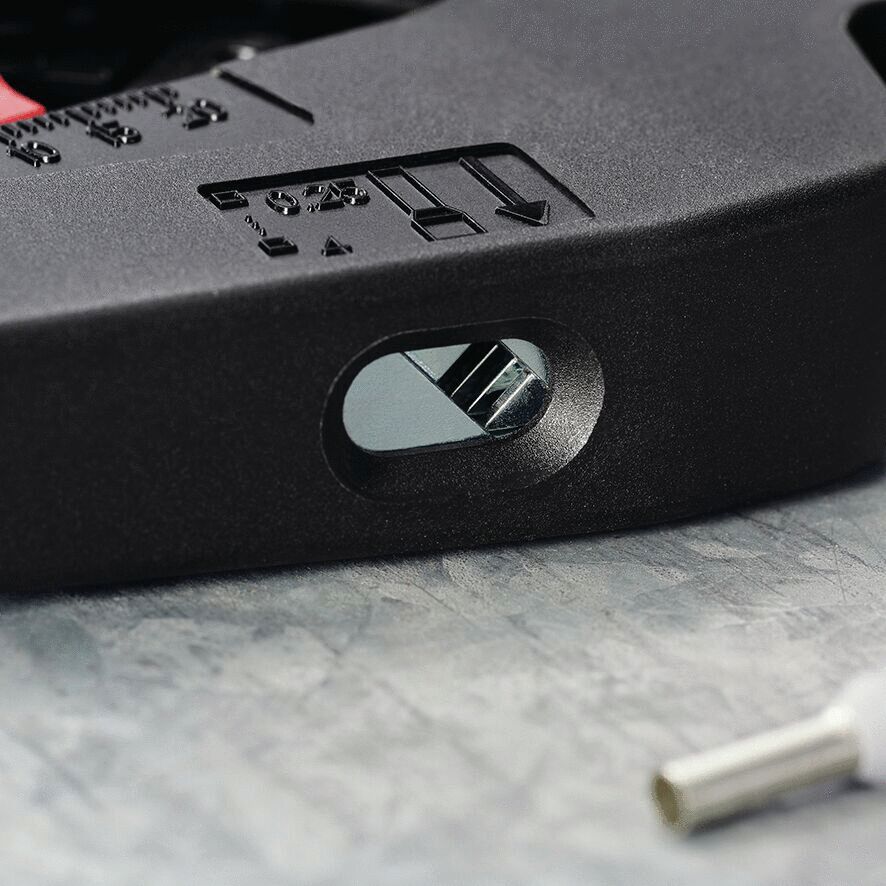

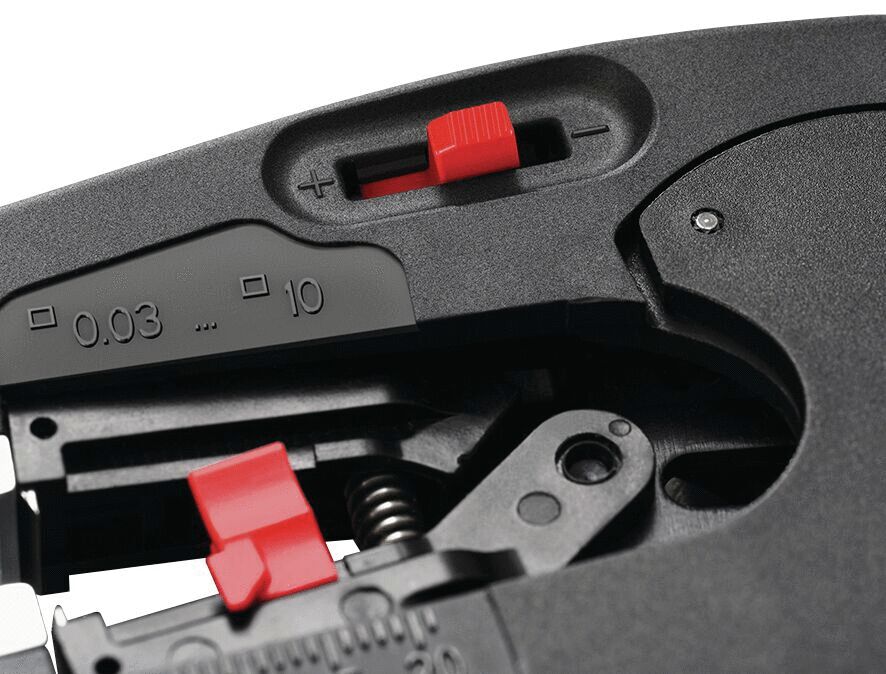

The pliers allow precise stripping with automatic size adjustment and fine tuning for flexible and solid conductors from 0.03 to 10 mm² (AWG 32 - 8). The integrated crimping function ensures uniform square crimping for ferrules according to DIN 46228 Part 1 + 4, with a capacity of up to 4 mm² and 2 x 2.5 mm². A mandatory lock secures the necessary contact pressure to consistently achieve high crimp quality.

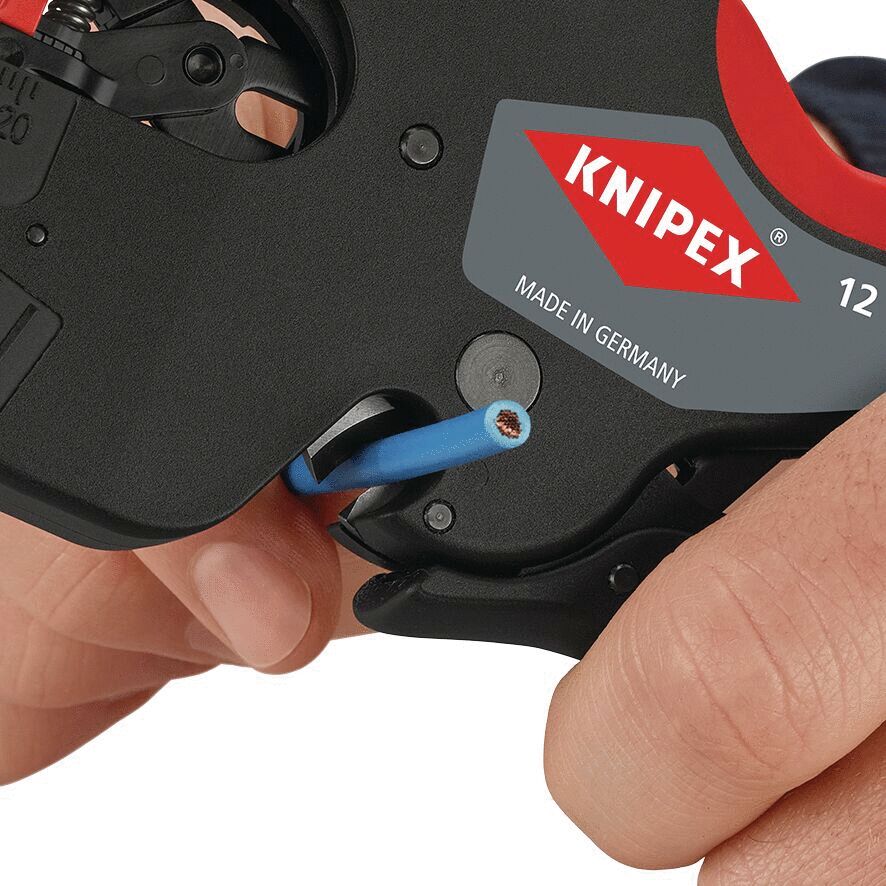

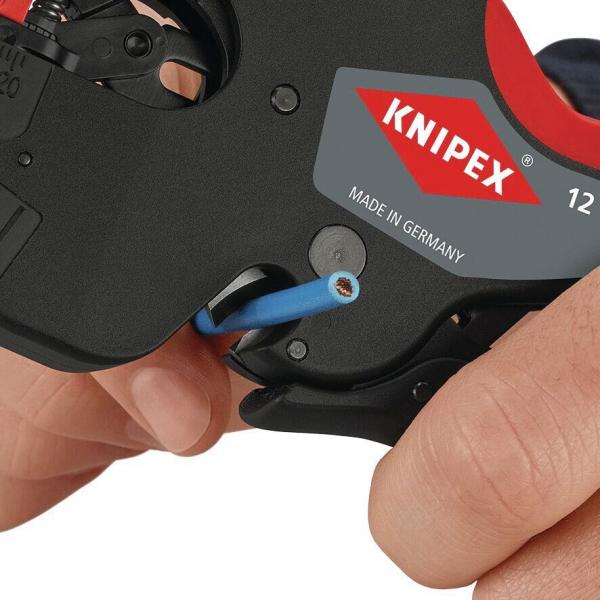

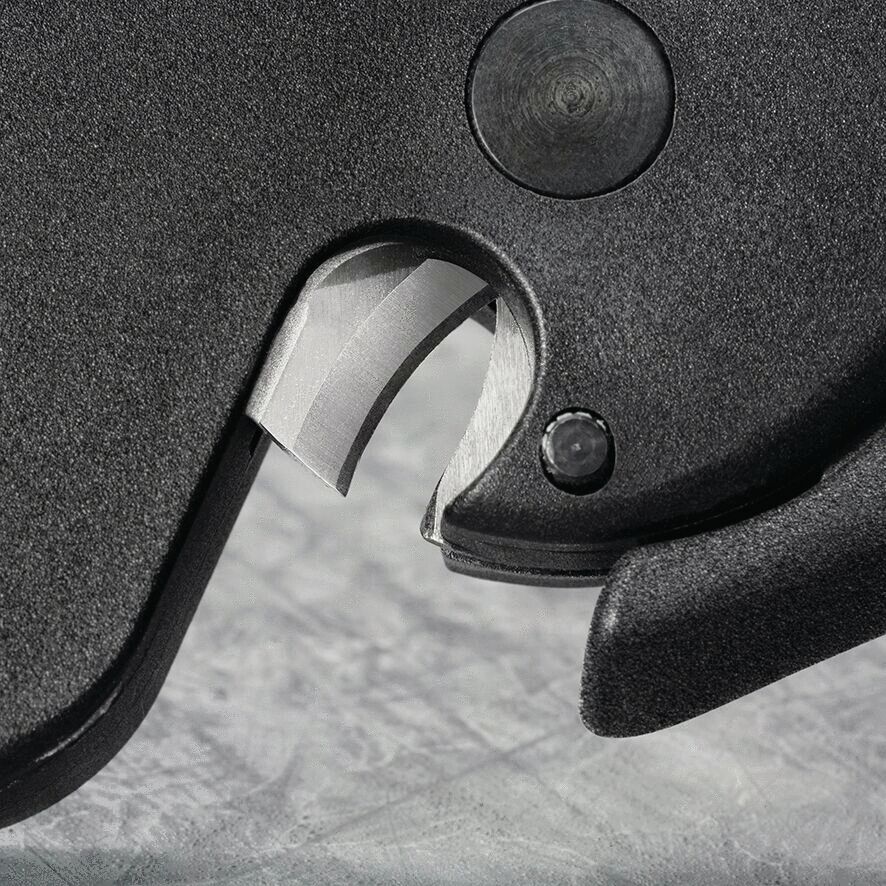

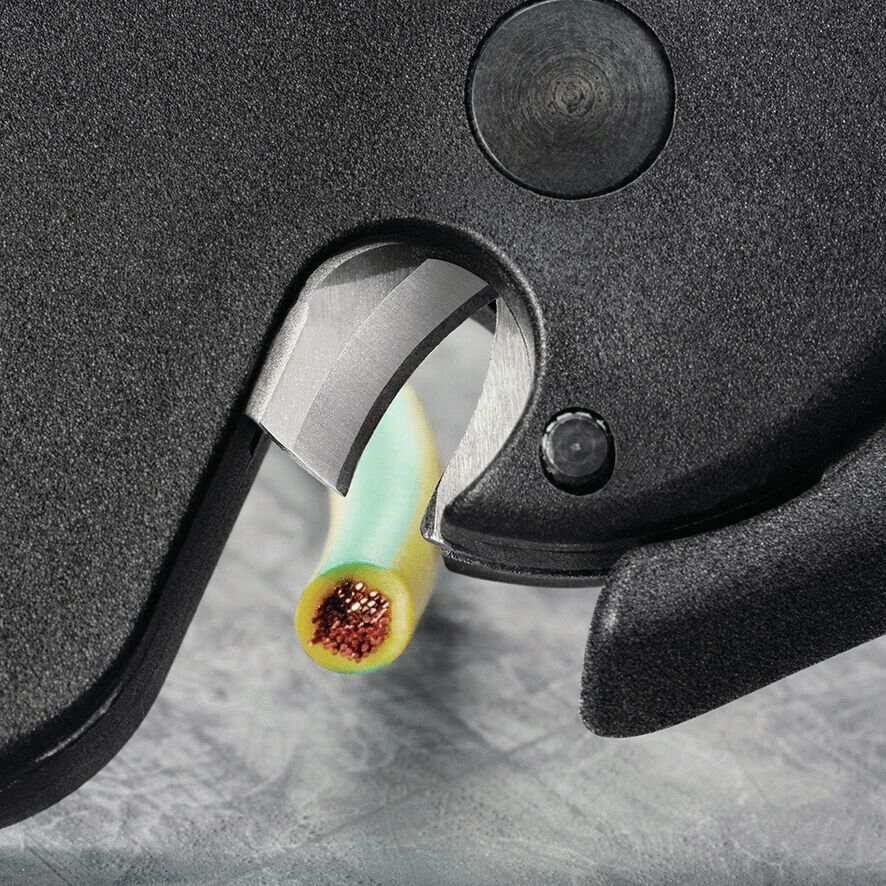

The pliers also feature a built-in cable cutter, which cleanly cuts fine-stranded Cu and Al conductors up to a diameter of 10 mm² (AWG 8). With its compact dimensions of 190 mm length, 17 mm width, and 110 mm height, the pliers are an indispensable tool for professional electrical installations in areas such as home installations, RV wiring, or wiring of PLC systems.
AWG
AWG
32 - 8
Capacity
Capacity
0.03 - 10 mm²
Max Ø soft
Max Ø soft
0.2-3.25 mm
Height
Height
110 mm
Length
Length
190 mm
Width
Width
17 mm
Material
Material
plastic / glass fiber reinforced
ESD
ESD
no
Weight
Weight
170 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Stripping and crimping pliers

Article image
Article description
AWG
Capacity
Max Ø soft
Height
Length
Width
Material
ESD
Weight
Price
Compare
K-1272.190 - Stripping and crimping pliers
K-1272.190
Stripping and crimping pliers
32 - 8
0.03 - 10 mm²
0.2-3.25 mm
110 mm
190 mm
17 mm
plastic / glass fiber reinforced
no
170 g
150.20 CHF
