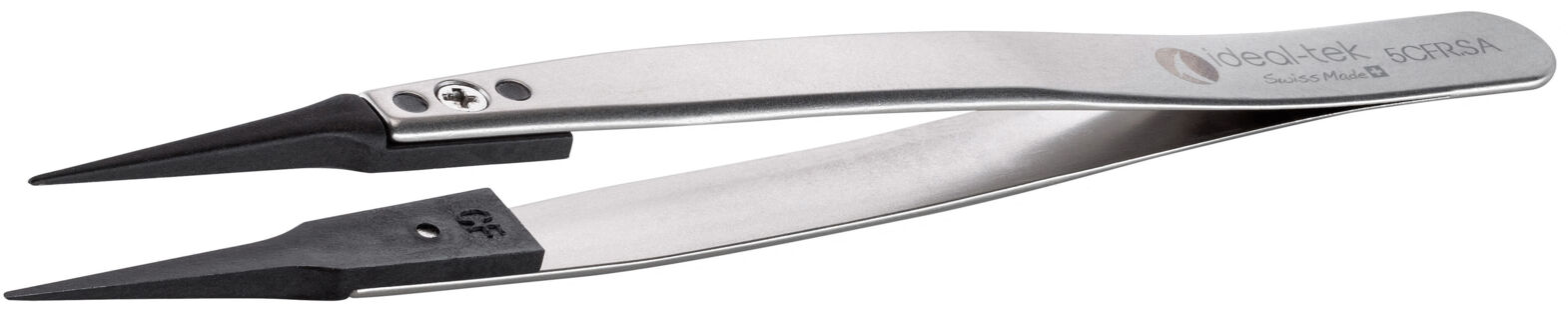

The image shows a fine stainless steel tweezer. It has sharp, narrow tips and a matte finish. The handles are slightly curved and provide a good grip.

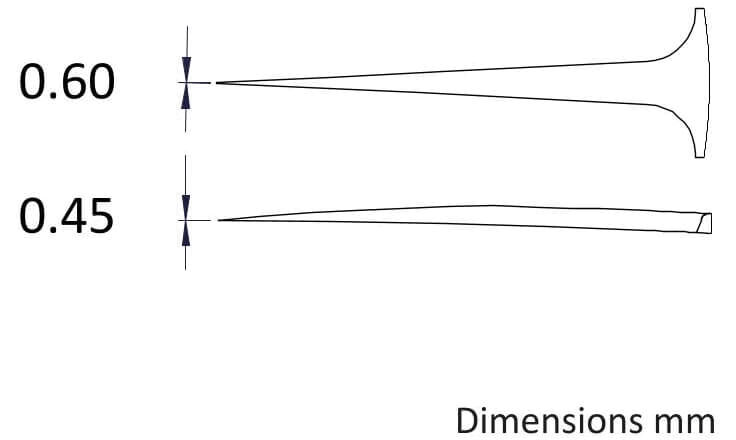

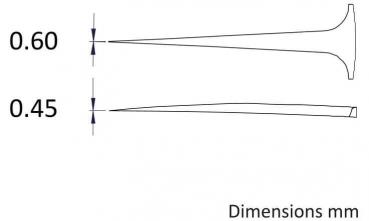

The image displays two vertical lines of varying widths: one measuring 0.60 mm and the other 0.45 mm. Below the lines, it reads "Dimensions mm". The lines are tapered at the ends.
Preview: The image shows a fine stainless steel tweezer. It has sharp, narrow tips and a matte finish. The handles are slightly curved and provide a good grip.
Preview: The image displays two vertical lines of varying widths: one measuring 0.60 mm and the other 0.45 mm. Below the lines, it reads "Dimensions mm". The lines are tapered at the ends.
ESD tweezers with exchangeable tip 5CFR.SA
(Product No.: I-5CFR.SA)
The image shows a fine stainless steel tweezer. It has sharp, narrow tips and a matte finish. The handles are slightly curved and provide a good grip.
The image displays two vertical lines of varying widths: one measuring 0.60 mm and the other 0.45 mm. Below the lines, it reads "Dimensions mm". The lines are tapered at the ends.
Mobile Preview: The image shows a fine stainless steel tweezer. It has sharp, narrow tips and a matte finish. The handles are slightly curved and provide a good grip.
Mobile Preview: The image displays two vertical lines of varying widths: one measuring 0.60 mm and the other 0.45 mm. Below the lines, it reads "Dimensions mm". The lines are tapered at the ends.
Notice / Inquire

ESD tweezers with exchangeable tip 5CFR.SA

dpvlink:
11788
Tweezer type:
tweezers with exchangeable tips
Tip form:
straight
Gripping surface:
smooth
Handle surface:
smooth
Tip type characteristics:
very fine, very sharp
Properties:
Further product information

19.75 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD tweezers with exchangeable tip 5CFR.SA

The ESD tweezer with interchangeable tip 5CFR.SA by Ideal-Tek is specifically designed for handling sensitive electronic components and devices. This tweezer is distinguished by its interchangeable plastic tips, which are reinforced with 30% carbon fiber to ensure high mechanical strength and low friction. The material composition guarantees excellent wear resistance as well as a lead-free and heat-stabilized construction up to 130°C for continuous use.
The tweezer offers maximum temperature resistance of 190°C for short periods and a surface resistance of 102 Ω. Its ESD properties make it ideal for areas such as micromechanics and electronics assembly in laboratories. The tips are very fine and sharp, facilitating the handling of scratch-sensitive materials like glass and ceramic substrates. However, note that the tweezer is not resistant to strong acids, alkalis, hot water, or steam.
Technical specifications include a length of 130 mm, a tip length of 25 mm, and a width of 10 mm with a weight of only 17.5 g. The smooth gripping and handling surface supports precise work without damaging the components.
Tweezer type
Tweezer type
tweezers with exchangeable tips
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Handle surface
Handle surface
smooth
Tip type characteristics
Tip type characteristics
very fine, very sharp
Height
Height
16 mm
Length
Length
130 mm
Thickness/diameter
Thickness/diameter
0.45 mm
Tip length
Tip length
25 mm
Tip width
Tip width
0.6 mm
Width
Width
10 mm
B [mm]
B [mm]
10 mm
Material
Material
stainless steel
Surface
Surface
sandblastered
Tip
Tip
Plastic
ESD
ESD
yes
Exchangeable tips
Exchangeable tips
yes
Weight
Weight
17.5 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Accessories

Spares

The image shows two black, pointed metal parts that are flat at the ends. Next to them are two silver screws. The parts could be part of a tool or accessory.
Preview: Replacement exchangeable tips A5CF
Preview: The image shows two pointed objects with different widths at their tips. The upper one has a width of 0.60 mm and the lower one has a width of 0.45 mm. Below it says
Replacement exchangeable tips A5CF
ESD Carbofib exchangeable tip A5CF
dpvlink
11854

5.85 CHF
Show product
The image shows two black pointed metal pieces, shaped like hooks, each with two indentations. Next to them are two small, round, silver screws.
Preview: Replacement exchangeable tips A5CP
Preview: The image shows two geometric lines of different widths: a thick line (0.60 mm) and a thin line (0.45 mm). Both lines are sharp and run vertically.
Replacement exchangeable tips A5CP
ESD plastic exchangeable tip A5CP
++ ideal-tek - Swiss made++
dpvlink
11854

6.65 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 396
Complete Catalog 2023 - 2024

Product Family

ESD Tweezers with exchangeable tips

These ESD tweezers with exchangeable tips make fine work easier than ever before. The tips are made of high-quality plastic and offer the perfect balance of durability and precision. They also guarantee maximum precision when working and ensure that even the smallest components can be handled effortlessly.

Tweezers with exchangeable plastic tips are versatile and suitable for a wide range of tasks. They are ideal for handling sensitive electronic components such as circuit boards and microchips. They are also suitable for work in jewelry making, medicine and life sciences.

  • Easy and quick replacement - so you always have the right tip for the job.
  • Correct alignment - the tips have 3 alignment points, ensuring that they are always correctly aligned.
  • Cost-effective - plastic tips are cheaper than ceramic tips, making them a good choice for budget-conscious users.
