Main page » Products » Tweezers » Individual tweezers » Ergonomic tweezers 3.SA.DN

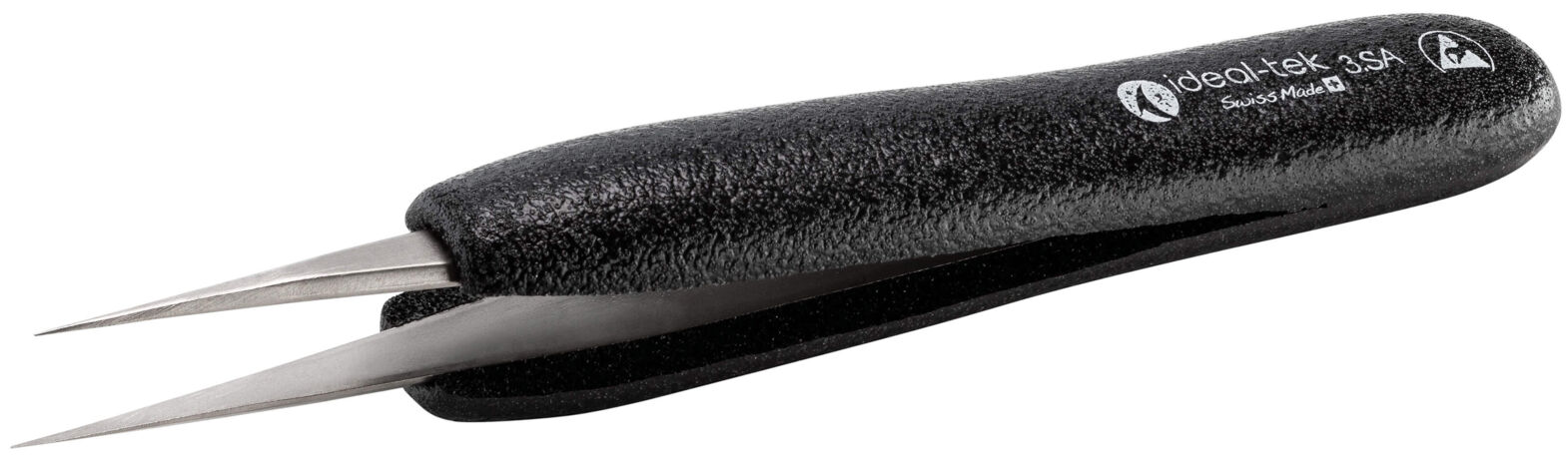

Preview: The image shows a pair of tweezers with a black, non-slip grip and two pointed, narrow metal tines. The tines are slightly curved and ideal for precise tasks.

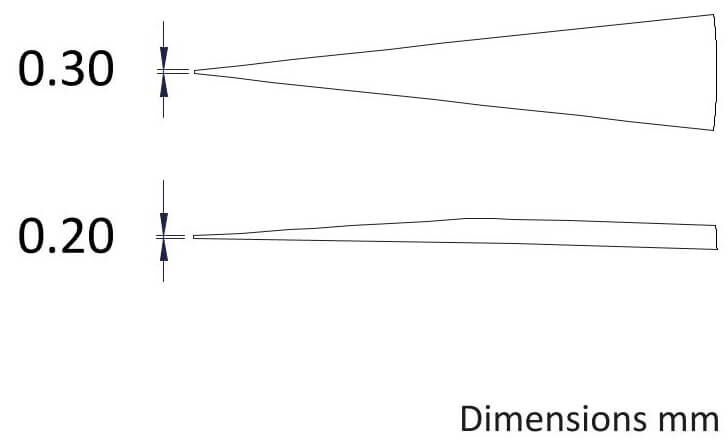

Preview: The image shows two geometric shapes that taper to a point. The upper shape has a width of 0.30 mm, the lower one 0.20 mm. Both are arranged and labeled from left to right.

Ergonomic tweezers 3.SA.DN

(Product No.: I-3.SA.DN)

Mobile Preview: The image shows a pair of tweezers with a black, non-slip grip and two pointed, narrow metal tines. The tines are slightly curved and ideal for precise tasks.

Mobile Preview: The image shows two geometric shapes that taper to a point. The upper shape has a width of 0.30 mm, the lower one 0.20 mm. Both are arranged and labeled from left to right.

(Product No.: I-3.SA.DN)

Ergonomic tweezers 3.SA.DN

Name: Ergonomic tweezers 3.SA.DN
SKU: I-3.SA.DN
Price: 17.90 CHF
Availability: InStock

ArticleNo: I-3.SA.DN

dpvlink:

12475

Tweezer type:

universal tweezers

Tip form:

straight

Gripping surface:

smooth

Handle surface:

serrated

Tip type characteristics:

fine, pointed

Properties:

Further product information

17.90 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

Ergonomic tweezers 3.SA.DN

The Ergonomic Tweezers 3.SA.DN manufactured by ideal-tek are distinguished by their precision and high-quality craftsmanship. This universal tweezer is specifically designed for handling electronic components, supported by its ESD properties through a PVC handle with an ESD foam surface. This ergonomically shaped handle not only offers enhanced comfort but also ensures safe handling due to its ribbed grip surface.
The straight stainless steel tip is fine and pointed, enabling precise work. The tip measures only 0.3 mm in width and 0.2 mm in thickness, making it ideal for delicate tasks. With a total length of 120 mm and a weight of 18 g, this tweezer is lightweight and easy to handle.
The anti-magnetic properties of the tip complement the dissipative features, ensuring safe use when dealing with sensitive electronic components. The tweezer is Swiss Made, thereby guaranteeing the highest quality standards.

Details

Tweezer type Tweezer type: universal tweezers
Tip form Tip form: straight
Gripping surface Gripping surface: smooth
Handle surface Handle surface: serrated
Tip type characteristics Tip type characteristics: fine, pointed
Height Height: 17 mm
Length Length: 120 mm
Thickness/diameter Thickness/diameter: 0.2 mm
Tip width Tip width: 0.3 mm
Width Width: 15 mm
B [mm] B [mm]: 8 mm
Material Material: PVC foam
Surface Surface: ESD-foam / anti-magnetic
Tip Tip: stainless steel
ESD ESD: yes
Weight Weight: 18 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Smooth gripping surface

Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 402

Complete Catalog 2023 - 2024

Product Family

Ideal-tek Ergonomic tweezers of PVC foam (DN)

Ideal-tek foam tweezers feature ergonomic grip pads made of ESD black foam (DN), which increase user comfort and reduce finger strain when working with ESD-sensitive components or small static objects in various industries. As they are electrically static and dissipative, precision tweezers with soft foam are ideal for repetitive picking and positioning during sample preparation and for working with electronics.

The very soft and elastic foam is tear-resistant, abrasion-resistant and resistant to chemicals (oils, greases, fuels, acids, cleaning agents and soaps, alcohols). Ergonomic foam tweezers offer a longer service life and at the same time increase comfort for fingers and hands.
