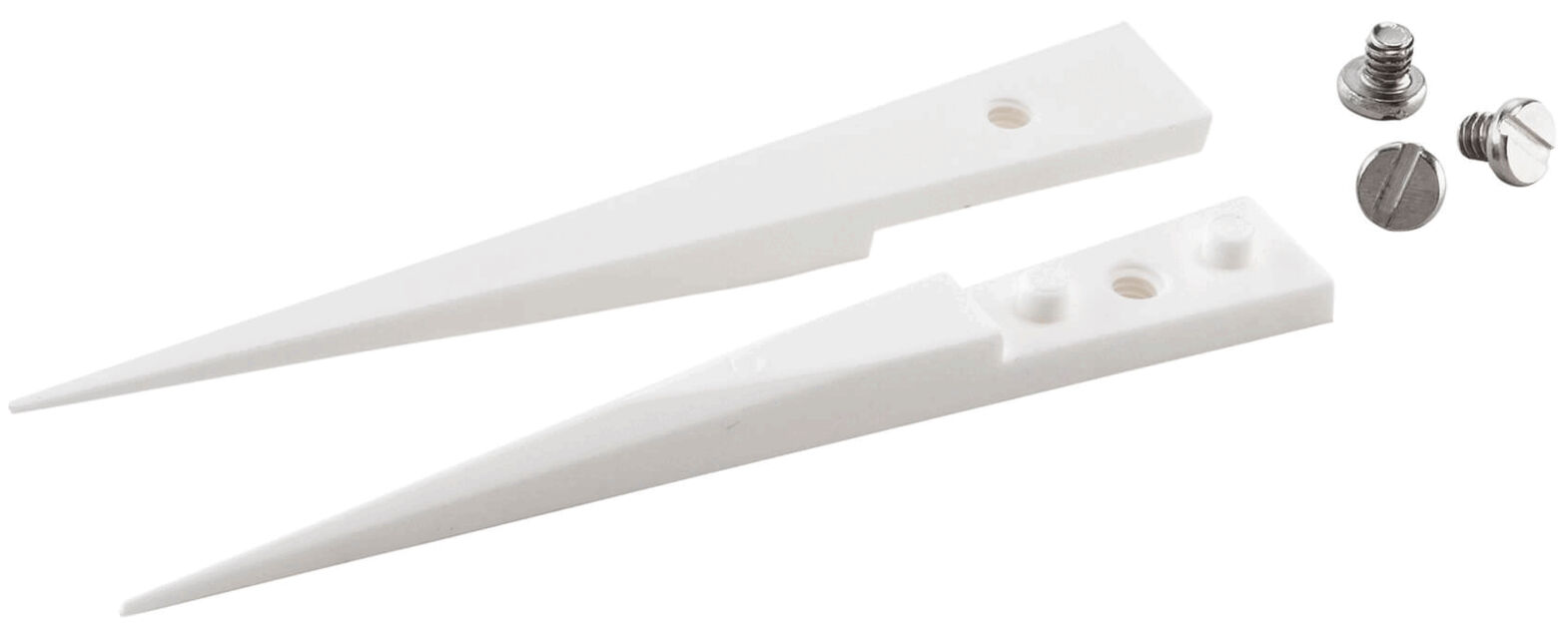

The image shows two white, pointed parts, similar to wedges, and a few screws with corresponding heads. Each part has a hole for attachment.
The image displays a technical drawing with two views of an object. The dimensions 0.30 mm and 0.50 mm are indicated at the top and bottom, respectively. Narrow, pointed shapes are visible.
Preview: The image shows two white, pointed parts, similar to wedges, and a few screws with corresponding heads. Each part has a hole for attachment.
Preview: The image displays a technical drawing with two views of an object. The dimensions 0.30 mm and 0.50 mm are indicated at the top and bottom, respectively. Narrow, pointed shapes are visible.
Exchangeable ceramic tips A73MZ
(Product No.: I-A73MZ)
The image shows two white, pointed parts, similar to wedges, and a few screws with corresponding heads. Each part has a hole for attachment.
The image displays a technical drawing with two views of an object. The dimensions 0.30 mm and 0.50 mm are indicated at the top and bottom, respectively. Narrow, pointed shapes are visible.
Mobile Preview: The image shows two white, pointed parts, similar to wedges, and a few screws with corresponding heads. Each part has a hole for attachment.
Mobile Preview: The image displays a technical drawing with two views of an object. The dimensions 0.30 mm and 0.50 mm are indicated at the top and bottom, respectively. Narrow, pointed shapes are visible.
Notice / Inquire

Exchangeable ceramic tips A73MZ

dpvlink:
11600
Tip form:
straight
Gripping surface:
smooth
Tip type characteristics:
fine, pointed
Properties:
Further product information

28.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Exchangeable ceramic tips A73MZ

The ceramic interchangeable tip A73MZ from ideal-tek is a high-quality tweezer with a tip made of Zirconia Toughened Alumina (ZTA), an advanced ceramic blend that combines high strength and hardness. This tip is characterized by its low density, lack of porosity, and excellent abrasion resistance. It also offers outstanding thermal stability up to 1400°C and shock resistance of 325°C, making it ideal for soldering processes and handling components under extreme conditions.
The tip is straight, fine, and pointed, with a width of 6.5 mm and a tip width of only 0.3 mm. The thickness is 0.5 mm, the height 3 mm, and the length 50 mm. Despite the robust material properties, the tip weighs only 3 g. Its Vickers hardness of 1700 HV, a volume resistance of over 10^12 Ω, and the property of being electrically insulating underscore its versatile applicability and reliability in various industrial applications.
This product is an excellent choice for professionals working in environments where precision and durability under high temperatures and corrosive conditions are required.
Tip form
Tip form
straight
Gripping surface
Gripping surface
smooth
Tip type characteristics
Tip type characteristics
fine, pointed
Height
Height
3 mm
Length
Length
50 mm
Thickness/diameter
Thickness/diameter
0.5 mm
Tip width
Tip width
0.3 mm
Width
Width
6.5 mm
Material
Material
Zirconia ceramic
Tip
Tip
Ceramic
ESD
ESD
no
Weight
Weight
3 g
Pictograms
Smooth gripping surface
Smooth gripping surfaces leave no marks on sensitive materials. They are ideal for fine work and gripping single wires or delicate surfaces.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 397
Complete Catalog 2023 - 2024

Product Family

Exchangable ceramic tips for tweezers with exchangeable tip

The ceramic exchangeable tips are made of zirconia-reinforced aluminum oxide (ZTA), an advanced material known for its unique combination of strength (due to zirconia) and hardness (due to aluminum oxide). This composition results in forceps tips with relatively low density, no open porosity and a very hard surface that ensures exceptional abrasion and wear resistance. The tweezers have excellent flexural strength and fracture toughness, making them ideal for intensive use.



The thermal properties of these tweezers tips are remarkable and offer high temperature stability. They are highly corrosion resistant and resistant to most chemicals, making them suitable for use in environments with soldering processes and when handling components during thermal and chemical processes.


Article image
Article description
Tip form
Gripping surface
Tip type characteristics
Price
Compare
I-A2AMZ - Exchangeable ceramic tips A2AMZ
I-A2AMZ
Exchangeable ceramic tips A2AMZ
straight
smooth
fine, round, flat
28.35 CHF
I-A71MZ - Exchangeable ceramic tips A71MZ
I-A71MZ
Exchangeable ceramic tips A71MZ
straight
smooth
fine, beveled
28.35 CHF
I-A72MZ - Exchangeable ceramic tips A72MZ
I-A72MZ
Exchangeable ceramic tips A72MZ
straight
smooth
fine, pointed, strong
28.35 CHF
I-A73MZ - Exchangeable ceramic tips A73MZ
I-A73MZ
Exchangeable ceramic tips A73MZ
straight
smooth
fine, pointed
28.35 CHF
I-A74MZ - Exchangeable ceramic tips A74MZ
I-A74MZ
Exchangeable ceramic tips A74MZ
straight
smooth
fine, pointed, strong
28.35 CHF
