ESD Light duty swivel castor with bolt hole 650, load capacity 125 kg

(Product No.: 603.075.ELS)

ESD Light duty swivel castor with bolt hole 650, load capacity 125 kg

Name: ESD Light duty swivel castor with bolt hole 650, load capacity 125 kg
SKU: 603.075.ELS
Price: 12.10 CHF
Availability: InStock

ArticleNo: 603.075.ELS

ESD Light duty swivel castor with bolt hole 650, load capacity 125 kg

dpvlink:

8055

Load capacity (static):

125 kg

Wheel Ø:

75 mm

Total height:

98 mm

Properties:

Further product information

12.10 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

ESD Light duty swivel castor with bolt hole 650, load capacity 125 kg

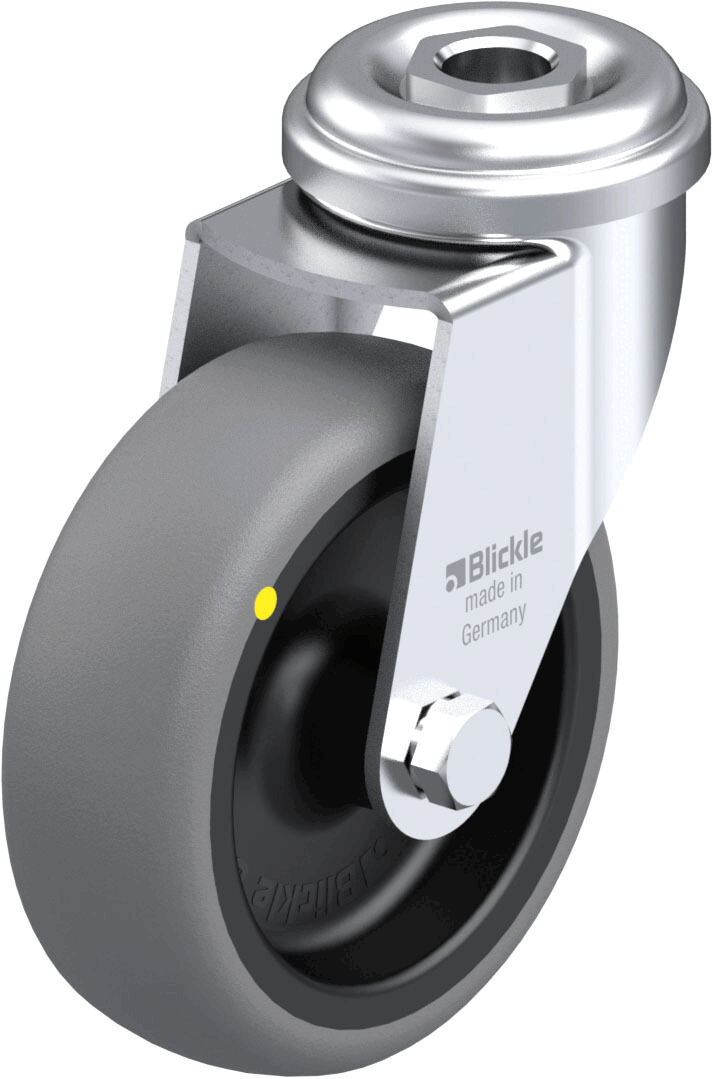

The ESD device caster wheel with back hole 650 from Blickle is characterized by a high load capacity of 125 kg and comprehensive adaptation to technical requirements. The housing of the LRA series is made of galvanically galvanized sheet steel, blue passivated and Cr6-free, which guarantees a long service life and minimal swivel bearing play. The double ball bearing in the swivel head allows for smooth running.
The wheel of the TPA series consists of a high-quality polypropylene wheel body and a tread made of thermoplastic rubber elastomer (TPE), which has a hardness of 85 Shore A and is non-marking and oil-containing. This combination offers very high chemical resistance and a temperature resistance from -20 °C to +60 °C, with reduced load capacity above +30 °C.
The caster meets the ESD standard DIN EN 61340-5-1, is conductive, and offers a static load capacity of 125 kg. With a wheel diameter of 75 mm, a total height of 98 mm, and an offset of 29 mm, this model is ideal for use in ESD-sensitive areas. The caster is unbraked and has a back hole of 11 mm diameter for easy attachment.
